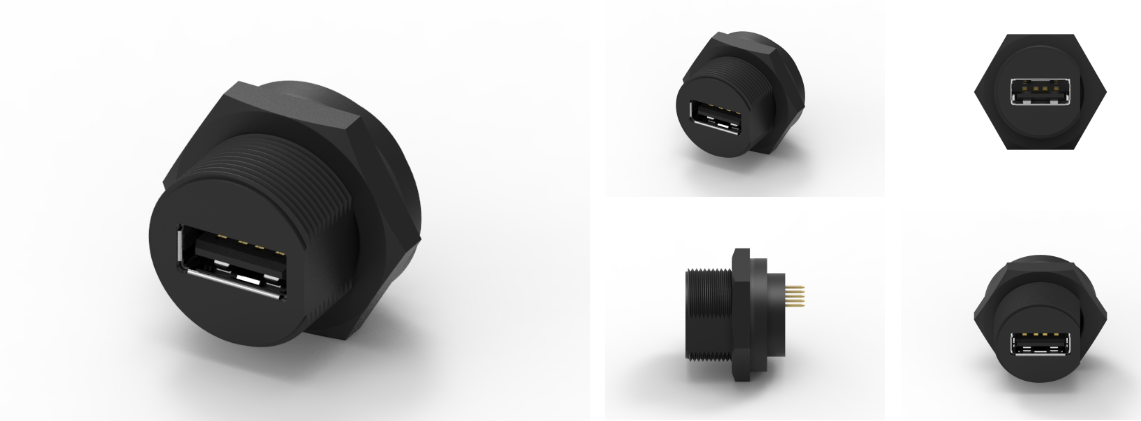

品名：USB 母头4PIN Type A前锁防水连接器(螺牙式)
1.材料：
1-1.外壳：PBT UL94V0；颜色：黑色
1-2.触点：磷青铜
1-3.外壳：PA66 UL94V0；颜色：黑色，
1-4.圆形：SUS
1-5.垫片：硅；颜色：灰黑色。
1-6. 螺母：PA66
2.完成：
2-1.触点：镀金
2-2.圆形：镀镍
3.电气规格：
3-1.额定电流：1.5A
3-2.额定电压：250V AC
3-3.防水等级：IPX7
4.环境：
4-1.工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
USB 母头 4PIN Type A 前锁防水连接器（螺牙式）
USB 母头 4PIN Type A 前锁防水连接器（螺牙式） 是一种适用于严酷环境的高性能连接器，设计上注重防水、防尘及稳定性，特别适合在需要可靠连接的场合使用。其螺牙式锁定机制确保连接的稳固性，避免因震动或外力导致的松动。以下是该连接器的详细说明。
主要特点
1.防水防尘设计：
IP67/IP68防护等级：能够抵御水和灰尘的侵入，适合在高湿度、粉尘多的环境中使用。
密封结构：连接器内部设计有密封圈，确保在连接时保持良好的防护性能。
2.螺牙式锁定：
牢固性增强：螺牙式锁定机制提供了更强的固定力，适用于震动较大的环境，确保连接稳定。
安全连接：用户可在确保连接牢固的情况下轻松旋紧，增加了操作的安全性。
3.4PIN 标准：
兼容性：符合 USB 4PIN 接口标准，适用于广泛的设备，包括传感器、工业控制设备和医疗设备。
数据传输：高效稳定的传输特性，适合数据依赖性强的应用。
4.耐用材料：
高强度构造：连接器采用耐磨损和抗腐蚀的材料制造，能够承受各种环境因素。
长寿命设计：经过优化的结构，使得连接器在频繁使用下也能保持良好性能。
应用领域
1.工业自动化：广泛应用于工业设备、PLC控制系统等领域，确保在苛刻环境中的稳定运行。
2.户外设备：适合野外探测器、环境监测仪器等设备的连接，提升设备的可靠性。
3.交通运输：用于汽车电子系统、导航设备、数据记录仪等，确保安全的数据传输。
4.医疗设备：可用于医疗监测和诊断设备，确保数据的准确性和稳定性。
使用注意事项
1.连接前检查：在连接时，确保接头和接口干燥清洁，避免污垢影响连接质量。
2.正确操作：在进行螺纹锁定时，要确保均匀施力，以避免损伤接口。
3.定期维护：定期检查连接器的密封性和完整性，及时替换损坏的部分。
4.清洁注意：保持连接器外部清洁并远离化学品，以延长使用寿命。
总结
USB 母头 4PIN Type A 前锁防水连接器（螺牙式） 是一款高效、可靠的连接器，非常适合在严苛的环境条件下使用。其出色的防水防尘特性、牢固的螺牙锁定机制和适用的 4PIN 标准，使其成为工业、户外和医疗设备等领域的理想选择。如需更多详情或进行采购，欢迎联系技术员！
Product Name: USB Female 4PIN Type A Front Lock Waterproof Connector (Screw Thread Type)
1. Materials:
1-1. Shell: PBT UL94V0； Color: Black
1-2. Contact: phosphor bronze
1-3. Shell: PA66 UL94V0； Color: Black,
1-4. Circular: SUS
1-5. Gasket: Silicon; Color: Grey black.
1-6. Nut: PA66
2. Complete:
2-1. Contact: Gold plating
2-2. Circular: Nickel plated
3. Electrical specifications:
3-1. Rated current: 1.5A
3-2. Rated voltage: 250V AC
3-3. Waterproof grade: IPX7
4. Environment:
4-1. Working temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
USB female 4PIN Type A front lock waterproof connector (screw type)
The USB female 4PIN Type A front lock waterproof connector (screw type) is a high-performance connector suitable for harsh environments. Its design emphasizes waterproof, dustproof, and stability, making it particularly suitable for use in situations that require reliable connections. Its screw locking mechanism ensures the stability of the connection and avoids loosening caused by vibration or external forces. The following is a detailed description of the connector.
main features
1. Waterproof and dustproof design:
IP67/IP68 protection level: able to resist the intrusion of water and dust, suitable for use in high humidity and dusty environments.
Sealing structure: The connector is designed with a sealing ring inside to ensure good protective performance during connection.
2. Screw lock:
Enhanced firmness: The screw locking mechanism provides stronger fixing force, suitable for environments with high vibration, ensuring stable connection.
Secure Connection: Users can easily tighten the connection while ensuring a secure connection, increasing operational security.
3.4 PIN standard:
Compatibility: Compliant with the USB 4PIN interface standard, suitable for a wide range of devices, including sensors, industrial control equipment, and medical devices.
Data transmission: Efficient and stable transmission characteristics, suitable for applications with strong data dependency.
4. Durable materials:
High strength construction: The connector is made of wear-resistant and corrosion-resistant materials, which can withstand various environmental factors.
Long life design: The optimized structure ensures that the connector maintains good performance even under frequent use.
application area
1. Industrial automation: widely used in industrial equipment, PLC control systems and other fields to ensure stable operation in harsh environments.
2. Outdoor equipment: Suitable for connecting field detectors, environmental monitoring instruments, and other equipment to improve equipment reliability.
3. Transportation: Used for automotive electronic systems, navigation devices, data recorders, etc., to ensure secure data transmission.
4. Medical equipment: can be used for medical monitoring and diagnostic equipment to ensure the accuracy and stability of data.
Precautions for use
1. Pre connection inspection: During connection, ensure that the joints and interfaces are dry and clean to avoid dirt affecting the quality of the connection.
2. Correct operation: When locking the thread, ensure even application of force to avoid damaging the interface.
3. Regular maintenance: Regularly check the sealing and integrity of the connector, and replace damaged parts in a timely manner.
4. Cleaning precautions: Keep the exterior of the connector clean and away from chemicals to extend its service life.
summary
The USB female 4PIN Type A front lock waterproof connector (screw type) is an efficient and reliable connector, perfect for use in harsh environmental conditions. Its excellent waterproof and dustproof properties, sturdy screw locking mechanism, and applicable 4PIN standard make it an ideal choice for industrial, outdoor, and medical equipment fields. For more details or procurement, please feel free to contact our technicians!
