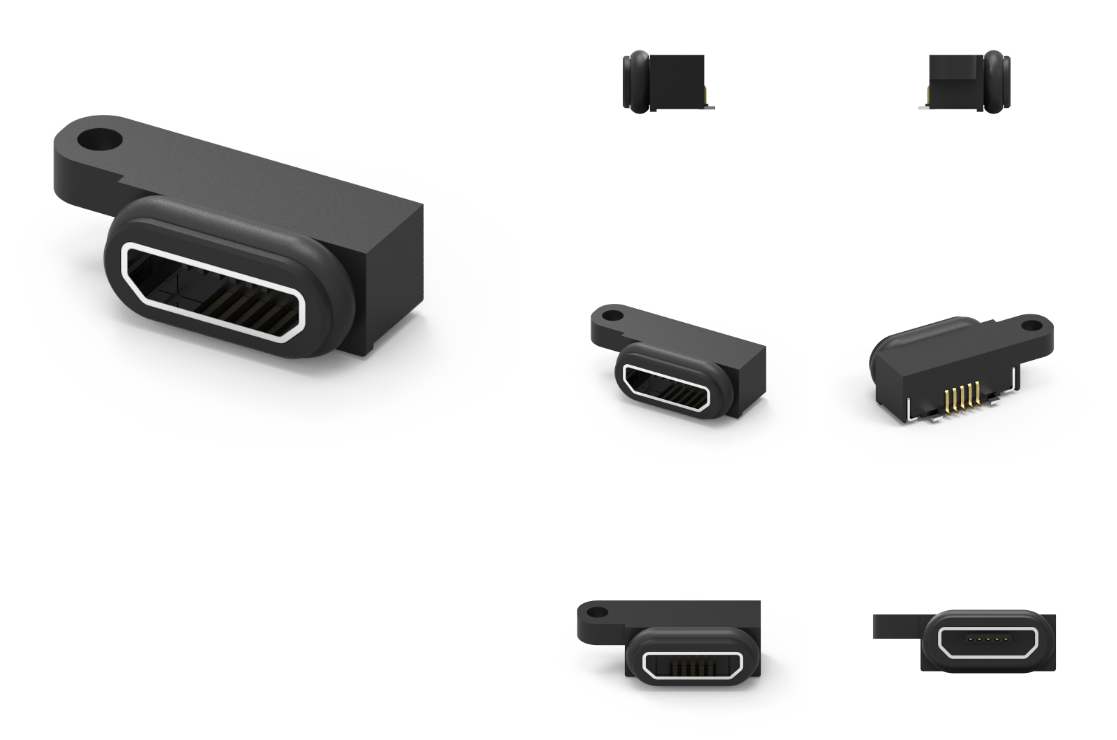

品名：Micro USB 母头5PIN B 防水连接器
注：
1.材料：
1-1. 外壳：LCP UL94V-0；颜色：黑色
1-2.触点：磷青铜
1-3. 外壳：不锈钢
1-4.0-RING：硅
1-5.衬垫：黄铜
2.完成：
2-1.触点：触点面积：金10u”
金色闪光
下方：镍50u”
2-2.外壳：哑光镀锡
2-3. 衬垫：哑光镀锡
3.电气规格：
3-1.触点电流额定值：1.8A（仅引脚1和5）；其他0.5A（仅引脚2、3和4）
3-2.触点额定电压：30V
3-3.接触电阻：最大30m欧姆
3-4.绝缘电阻：直流500V时最小100M欧姆。
3-5.电介质耐受电压：交流100V交流电/1分钟10mA
3-6.防水：IPX7
4.环境：
4-1.工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


Micro USB 母头 5PIN B 防水连接器概述
Micro USB 母头 5PIN B 防水连接器是一种广泛使用的小型 USB 连接器，设计用于数据传输和充电，特别是在移动设备、便携式设备和各种电子产品中。其防水设计使其可以在潮湿或恶劣环境下使用，提供稳定的连接性能。

主要特点
1.防水防尘设计：
防护等级：通常具有 IP67 或更高的防护等级，能够有效防止水和灰尘的侵入，适合户外和工业环境使用。
密封结构：配备优质防水密封圈，有效保护电气连接部件，确保其在潮湿条件下安全可靠。

2.小巧高效：
紧凑设计：Micro USB 尺寸小巧，占用空间少，适合紧凑型设备。
低功耗：适合用于移动设备及其他需要低功耗的应用，满足现代应用的需求。

3.兼容性：
数据传输：支持 USB 2.0 标准的数据传输速率，满足大多数设备的数据交互要求。
广泛应用：与许多传统 USB 设备兼容，广泛应用于智能手机、平板电脑、充电器和其他数码产品中。

4.耐用性：
材质：采用耐用的塑料和金属材料，具备良好的抗冲击性和耐用性，确保在频繁插拔和各种操作条件下保持稳定性能。

应用领域
1.消费电子：智能手机、平板电脑、电子书等移动设备的充电和数据传输。

2.工业设备：用于工业自动化设备、传感器和数据采集装置的电源和信号传输。

3.汽车应用：在汽车内饰中提供电力和数据连接，适用于现代汽车的娱乐系统和导航设备。

4.医疗设备：在医疗设备中，由于其防水性能，适合用于外科工具和监控设备。

使用注意事项
1.确保密封性：在连接和拆卸时，检查防水密封圈是否完好，以保证其防水性能。

2.避免过载：遵循额定电流和电压使用连接器，避免因过载导致设备损坏。

3.定期检查：定期检查连接器，并确保其表面及接口无污垢和损坏，保证持续良好的连接状态。

4.安装时注意方向：连接时注意不要用力过猛，以免造成连接器损坏或接触不良。

总结
Micro USB 母头 5PIN B 防水连接器以其卓越的防水性能、紧凑设计和高兼容性，成为现代电子设备中不可或缺的连接解决方案。如果您对该产品有任何问题或需要进一步的信息，欢迎联系技术员！



Product Name: Micro USB Female 5PIN B Waterproof Connector
Note:
1. Materials:
1-1.  Shell: LCP UL94V-0； Color: Black
1-2. Contact: phosphor bronze
1-3.  Shell: Stainless steel
1-4.0-RING: Silicon
1-5. Pad: Brass
2. Complete:
2-1. Contact: Contact area: Gold 10u "
Golden flash
Below: Nickel 50u
2-2. Shell: Matte tin plated
2-3.  Pad: Matte tin plated
3. Electrical specifications:
3-1. Contact current rating: 1.8A (only pins 1 and 5); Other 0.5A (only pins 2, 3, and 4)
3-2. Contact rated voltage: 30V
3-3. Contact resistance: maximum 30m ohms
3-4. Insulation resistance: Minimum 100M ohms at 500V DC.
3-5. Dielectric withstand voltage: AC 100V AC/1 minute 10mA
3-6. Waterproof: IPX7
4. Environment:
4-1. Working temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


Overview of Micro USB Female 5PIN B Waterproof Connector
The Micro USB female 5PIN B waterproof connector is a widely used small USB connector designed for data transmission and charging, especially in mobile devices, portable devices, and various electronic products. Its waterproof design allows it to be used in humid or harsh environments, providing stable connection performance.

main features
1. Waterproof and dustproof design:
Protection level: It usually has a protection level of IP67 or higher, which can effectively prevent the intrusion of water and dust, suitable for outdoor and industrial environments.
Sealing structure: equipped with high-quality waterproof sealing rings, effectively protecting electrical connection components and ensuring their safety and reliability under humid conditions.

2. Compact and efficient:
Compact design: Micro USB has a small size and occupies less space, making it suitable for compact devices.
Low power consumption: Suitable for mobile devices and other applications that require low power consumption, meeting the needs of modern applications.

3. Compatibility:
Data transfer: Supports USB 2.0 standard data transfer rate, meeting the data exchange requirements of most devices.
Widely applicable: Compatible with many traditional USB devices, widely used in smartphones, tablets, chargers, and other digital products.

4. Durability:
Material: Made of durable plastic and metal materials, it has good impact resistance and durability, ensuring stable performance under frequent plugging and various operating conditions.

application area
1. Consumer electronics: Charging and data transmission of mobile devices such as smartphones, tablets, and e-books.

2. Industrial equipment: Used for power and signal transmission of industrial automation equipment, sensors, and data acquisition devices.

3. Automotive applications: Provide power and data connections in car interiors, suitable for entertainment systems and navigation devices in modern cars.

4. Medical equipment: In medical equipment, due to its waterproof performance, it is suitable for use as surgical tools and monitoring devices.

Precautions for use
1. Ensure sealing: When connecting and disassembling, check whether the waterproof sealing ring is intact to ensure its waterproof performance.

2. Avoid overload: Use connectors according to the rated current and voltage to avoid equipment damage caused by overload.

3. Regular inspection: Regularly inspect the connector and ensure that its surface and interface are free of dirt and damage, ensuring a continuous and good connection state.

4. Pay attention to the direction during installation: When connecting, be careful not to apply too much force to avoid damaging the connector or poor contact.

summary
The Micro USB female 5PIN B waterproof connector has become an indispensable connection solution in modern electronic devices due to its excellent waterproof performance, compact design, and high compatibility. If you have any questions or need further information about this product, please feel free to contact the technician!
