KSD-WP-05F3-26-11

KSD-WP-05F3-26-11

  • 产品特性
  • 应用范围

图纸下载 样品申请

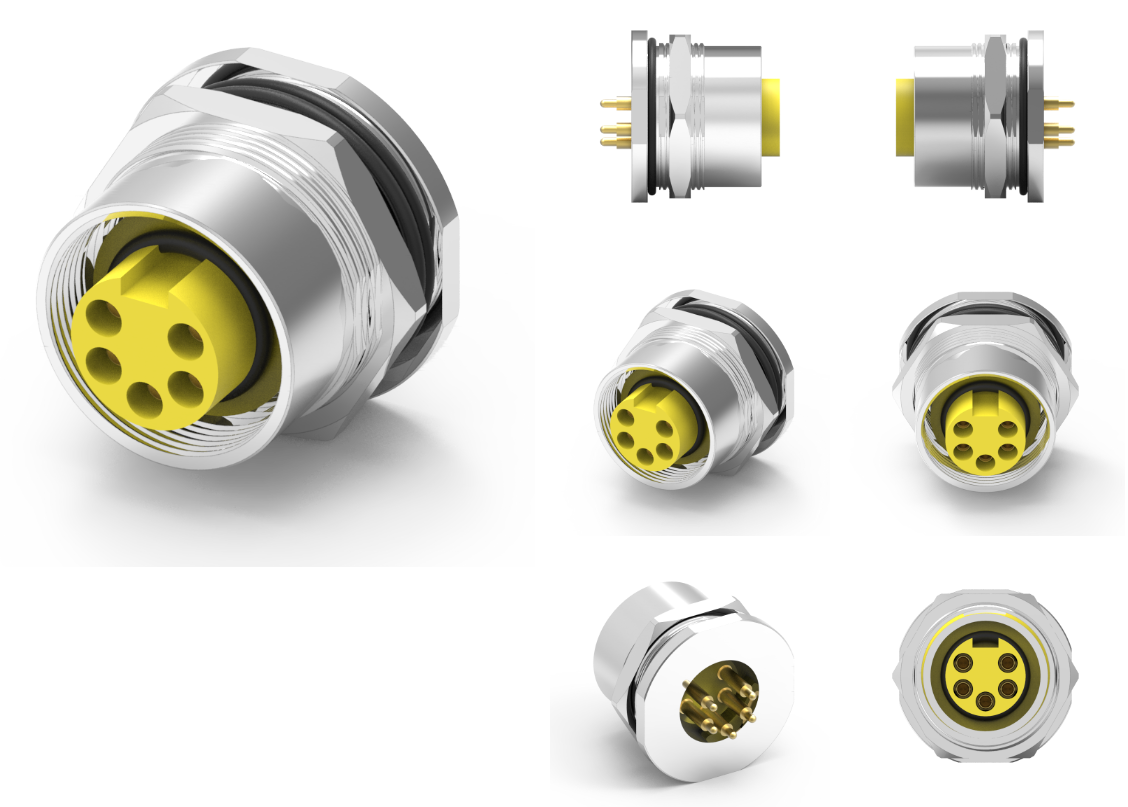

品名：7  8 母头前锁插板式防水连接器
1.材料
1-1. 外壳：PBT UL94V-0；颜色：黄色
1-2.触点：黄铜
1-3.外壳：铝
1-4. 螺母：铝
1-5.O环A:NBR；颜色：黑色
1-6.O环B:NBR；颜色：黑色
1-7.O环-C:NBR；颜色：黑色
2.完成：
2-1.触点：金色闪光
2-2.外壳：全部镀镍
2-3. 螺母：全部镀镍
3.电气规格：
3-1.额定电流：20A
3-2.额定电压：250V
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


7母头和8母头前锁插板式防水连接器是一种常见的连接器类型，旨在提供防水和防尘保护，确保电气连接的可靠性。以下是关于这种连接器的详细信息。

1. 特点

a. 前锁设计
安全锁定：前锁设计使连接器在插入后得到可靠的锁定，防止因振动或拉扯导致的松脱。与后锁设计相比，前锁方式通常允许更快的插拔操作。
简单易用：用户在连接和断开时更加方便，不需要使用额外的工具。

b. 插板式连接
适应性强：插板式连接器可以方便地与面板或其他设备连接，适用于多种电子设备。
易于维护：活动连接头不仅易于安装和替换，还可以减少维护成本。

c. 防水性能
防护等级：通常具备IP67或更高的防水等级，有效防止水分和灰尘侵入，确保在恶劣环境下正常工作。
密封设计：连接器配备密封圈（如O型圈），增强了连接处的防护能力。

d. 多针脚配置
引脚数量：7针和8针的设计可以支持多通道信号传输，适合复杂的电气应用。能够在一次连接中传输多个信号或电源。
可扩展性：根据需要可以进行定制，以适应不同的电气系统要求。

2. 应用领域
汽车行业：广泛应用于车载电子系统，包括控制模块、传感器、灯具等，确保连接在不同气候条件下的稳定性。

工业设备：用于工厂自动化、机器人系统以及电气控制柜等需要可靠电气连接的应用。

户外设备：如监控摄像头、LED照明系统，需要在户外环境中保持防水性能的设备。

消费电子：在多种电子产品中提供可靠和稳固的电气连接，满足现代消费电子的需求。

3. 使用注意事项
连接前检查：在连接时，请确保连接器及其配件没有损坏，密封性良好。

遵循制造商说明：根据连接器的安装手册进行安装，以确保正确连接并避免损坏。

定期维护：检查连接器的插入状态和密封状况，定期进行维护以确保长期的可靠性。

导线选择：选择和连接器匹配的导线，确保电气性能符合要求。

4. 总结
7母头和8母头前锁插板式防水连接器在提供可靠的电气连接时，具备优良的防水和防尘性能，适合各种恶劣环境的应用。在汽车、工业、户外设备等多个领域发挥着重要作用。若您对具体产品有任何疑问或需求，欢迎联系技术员！



Product Name: 7 8 Female Head Front Lock Insertion Plate Waterproof Connector
1. Materials
1-1.  Shell: PBT UL94V-0； Color: Yellow
1-2. Contact: Brass
1-3. Shell: Aluminum
1-4.  Nut: Aluminum
1-5. O-ring A: NBR； Color: Black
1-6. O-ring B: NBR； Color: Black
1-7. O-ring - C: NBR； Color: Black
2. Complete:
2-1. Contact: Gold Flash
2-2. Shell: All nickel plated
2-3.  Nut: All nickel plated
3. Electrical specifications:
3-1. Rated current: 20A
3-2. Rated voltage: 250V
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


7-head and 8-head front locking plug-in waterproof connectors are a common type of connector designed to provide waterproof and dustproof protection, ensuring the reliability of electrical connections. The following is detailed information about this type of connector.

1. Characteristics

a. Front lock design
Security lock: The front lock design ensures reliable locking of the connector after insertion, preventing loosening due to vibration or pulling. Compared to the rear lock design, the front lock method usually allows for faster insertion and removal operations.
Easy to use: Users find it more convenient to connect and disconnect without the need for additional tools.

b. Plug in connection
Strong adaptability: Plug in connectors can be easily connected to panels or other devices, suitable for various electronic devices.
Easy to maintain: The active connector is not only easy to install and replace, but also reduces maintenance costs.

c. Waterproof performance
Protection level: It usually has a waterproof level of IP67 or higher, effectively preventing moisture and dust from entering, ensuring normal operation in harsh environments.
Sealing design: The connector is equipped with a sealing ring (such as an O-ring) to enhance the protective ability of the connection.

d. Multi pin configuration
Pin count: The 7-pin and 8-pin designs can support multi-channel signal transmission, making them suitable for complex electrical applications. Capable of transmitting multiple signals or power sources in one connection.
Scalability: Customization can be made as needed to meet different electrical system requirements.

2. Application Fields
Automotive industry: widely used in in car electronic systems, including control modules, sensors, lighting fixtures, etc., to ensure stability under different climate conditions.

Industrial equipment: used for applications such as factory automation, robot systems, and electrical control cabinets that require reliable electrical connections.

Outdoor equipment: devices such as surveillance cameras and LED lighting systems that require waterproof performance in outdoor environments.

Consumer Electronics: Providing reliable and stable electrical connections in various electronic products to meet the needs of modern consumer electronics.

3. Precautions for use
Pre connection inspection: When connecting, please ensure that the connector and its accessories are not damaged and have good sealing.

Follow the manufacturer's instructions: Install according to the connector's installation manual to ensure proper connection and avoid damage.

Regular maintenance: Check the insertion status and sealing condition of the connector, and perform regular maintenance to ensure long-term reliability.

Wire selection: Select wires that match the connector to ensure electrical performance meets requirements.

4. Summary
The 7-head and 8-head front locking plug-in waterproof connectors have excellent waterproof and dustproof performance when providing reliable electrical connections, making them suitable for applications in various harsh environments. Plays an important role in multiple fields such as automotive, industrial, and outdoor equipment. If you have any questions or needs regarding specific products, please feel free to contact our technicians!
