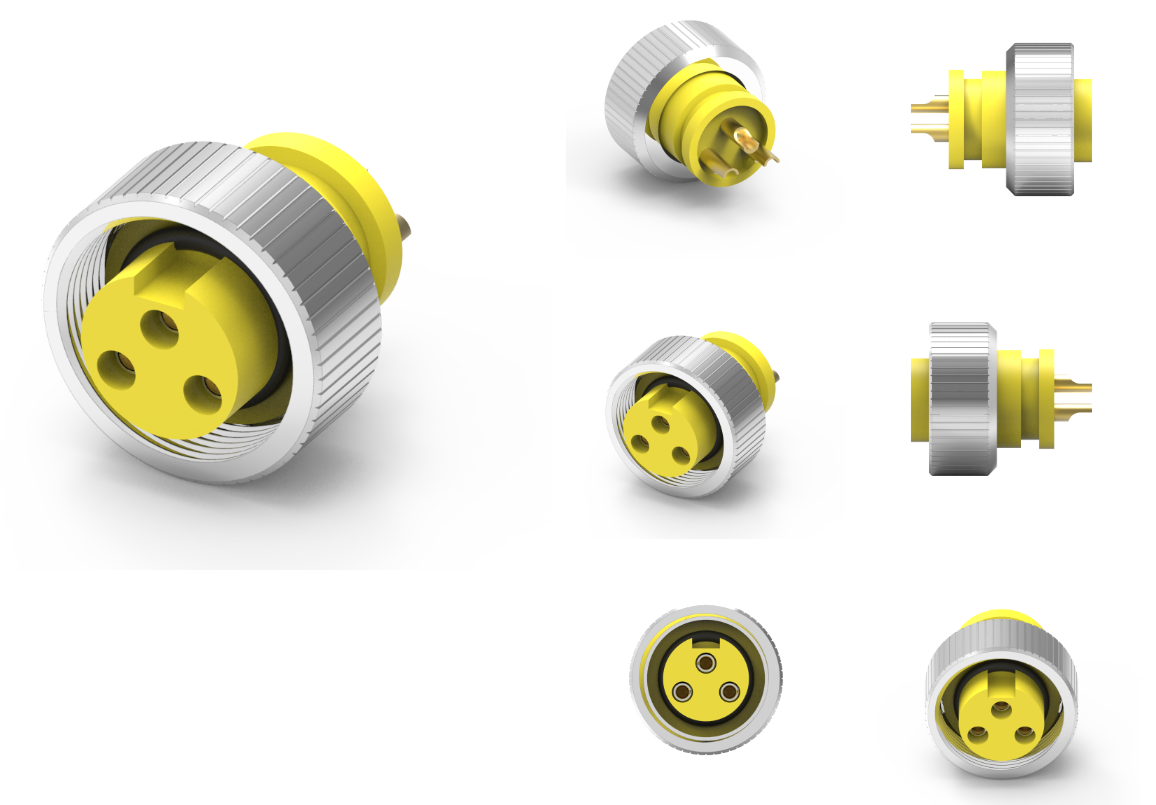

品名:7 8母头线端成型式防水连接器
1.材料:
1-1.外壳:PBT UL94V-0:颜色:黄色
1-2.触点:黄铜
1-3.弹簧:磷青铜
1-4.螺母:黄铜
1-5.0-RING:NBR
2.完成:
2-1.触点:见表A
底板:镍
2-2. 弹簧:哑光镀锡
2-3. 螺母:镀镍
3.电气规格:
3-1.额定电流:20A
3-2.额定电压:250V
3-3.防水等级:IP68
4.环境:
4-1.工作温度:-20℃~85℃
品牌:科斯达开关KSDKG
产地:中国东莞
7母头和8母头线端成型式防水连接器是一种专门设计用于提供稳定电气连接和防水保护的连接器,广泛用于不同的应用领域。以下是关于这种连接器的详细信息。
1. 特点
a. 线端成型设计
优化接触:线端成型的设计使得连接器直接与导线端相连,确保更好的导电性能,减少接触电阻。
减少故障率:通过特定的成型方法,将导线与连接器牢固连接,降低因连接不良引起的故障。
b. 防水性能
防护等级:一般具有IP67等级或更高的防水性能,有效阻挡水和灰尘的侵入,适合户外和恶劣环境使用。
密封圈设计:内部通常配有密封圈(例如O型圈),保证连接点的防水性。
c. 多针脚配置
引脚数量:可选择7针或8针的配置,能够同时传输多个信号或电源。.这些连接器可以在复杂的电气网络中提供可靠的连接。
灵活应用:适用于各种组合的电气连接方案。
2. 应用领域
汽车电子:在汽车控制系统、传感器和执行器等设备中,保持电气连接的可靠性,尤其是在暴露于气候变化的环境下。
工业自动化:在制造设备和机器人技术中,确保高效的信号和电力传输。
户外设备:如防水摄像头、户外照明等,能够在设备暴露于自然元素时保持性能稳定。
军事和航天:用于在极端环境下需要高可靠性的连接方案。
3. 使用注意事项
正确连接:在安装时确保导线与连接器的连接处保持良好,避免因为安装不当而降低防水性能。
选择合适导线:使用与连接器规格相符的导线,以保证连接的牢固性和电气性能。
定期检查:定期检查连接器的密封性、物理状态和电气性能,以确保其长期有效地工作。
遵循相关标准:安装和使用过程中遵循相关的技术标准和制造商的指导,确保安全和有效性。
4. 总结
7母头和8母头线端成型式防水连接器提供了优良的电气接触和防水保护,适合于汽车、工业、户外和其他需要防水和稳定连接的应用。其设计确保了在严苛条件下的可靠性。如果您需要更多信息或者询问具体产品,欢迎联系技术员!
Product Name: 7-8 Female Wire End Forming Waterproof Connector
1. Materials:
1-1. Shell: PBT UL94V-0: Color: Yellow
1-2. Contact: Brass
1-3. Spring: phosphor bronze
1-4. Nut: Brass
1-5.0-RING: NBR
2. Complete:
2-1. Contact: See Table A
Bottom plate: Nickel
2-2. Spring: Matte tin plated
2-3. Nut: Nickel plated
3. Electrical specifications:
3-1. Rated current: 20A
3-2. Rated voltage: 250V
3-3. Waterproof grade: IP68
4. Environment:
4-1. Working temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
7-head and 8-head wire end molded waterproof connectors are connectors specifically designed to provide stable electrical connections and waterproof protection, widely used in different application fields. The following is detailed information about this type of connector.
1. Characteristics
a. Line end forming design
Optimized Contact: The design of the wire end forming allows the connector to be directly connected to the wire end, ensuring better conductivity and reducing contact resistance.
Reduce failure rate: By using specific molding methods, firmly connect wires to connectors to reduce failures caused by poor connections.
b. Waterproof performance
Protection level: Generally has IP67 or higher waterproof performance, effectively blocking the intrusion of water and dust, suitable for outdoor and harsh environments.
Sealing ring design: The interior is usually equipped with sealing rings (such as O-rings) to ensure the waterproofness of the connection points.
c. Multi pin configuration
Pin count: Available in 7-pin or 8-pin configurations, capable of simultaneously transmitting multiple signals or power supplies These connectors can provide reliable connections in complex electrical networks.
Flexible application: Suitable for various combinations of electrical connection solutions.
2. Application Fields
Automotive electronics: Maintaining the reliability of electrical connections in automotive control systems, sensors, and actuators, especially in environments exposed to climate change.
Industrial automation: Ensuring efficient signal and power transmission in manufacturing equipment and robotics technology.
Outdoor equipment, such as waterproof cameras and outdoor lighting, can maintain stable performance when exposed to natural elements.
Military and Aerospace: Used for connection solutions that require high reliability in extreme environments.
3. Precautions for use
Correct connection: Ensure that the connection between the wire and the connector is maintained in good condition during installation to avoid reducing waterproof performance due to improper installation.
Choose appropriate wires: Use wires that match the specifications of the connector to ensure the firmness and electrical performance of the connection.
Regular inspection: Regularly check the sealing, physical condition, and electrical performance of the connector to ensure its long-term effective operation.
Follow relevant standards: During installation and use, follow relevant technical standards and manufacturer's guidance to ensure safety and effectiveness.
4. Summary
The 7-pin and 8-pin wire end molded waterproof connectors provide excellent electrical contact and waterproof protection, suitable for automotive, industrial, outdoor, and other applications that require waterproof and stable connections. Its design ensures reliability under harsh conditions. If you need more information or inquire about specific products, please feel free to contact the technician!
