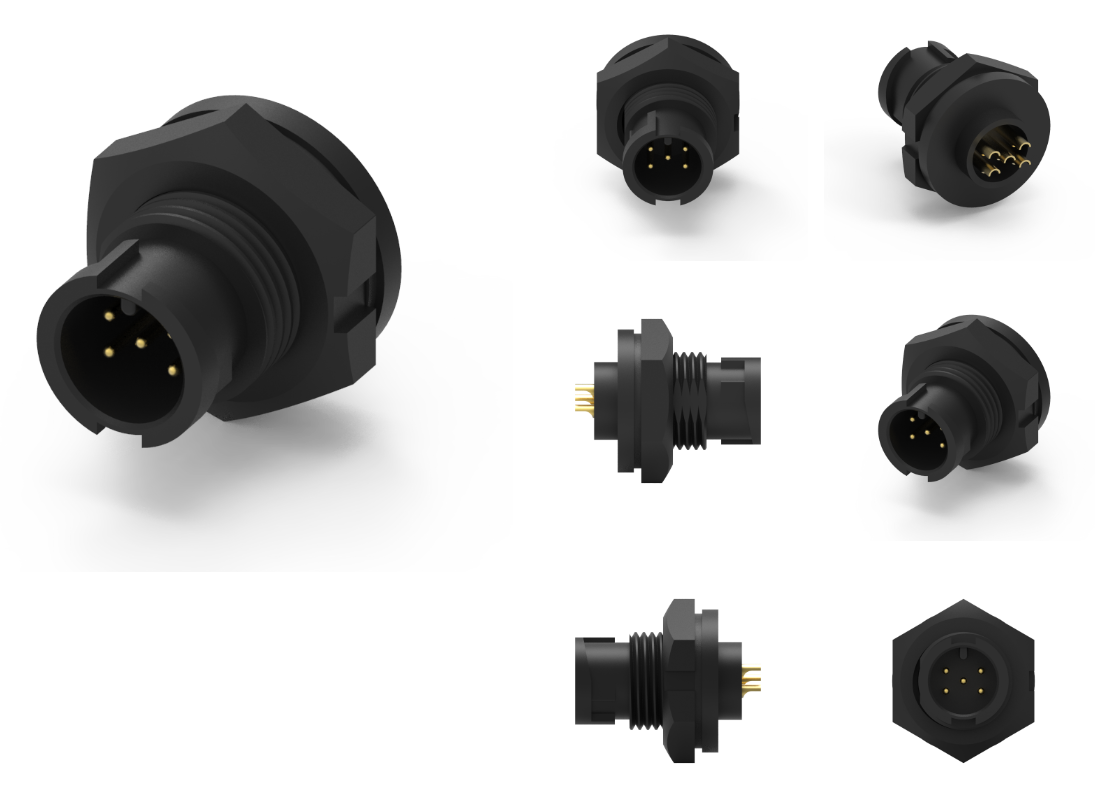

品名：A Size (公身公针) 前锁焊线式防水连接器(快锁式)
1.材料
1-1.外壳：PA66
1-2.触点：黄铜
1-3.垫片：硅胶
1-4. 六角螺母：PA66
2.完成：
2-1.触点：镀金
3.电气规格：
3-1.额定电流：5A
3-2.额定电压：250V
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-40℃~105℃
品牌：科斯达开关KSDKG
产地：中国东莞

A Size（公身公针）前锁焊线式防水连接器（快锁式）是一种专为快速方便连接而设计的电气连接器，主要应用于需要可靠防水和防尘保护的场合。这种连接器具有多种优点，适合在恶劣环境下使用。以下是该连接器的一些详细特点和应用信息：

产品特点
1. 快锁设计
快速连接：该连接器采用前锁设计，使得连接和断开的操作更加简便，用户可快速完成连接，提升工作效率。
牢固锁定：快锁机制确保连接后稳固，不易受到拉扯或震动的影响，避免松动和接触不良。

2. 防水性能
高防护等级：通常具有IP67或更高的防水等级，能够有效防止水分进入，保护内部电路免受潮湿环境的影响。
优质密封设计：使用密封圈和密封材料，确保连接处的水密性和防尘能力，适合多种工况环境。

3. 焊线式构造
可靠性：焊线式设计确保了连接的稳定性，适合长期使用，减少因插拔带来的磨损或故障。
电气性能好：焊接工艺保证了优良的电气接触，提高电流传输效率，减少接触电阻。

4. 材质与耐用性
耐高温特性：通常使用能耐高温和耐腐蚀的工程塑料及金属材料，适应各种恶劣环境。
抗振动抗冲击：设计上考虑到机械振动和冲击的保护，适合各种工业设备和汽车电子应用。

应用领域
汽车行业：常用于汽车中的电子控制装置、传感器和其他电气系统，提供可靠的连接。

工业自动化：适用于PLC控制、传感器和执行器等电气设备的连接，确保安全稳定的信号传输。

户外设备：如户外照明、监控系统等，能够在高湿、雨雪等恶劣气候中正常工作。

电力设备：用于发电设备、配电设备和电能监控装置等，确保高效可靠的电气连接。

使用注意事项
确保焊接质量：在焊接接线前，确认焊接面干净，并遵循焊接标准，确保焊接牢固。检查密封性能：定期检查连接器的密封圈，确保其无损坏，保持良好的防水性能。

避免不必要的拉扯：使用时避免对连接线施加过大力量，以免损坏连接器或线路。

清洁连接器：保持连接器的清洁，防止灰尘和污垢影响其性能。

总结
A Size（公身公针）前锁焊线式防水连接器（快锁式）以其优良的防水性能、快速连接的便利性和良好的耐用性，适合用于各种需要可靠电气连接的应用场合。如果您需要更详细的规格或有其他问题，欢迎联系技术员！



Product Name: A Size (Male Body Male Pin) Front Lock Solder Wire Waterproof Connector (Quick Lock Type)
1. Materials
1-1. Shell: PA66
1-2. Contact: Brass
1-3. Gasket: Silicone
1-4.  Hexagon nut: PA66
2. Complete:
2-1. Contact: Gold plating
3. Electrical specifications:
3-1. Rated current: 5A
3-2. Rated voltage: 250V
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 40℃~105℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China

A Size (male body and male pin) front lock welding wire waterproof connector (quick lock type) is an electrical connector designed for quick and convenient connection, mainly used in occasions that require reliable waterproof and dustproof protection. This type of connector has multiple advantages and is suitable for use in harsh environments. Here are some detailed features and application information of this connector:

Product Features
1. Quick lock design
Quick connection: The connector adopts a front lock design, making the connection and disconnection operations more convenient, and users can quickly complete the connection, improving work efficiency.
Secure locking: The quick locking mechanism ensures that the connection is stable and not easily affected by pulling or vibration, avoiding looseness and poor contact.

2. Waterproof performance
High protection level: usually has a waterproof rating of IP67 or higher, which can effectively prevent moisture from entering and protect internal circuits from the influence of humid environments.
High quality sealing design: using sealing rings and sealing materials to ensure water tightness and dust resistance at the connection, suitable for various working conditions and environments.

3. Wire bonding structure
Reliability: The wire bonding design ensures the stability of the connection, suitable for long-term use, and reduces wear or failure caused by plugging and unplugging.
Good electrical performance: The welding process ensures excellent electrical contact, improves current transmission efficiency, and reduces contact resistance.

4. Material and Durability
High temperature resistance: Engineering plastics and metal materials that are resistant to high temperatures and corrosion are commonly used to adapt to various harsh environments.
Anti vibration and anti impact: The design takes into account the protection against mechanical vibration and impact, making it suitable for various industrial equipment and automotive electronic applications.

application area
Automotive industry: commonly used in electronic control devices, sensors, and other electrical systems in automobiles to provide reliable connections.

Industrial automation: suitable for connecting electrical equipment such as PLC control, sensors, and actuators to ensure safe and stable signal transmission.

Outdoor equipment: such as outdoor lighting, monitoring systems, etc., can work normally in harsh weather conditions such as high humidity, rain and snow.

Power equipment: used for power generation equipment, distribution equipment, and energy monitoring devices to ensure efficient and reliable electrical connections.

Precautions for use
Ensure welding quality: Before welding the wiring, confirm that the welding surface is clean and follow the welding standards to ensure that the welding is firm. Check sealing performance: Regularly inspect the sealing ring of the connector to ensure that it is not damaged and maintains good waterproof performance.

Avoid unnecessary pulling: When using, avoid applying excessive force to the connecting wire to avoid damaging the connector or circuit.

Cleaning connectors: Keep the connectors clean to prevent dust and dirt from affecting their performance.

summary
A Size (male body and male pin) front lock welding wire waterproof connector (quick lock type) is suitable for various applications that require reliable electrical connections due to its excellent waterproof performance, convenient quick connection, and good durability. If you need more detailed specifications or have any other questions, please feel free to contact the technician!
