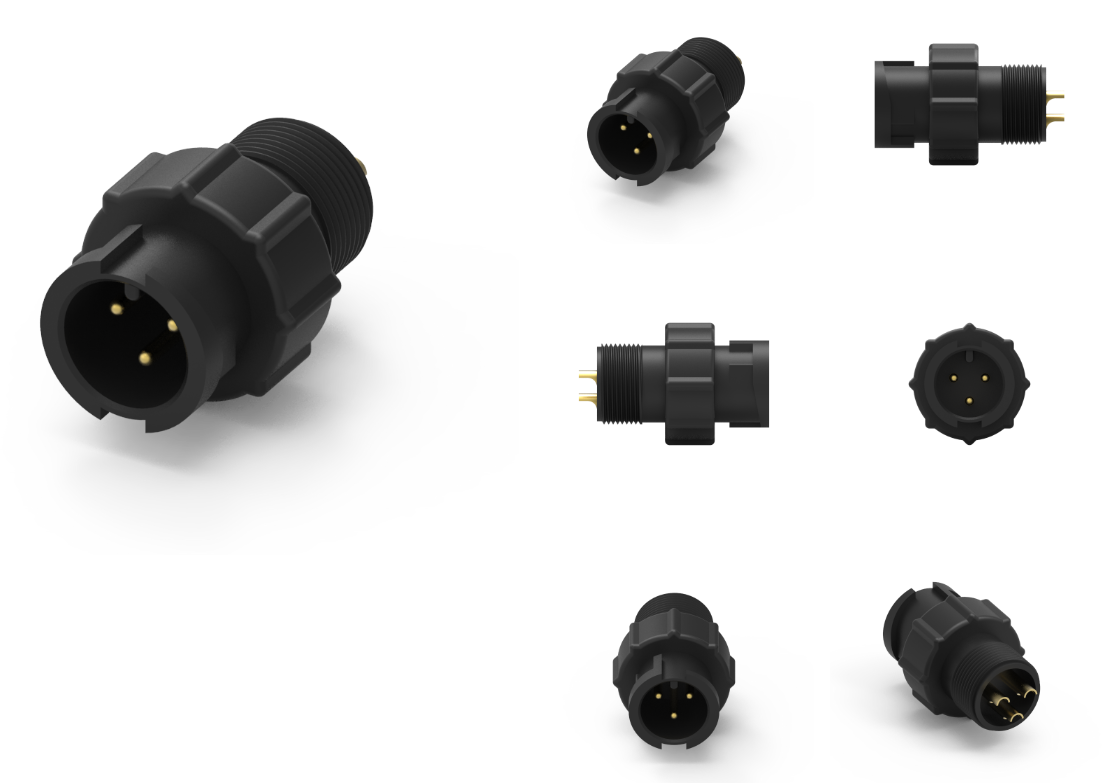

品名：A Size (公身公针) 线端成型式防水连接器(快锁式)
1.材料：
1-1.外壳：PA66
1-2.触点：黄铜
2.完成：
2-1.触点：镀金
3.电气规格：
3-1.额定电流：5A
3-2.额定电压：250V
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-20℃~80℃
品牌：科斯达开关KSDKG
产地：中国东莞


A Size（公身公针）线端成型式防水连接器（快锁式）是一种高效的电气连接器，专为需要快速、安全和防水连接的应用设计。以下是有关这种连接器的详细信息：

产品特点
1. 快锁设计
快速连接：快锁式设计确保用户可以在短时间内完成连接和断开，提高了工作效率。
牢固锁定：一旦连接，快锁机制可确保连接器牢固锁定，防止因震动或拉力造成的松动。

2. 防水性能
高防护等级：通常该连接器的防护等级可达到IP67或更高，有效阻挡水分和污物的侵入。
密封设计：采用高质量的密封圈和密封材料，增强连接处的水密性，确保在各种恶劣环境中使用。

3. 线端成型式
便于安装：线端成型设计使得连接器的安装和替换变得更加方便，用户可以轻松根据需求进行更换或修复。
提升稳定性：通过特定的成型技术，连接器的接触稳定性得到加强，减少接触不良的风险。

4. 材质与耐用性
耐高温和耐腐蚀材料：连接器通常采用工程塑料和耐腐蚀金属，适应高温、潮湿和其它复杂环境。
抗冲击和振动：设计上考虑了抗冲击和振动的要求，适合在机械负荷较大的使用场合。

应用领域
汽车电子：广泛用于汽车的电气系统，包括传感器、控制单元和电源模块，提供可靠的连接。

工业设备：用于PLC、变频器和其他工业控制设备，确保信号和电力的稳定传输。

户外照明和监控：在户外应用中，如灯具和监控摄像头等，防水性能确保设备在各种天气条件下正常运行。

电力设备：适用于各种电力输送和监测设备，确保电气连接的安全和可靠。

使用注意事项
检查焊接和接头：在安装之前，确认所有焊接和接头的质量，确保连接牢固，避免松动或短路。

定期检查密封性：定期检查密封圈，确保无损坏，保持连接器的防水能力。

避免施加过大力：在使用过程中，避免对连接器施加拉力或扭转力，以防止损坏连接器或线路。

保持清洁：保持连接器及其周边环境的清洁，以免灰尘和污垢影响连接质量。

总结
A Size（公身公针）线端成型式防水连接器（快锁式）是一个可靠的解决方案，适用于多种严苛的应用场合，具有优异的防水性能和易于操作的设计。如果您有更多具体的需求或关于该连接器的其他问题，欢迎联系技术员！



Product Name: A Size (Male Pin) Wire End Forming Waterproof Connector (Quick Lock Type)
1. Materials:
1-1. Shell: PA66
1-2. Contact: Brass
2. Complete:
2-1. Contact: Gold plating
3. Electrical specifications:
3-1. Rated current: 5A
3-2. Rated voltage: 250V
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 20℃~80℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


A Size (male body male pin) wire end molded waterproof connector (quick lock type) is an efficient electrical connector designed for applications that require fast, safe, and waterproof connections. Here is detailed information about this connector:

Product Features
1. Quick lock design
Quick connection: The quick lock design ensures that users can connect and disconnect in a short amount of time, improving work efficiency.
Secure locking: Once connected, the quick locking mechanism ensures that the connector is securely locked, preventing loosening caused by vibration or tension.

2. Waterproof performance
High protection level: Typically, the protection level of this connector can reach IP67 or higher, effectively blocking the intrusion of moisture and dirt.
Sealing design: High quality sealing rings and sealing materials are used to enhance the water tightness of the connection, ensuring use in various harsh environments.

3. End forming type
Easy to install: The wire end forming design makes the installation and replacement of connectors more convenient, and users can easily replace or repair them according to their needs.
Improving stability: Through specific molding techniques, the contact stability of the connector is enhanced, reducing the risk of poor contact.

4. Material and Durability
High temperature and corrosion-resistant materials: Connectors are usually made of engineering plastics and corrosion-resistant metals, suitable for high temperatures, humidity, and other complex environments.
Anti impact and vibration: The design takes into account the requirements for anti impact and vibration, making it suitable for use in situations with high mechanical loads.

application area
Automotive electronics: widely used in the electrical systems of automobiles, including sensors, control units, and power modules, providing reliable connections.

Industrial equipment: used for PLCs, frequency converters, and other industrial control devices to ensure stable transmission of signals and power.

Outdoor lighting and monitoring: In outdoor applications such as lighting fixtures and surveillance cameras, waterproof performance ensures that the equipment operates normally under various weather conditions.

Power equipment: Suitable for various power transmission and monitoring devices, ensuring the safety and reliability of electrical connections.

Precautions for use
Check welding and joints: Before installation, confirm the quality of all welding and joints, ensure that the connections are firm, and avoid looseness or short circuits.

Regularly check the sealing: Regularly inspect the sealing ring to ensure no damage and maintain the waterproof ability of the connector.

Avoid applying excessive force: During use, avoid applying tension or twisting force to the connector to prevent damage to the connector or circuit.

Keep clean: Keep the connector and its surrounding environment clean to prevent dust and dirt from affecting the quality of the connection.

summary
A Size (male body and male pin) wire end molded waterproof connector (quick lock type) is a reliable solution suitable for various harsh applications, with excellent waterproof performance and easy to operate design. If you have more specific needs or other questions about this connector, please feel free to contact the technician!
