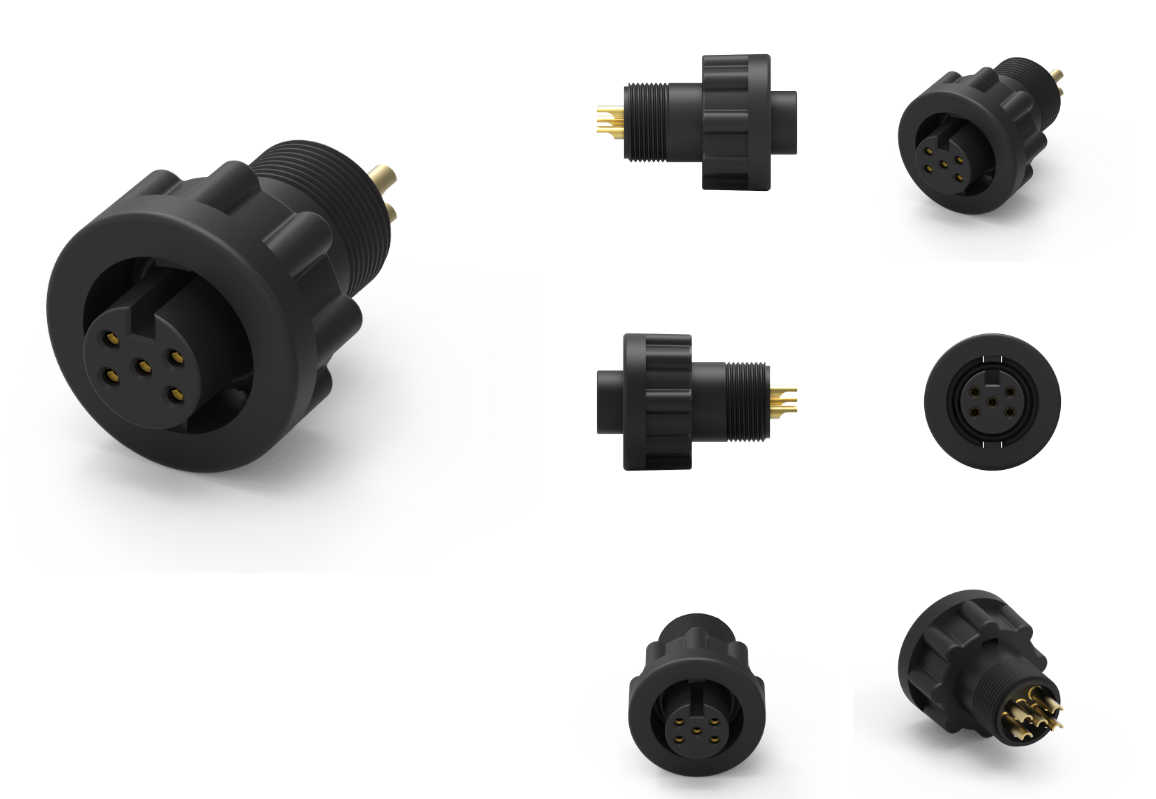

品名：A Size (母身母针) 线端成型式防水连接器(快锁式)
1.材料：
1-1.外壳：PA66
1-2.触点：黄铜
1-3.O型圈：硅胶
1-4. 锁紧螺母：PA66
2.完成：
2-1.触点：镀金
3.电气规格：
3-1.额定电流：5A
3-2.额定电压：250V
3-3.防水：1P67
4.环境
4-1.工作温度：-20℃~80℃
品牌：科斯达开关KSDKG
产地：中国东莞
A Size (母身母针) 线端成型式防水连接器 (快锁式) 概述
A Size (母身母针) 线端成型式防水连接器（快锁式）是一种为确保电气连接在恶劣环境下的可靠性而设计的连接器。这种连接器广泛应用于汽车、工业设备、户外设备等领域，其设计以高效、安全和防水为主要特点。
主要特点
快锁设计：
便捷连接：快锁机制使得连接器可以快速连接和断开，用户能够轻松完成操作，减少了安装时间和人为错误。
牢固连接：连接后，通过快锁机制实现安全锁定，避免振动和拉扯引起的松动或接触不良。
防水性能：
高防护等级：通常具有IP67或更高的防水等级，有效阻挡水和灰尘进入，确保内部电路在复杂环境中的安全。
优质密封设计：配备高效密封圈和材料，提升整体防水性能，使连接器在多种天气条件下均可稳定工作。
线端成型设计：
简化连接：线端成型技术能够将导线直接连接到连接器上，减少了中间连接环节，简化了安装。
增强可靠性：此设计可以减少连接点的数量，降低故障率，提升整体的可靠性和稳定性。
耐用材料：
耐高温和化学腐蚀：连接器采用优质塑料与金属材料，能够在高温及腐蚀环境下稳定工作。
抗冲击和振动能力：设计上考虑到抗冲击和振动，适合在工业和汽车等需要高韧性的环境下使用。
应用领域
汽车行业：广泛应用于车辆电子控制单元、传感器和照明系统等，确保电气连接的安全。
工业自动化：适用于PLC（可编程逻辑控制器）、传感器和其他自动化设备，提供可靠的电源和信号传输。
户外设备：如户外照明、安防监控等，确保连接器在广泛的气候条件下正常工作。
新能源：在电动汽车、太阳能设备和风能发电等领域提供高效的电气连接。
使用注意事项
安装前检查：确保连接器及导线的清洁和无损坏，保持良好的接触。
定期维护：检查密封圈的状态，确保防水性能的可靠性。
避免超负荷操作：使用过程中，应避免施加过大的机械力量或拉扯，以免损坏连接器。
保持干燥：在连接器未使用时，应保持连接区域的干燥和清洁，以防水分和杂质的侵入。
总结
A Size (母身母针) 线端成型式防水连接器（快锁式）结合了快速连接和优异的防水特性，适合于众多应用场景。凭借其可靠的性能，它是现代电子设备中不可或缺的部件。如需了解更多技术细节或有其他问题，欢迎联系技术员！
Product Name: A Size (Female Body Female Pin) Wire End Forming Waterproof Connector (Quick Lock Type)
1. Materials:
1-1. Shell: PA66
1-2. Contact: Brass
1-3. O-ring: Silicone
1-4. Lock nut: PA66
2. Complete:
2-1. Contact: Gold plating
3. Electrical specifications:
3-1. Rated current: 5A
3-2. Rated voltage: 250V
3-3. Waterproof: 1P67
4. Environment
4-1. Working temperature:- 20℃~80℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Overview of A Size (female body and female needle) wire end molded waterproof connector (quick lock type)
A Size (female body and female pin) wire end molded waterproof connector (quick lock type) is a connector designed to ensure the reliability of electrical connections in harsh environments. This type of connector is widely used in fields such as automobiles, industrial equipment, outdoor equipment, etc. Its design is characterized by high efficiency, safety, and waterproofing.
main features
Quick lock design:
Convenient connection: The quick lock mechanism allows the connector to be quickly connected and disconnected, making it easy for users to complete operations and reducing installation time and human errors.
Secure connection: After connection, a quick lock mechanism is used to achieve safe locking, avoiding looseness or poor contact caused by vibration and pulling.
Waterproof performance:
High protection level: usually has a waterproof rating of IP67 or higher, effectively blocking water and dust from entering, ensuring the safety of internal circuits in complex environments.
High quality sealing design: equipped with efficient sealing rings and materials to enhance overall waterproof performance, allowing the connector to work stably in various weather conditions.
End forming design:
Simplified connection: Terminal forming technology can directly connect wires to connectors, reducing intermediate connection links and simplifying installation.
Enhanced reliability: This design can reduce the number of connection points, lower the failure rate, and improve overall reliability and stability.
Durable materials:
High temperature and chemical corrosion resistance: The connector is made of high-quality plastic and metal materials, which can work stably in high temperature and corrosive environments.
Resistance to impact and vibration: The design takes into account resistance to impact and vibration, making it suitable for use in environments such as industry and automobiles that require high toughness.
application area
Automotive industry: widely used in vehicle electronic control units, sensors, and lighting systems to ensure the safety of electrical connections.
Industrial Automation: Suitable for PLCs (Programmable Logic Controllers), sensors, and other automation equipment, providing reliable power and signal transmission.
Outdoor equipment: such as outdoor lighting, security monitoring, etc., to ensure that connectors work properly in a wide range of climatic conditions.
New energy: providing efficient electrical connections in fields such as electric vehicles, solar equipment, and wind power generation.
Precautions for use
Pre installation inspection: Ensure that the connectors and wires are clean and undamaged, and maintain good contact.
Regular maintenance: Check the condition of the sealing ring to ensure the reliability of waterproof performance.
Avoid overloading operation: During use, excessive mechanical force or pulling should be avoided to avoid damaging the connector.
Keep dry: When the connector is not in use, the connection area should be kept dry and clean to prevent water and impurities from entering.
summary
A Size (female body and female needle) wire end molded waterproof connector (quick lock type) combines quick connection and excellent waterproof characteristics, suitable for many application scenarios. With its reliable performance, it is an indispensable component in modern electronic devices. If you need to learn more technical details or have any other questions, please feel free to contact the technician!
