KSD-WP-04F2-214-11（快锁式-2A)

KSD-WP-04F2-214-11（快锁式-2A)

  • 产品特性
  • 应用范围

图纸下载 样品申请

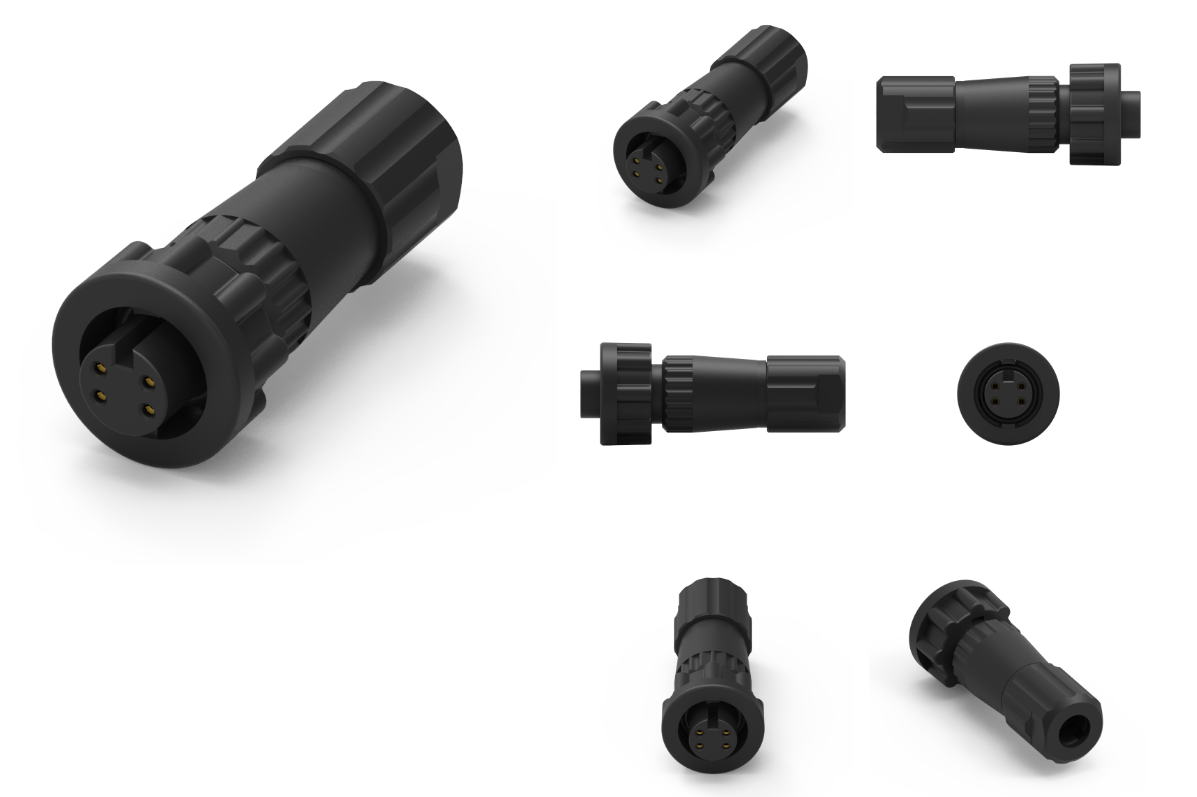

品名：A Size (母身母针) 组装式防水连接器(快锁式)
1.材料
1-1. 住房：PA66
1-2.触点：黄铜
1-3.O型圈 A：硅胶
1-4.锁紧螺母：PA66
1-5.主体：PA66
1-6. O型圈 B：EPDM
1-7. O型圈：NBR
1-8. 压盖笼：PA66
1-9.压盖螺母：PA66
2.完成：
2-1.触点：镀金
3.电气规格：
3-1.额定电流：5A
3-2.额定电压：250V
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-20℃~80℃
品牌：科斯达开关KSDKG
产地：中国东莞


A Size (母身母针) 组装式防水连接器 (快锁式) 概述
A Size (母身母针) 组装式防水连接器（快锁式）是专为确保在恶劣环境中提供可靠电气连接而设计的连接器，广泛应用于汽车、工业、通信、户外设备等多个领域。其设计理念注重连接的便捷性、安全性和防水性能。

主要特点

1.快锁设计：
便捷连接：快锁机制使得连接器可以实现快速连接和断开，显著提高操作效率。
牢固性：连接后，通过快锁设计实现有效锁定，防止因外部振动或拉扯而导致的松动，确保稳定的电气连接。

2.防水性能：
高防护等级：通常具有IP67或以上的防护等级，有效防止水和灰尘的侵入，确保设备在潮湿或多尘环境下正常工作。
优质密封设计：采用高品质的密封圈和密封材料，增强连接部位的水密性。

3.组装式设计：
灵活适应：组装式结构允许用户根据需求进行灵活组装和维护，便于现场使用和调整。
易于替换：若个别部件出现故障，用户可方便地进行替换，减少了维护成本和时间。

4.耐用材质：
高耐温及耐腐蚀性：连接器通常采用工程塑料和耐腐蚀金属制造，能应对多种极端环境。
抗冲击和振动能力：经过精密设计，能够抵抗常见的振动和冲击，保障稳定运行。

应用领域
1.汽车电子：用于车辆的电气系统，包括传感器、控制模块和照明设备，确保可靠的电气连接。

2.工业自动化：应用于PLC、变频器、传感器及其他工业设备上，提供安全稳定的电源和信号连接。

3.户外设备：如户外照明、监控摄像头等，自然环境下的防水连接得到广泛应用。

4.新能源：在电动汽车、太阳能发电及风力发电机组等领域，提供高效的电气连接。

使用注意事项
1.安装前检查：在连接之前，确保连接器和导线的接触面干净且无损伤，以保持良好的电气接触。

2.定期维护：定期检查并更换密封圈，确保持久的防水性能。

3.避免超负荷使用：在使用过程中，避免施加过大的拉力或压力，以免损坏或导致连接不良。

4.保持清洁：安装和使用时，保持连接器干燥清洁，以防污垢和水分影响性能。

总结
A Size (母身母针) 组装式防水连接器（快锁式）以其优越的设计和高可靠性，成为多个行业中电气连接的重要选择。它不仅提供快速、稳定的连接，还在防水和耐用性方面表现卓越。欢迎联系技术员！



Product Name: A Size (Female Body Female Pin) Assembled Waterproof Connector (Quick Lock)
1. Materials
1-1.  Housing: PA66
1-2. Contact: Brass
1-3. O-ring A: Silicone
1-4. Lock nut: PA66
1-5. Subject: PA66
1-6.  O-ring B: EPDM
1-7.  O-ring: NBR
1-8.  Cover cage: PA66
1-9. Cap Nut: PA66
2. Complete:
2-1. Contact: Gold plating
3. Electrical specifications:
3-1. Rated current: 5A
3-2. Rated voltage: 250V
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 20℃~80℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


Overview of A Size (female body and female pin) assembled waterproof connector (quick lock type)
A Size (female body, female pin) assembled waterproof connector (quick lock type) is a connector designed to ensure reliable electrical connection in harsh environments, widely used in various fields such as automotive, industrial, communication, outdoor equipment, etc. Its design philosophy emphasizes the convenience, safety, and waterproof performance of connections.

main features

1. Quick lock design:
Convenient connection: The quick lock mechanism enables quick connection and disconnection of the connector, significantly improving operational efficiency.
Robustness: After connection, effective locking is achieved through quick lock design to prevent loosening caused by external vibration or pulling, ensuring stable electrical connection.

2. Waterproof performance:
High protection level: usually with a protection level of IP67 or above, effectively preventing the intrusion of water and dust, ensuring that the equipment works normally in humid or dusty environments.
High quality sealing design: using high-quality sealing rings and sealing materials to enhance the water tightness of the connecting parts.

3. Modular design:
Flexible adaptation: The modular structure allows users to flexibly assemble and maintain according to their needs, making it easy to use and adjust on site.
Easy to replace: If individual components fail, users can easily replace them, reducing maintenance costs and time.

4. Durable material:
High temperature resistance and corrosion resistance: Connectors are usually made of engineering plastics and corrosion-resistant metals, which can cope with various extreme environments.
Anti impact and vibration capability: Through precise design, it can resist common vibrations and impacts, ensuring stable operation.

application area
1. Automotive electronics: Used for the electrical system of vehicles, including sensors, control modules, and lighting equipment, to ensure reliable electrical connections.

2. Industrial automation: applied to PLCs, frequency converters, sensors, and other industrial equipment, providing safe and stable power and signal connections.

3. Outdoor equipment: such as outdoor lighting, surveillance cameras, etc., waterproof connections in natural environments are widely used.

4. New energy: Provide efficient electrical connections in fields such as electric vehicles, solar power generation, and wind turbines.

Precautions for use
1. Pre installation inspection: Before connecting, ensure that the contact surface between the connector and the wire is clean and undamaged to maintain good electrical contact.

2. Regular maintenance: Regularly inspect and replace the sealing ring to ensure long-lasting waterproof performance.

3. Avoid overloading: During use, avoid applying excessive tension or pressure to prevent damage or poor connections.

4. Keep clean: During installation and use, keep the connector dry and clean to prevent dirt and moisture from affecting performance.

summary
A Size (female body and female pin) assembled waterproof connector (quick lock type) has become an important choice for electrical connections in multiple industries due to its superior design and high reliability. It not only provides fast and stable connections, but also excels in waterproofing and durability. Welcome to contact the technician!
