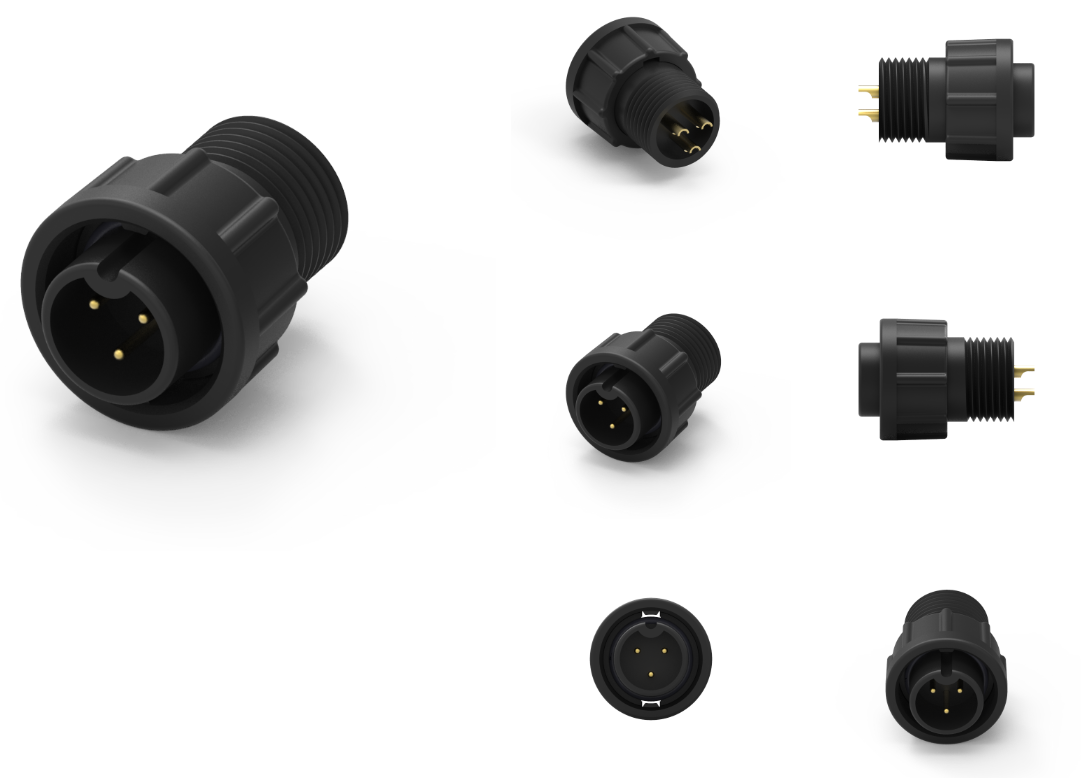

品名：B Size 公头防水连接器
1.材料：
1-1.外壳：PA66
1-2.触点：黄铜
1-3. 垫片：硅胶
1-4. 六角螺母：PA66
2.完成
2-1.触点：镀金
3.电气规格：
3-1.额定电流：5A
3-2.额定电压：250V
3-3. 防水等级：IP67
4.环境：
4-1.0工作温度：-40℃~105℃
品牌：科斯达开关KSDKG
产地：中国东莞
B Size 公头防水连接器 概述
B Size 公头防水连接器是一种广泛使用于电气连接领域的连接器，特别是在需要较高防水和耐候性能的应用场合。此类型连接器通常应用于汽车、工业设备、户外照明和其他电子设备，确保在恶劣环境条件下也能保持有效的电气连接。
主要特点
1.防水性能：
高防护等级：B Size 公头防水连接器通常具有IP67或更高的防护等级，能够有效阻挡水和灰尘的侵入。
密封设计：连接器采用高品质的密封材料，如硅胶和橡胶，确保连接的防水性。
2.坚固耐用：
耐高温和耐腐蚀：使用工程塑料和金属材料，通常具有良好的耐腐蚀性和耐高温性能。
抗冲击和振动能力：设计上考虑了抗冲击和振动的需求，适合各种工业应用。
3.公头设计：
方便连接：公头连接器通过插入式设计与母头连接，操作简便，连接稳定。
多种引脚配置：提供多种引脚配置和尺寸选择，以适应不同的电气连接需求。
4.快速安装：
便捷拆卸：用户在安装和维护时，可以快速拆卸，节省时间并提高工作效率。
良好的重用性：可以根据需要进行反复连接和断开，适合动态应用场景。
应用领域
1.汽车行业：用于车载电气系统、传感器、LED灯等，为车辆电子设备提供稳定的电源和信号。
2.工业自动化：广泛应用于PLC、变频器、传感器等工业设备，确保稳定可靠的电气连接。
3.户外设备：例如户外照明、安防监控及其他需要防水的电子设备，确保在多种气候条件下正常工作。
4.航天和铁路：在极端环境下，保障设备的可靠运行。
使用注意事项
1.安装检查：在连接之前，检查连接器及插头的状态，确保无损坏及污垢。
2.保持干燥：连接器在未使用时应保持干燥，以防水分进入内部影响性能。
3.定期维护：定期检查密封圈和连接点，确保防水性能无缺陷。
4.遵循额定参数：确保在连接时遵循产品的额定电压和电流参数，避免超负荷运行。
总结
B Size 公头防水连接器凭借其出色的防水性能和优良的结构设计，为各种电气应用提供了可靠的连接解决方案。无论是在汽车、工业还是户外设备领域，其良好的性能都能满足用户的需求。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！
Product Name: B Size Male Waterproof Connector
1. Materials:
1-1. Shell: PA66
1-2. Contact: Brass
1-3. Gasket: Silicone
1-4. Hexagon nut: PA66
2. Complete
2-1. Contact: Gold plating
3. Electrical specifications:
3-1. Rated current: 5A
3-2. Rated voltage: 250V
3-3. Waterproof grade: IP67
4. Environment:
4-1.0 Operating temperature:- 40℃~105℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Overview of B Size Male Waterproof Connector
B Size male waterproof connector is a widely used connector in the field of electrical connections, especially in applications that require high waterproof and weather resistance performance. This type of connector is commonly used in automobiles, industrial equipment, outdoor lighting, and other electronic devices to ensure effective electrical connections even under harsh environmental conditions.
main features
1. Waterproof performance:
High protection level: B Size male waterproof connectors typically have an IP67 or higher protection level, which can effectively block the intrusion of water and dust.
Sealing design: The connector uses high-quality sealing materials such as silicone and rubber to ensure waterproof connection.
2. Durable and sturdy:
High temperature resistance and corrosion resistance: Using engineering plastics and metal materials, they usually have good corrosion resistance and high temperature resistance.
Resistance to impact and vibration: The design takes into account the requirements for resistance to impact and vibration, making it suitable for various industrial applications.
3. Public head design:
Convenient connection: The male connector is connected to the female connector through a plug-in design, making it easy to operate and stable to connect.
Multiple pin configurations: Provides multiple pin configurations and size options to meet different electrical connection requirements.
4. Quick installation:
Convenient disassembly: Users can quickly disassemble during installation and maintenance, saving time and improving work efficiency.
Good reusability: It can be repeatedly connected and disconnected as needed, suitable for dynamic application scenarios.
application area
1. Automotive industry: used for in car electrical systems, sensors, LED lights, etc., providing stable power and signals for vehicle electronic devices.
2. Industrial automation: widely used in industrial equipment such as PLCs, frequency converters, sensors, etc., to ensure stable and reliable electrical connections.
3. Outdoor equipment: such as outdoor lighting, security monitoring, and other electronic devices that require waterproofing to ensure normal operation in various weather conditions.
4. Aerospace and railway: Ensuring reliable operation of equipment in extreme environments.
Precautions for use
1. Installation inspection: Before connecting, check the status of the connector and plug to ensure that there is no damage or dirt.
2. Keep dry: The connector should be kept dry when not in use to prevent water from entering the interior and affecting performance.
3. Regular maintenance: Regularly check the sealing ring and connection points to ensure that the waterproof performance is defect free.
4. Follow rated parameters: Ensure that the product's rated voltage and current parameters are followed during connection to avoid overload operation.
summary
The B Size male waterproof connector provides a reliable connection solution for various electrical applications with its excellent waterproof performance and excellent structural design. Whether in the automotive, industrial, or outdoor equipment fields, its excellent performance can meet the needs of users. If you have further questions or need specific technical parameters, please feel free to contact the technician!
