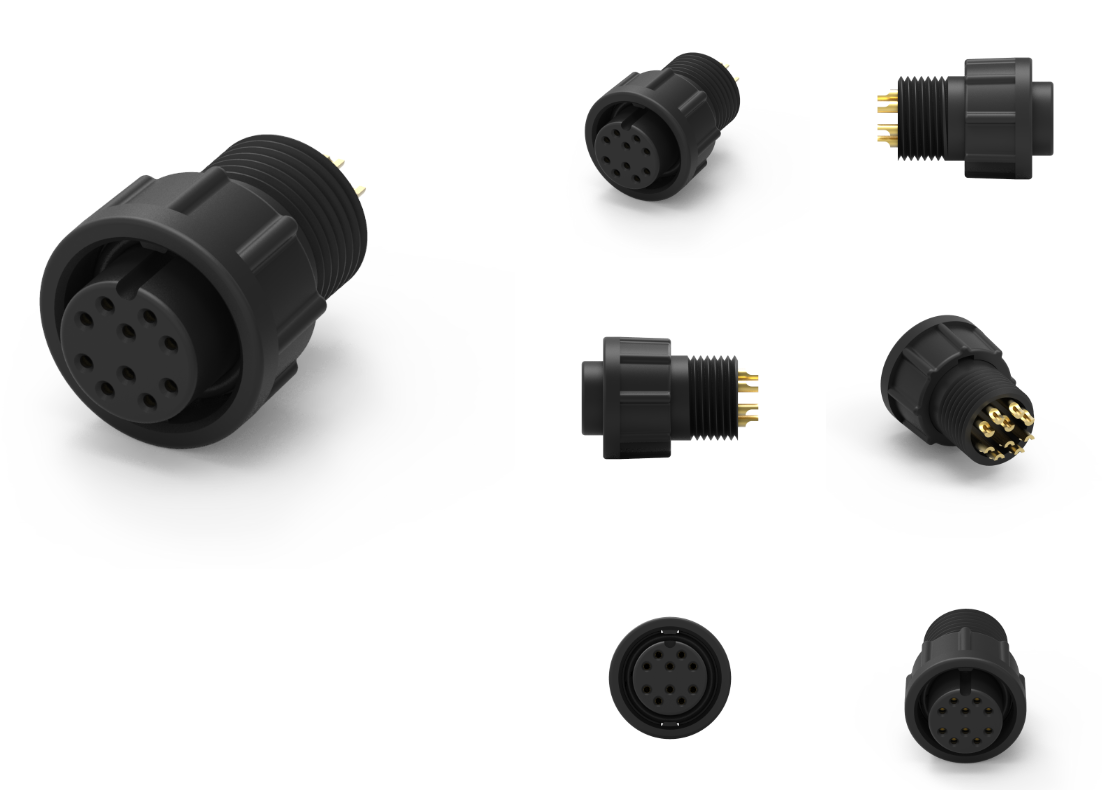

品名：B Size 母头防水连接器
1.材料：
1-1.外壳：PA66
1-2.触点：黄铜
1-3.O型圈：硅胶
1-4.锁紧螺母：PA66
2.完成
2-1.触点：镀金
3.电气规格：
3-1.额定电流：5A
3-2.额定电压：250V
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-20℃~80℃
品牌：科斯达开关KSDKG
产地：中国东莞
B Size 母头防水连接器 概述
B Size 母头防水连接器是一种专门设计用于电气连接的组件，广泛应用于需要提供防水和可靠连接的领域，如汽车、工业控制、户外设备等。它的设计旨在确保在潮湿、多尘和苛刻环境下仍能保持稳定的电气性能。
主要特点
1.防水性能：
高防护等级：B Size 母头防水连接器通常设计为具备IP67或更高的防护等级，有效防止水和灰尘的侵入。
优质密封设计：采用高性能的密封材料（如硅胶或橡胶），确保连接部位的密封性。
2.耐用性：
材料选择：通常使用耐高温、耐腐蚀的塑料和金属材料制成，能够在恶劣的环境中长期使用。
抗冲击性：设计上考虑了外力冲击，保证连接器具备良好的抗震动和抗冲击能力。
3.母头设计：
稳定连接：与公头连接器配合使用，插入后可实现稳定的电气连接，防止因振动造成的松动。
多种标准：提供多种引脚配置以适应不同电气要求，满足多种设备的应用场合。
4.安装便利：
快速连接和断开：设计使得用户能够快速进行连接与拆卸，便于维护和更换。
重复使用：母头连接器可反复使用，具有良好的重用性和经济性。
应用领域
1.汽车行业：应用于汽车电子系统，包括引擎控制单元、传感器及照明系统，确保安全可靠的电气连接。
2.工业自动化：广泛用于 PLC、变频器、传感器等设备，提供稳定的电气连接，适应各种工业环境。
3.户外设备：如户外照明、安防监控等设备，保证在各种气候条件下正常运行。
4.航空航天和铁路：在恶劣环境下应用于关键设备，确保长时间可靠运行。
使用注意事项
1.连接前检查：确保连接器和插头没有损坏、污垢，保持连接面干燥清洁。
2.定期维护：检查密封圈和连接状态，确保防水性能良好，避免水分进入影响电气性能。
3.遵循设计规格：避免在超过额定电压和电流的情况下使用，防止损坏连接器。
4.正确插入：确保按正确方向插入连接器，避免引脚变形或破损。
总结
B Size 母头防水连接器以其优越的防水性能和耐用设计，成为各种电气连接应用的理想选择。在汽车、工业及户外设备等多个领域中，都能找到其可靠的身影。如果您需要更多的技术细节或针对特定应用的建议，欢迎联系技术员！
Product Name: B Size Female Waterproof Connector
1. Materials:
1-1. Shell: PA66
1-2. Contact: Brass
1-3. O-ring: Silicone
1-4. Lock nut: PA66
2. Complete
2-1. Contact: Gold plating
3. Electrical specifications:
3-1. Rated current: 5A
3-2. Rated voltage: 250V
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 20℃~80℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Overview of B Size Female Waterproof Connector
B Size female waterproof connector is a component specially designed for electrical connections, widely used in fields that require waterproof and reliable connections, such as automobiles, industrial controls, outdoor equipment, etc. Its design aims to ensure stable electrical performance even in humid, dusty, and harsh environments.
main features
1. Waterproof performance:
High protection level: B Size female waterproof connectors are typically designed to have an IP67 or higher protection level, effectively preventing the intrusion of water and dust.
High quality sealing design: using high-performance sealing materials (such as silicone or rubber) to ensure the sealing of the connection parts.
2. Durability:
Material selection: It is usually made of high temperature resistant and corrosion-resistant plastic and metal materials, which can be used for a long time in harsh environments.
Impact resistance: The design takes into account external impact to ensure that the connector has good resistance to vibration and impact.
3. Mother head design:
Stable connection: Used in conjunction with a male connector, it can achieve stable electrical connection after insertion, preventing loosening caused by vibration.
Multiple standards: Provides multiple pin configurations to meet different electrical requirements and meet the application scenarios of various devices.
4. Easy installation:
Quick connection and disconnection: The design allows users to quickly connect and disconnect, making it easy to maintain and replace.
Reusable: The female connector can be reused repeatedly, with good reusability and economy.
application area
1. Automotive industry: Applied to automotive electronic systems, including engine control units, sensors, and lighting systems, to ensure safe and reliable electrical connections.
2. Industrial automation: widely used in equipment such as PLCs, frequency converters, sensors, etc., providing stable electrical connections and adapting to various industrial environments.
3. Outdoor equipment: such as outdoor lighting, security monitoring, etc., to ensure normal operation under various weather conditions.
4. Aerospace and Railway: Applied to critical equipment in harsh environments to ensure long-term reliable operation.
Precautions for use
1. Pre connection inspection: Ensure that the connector and plug are not damaged or dirty, and keep the connection surface dry and clean.
2. Regular maintenance: Check the sealing ring and connection status to ensure good waterproof performance and prevent moisture from entering and affecting electrical performance.
3. Follow the design specifications: Avoid using it beyond the rated voltage and current to prevent damage to the connector.
4. Correct insertion: Ensure that the connector is inserted in the correct direction to avoid pin deformation or damage.
summary
The B-size female waterproof connector has become an ideal choice for various electrical connection applications due to its superior waterproof performance and durable design. Its reliable presence can be found in various fields such as automotive, industrial, and outdoor equipment. If you need more technical details or advice for specific applications, please feel free to contact a technician!
