KSD-WP-20F2-02-11

KSD-WP-20F2-02-11

  • 产品特性
  • 应用范围

图纸下载 样品申请

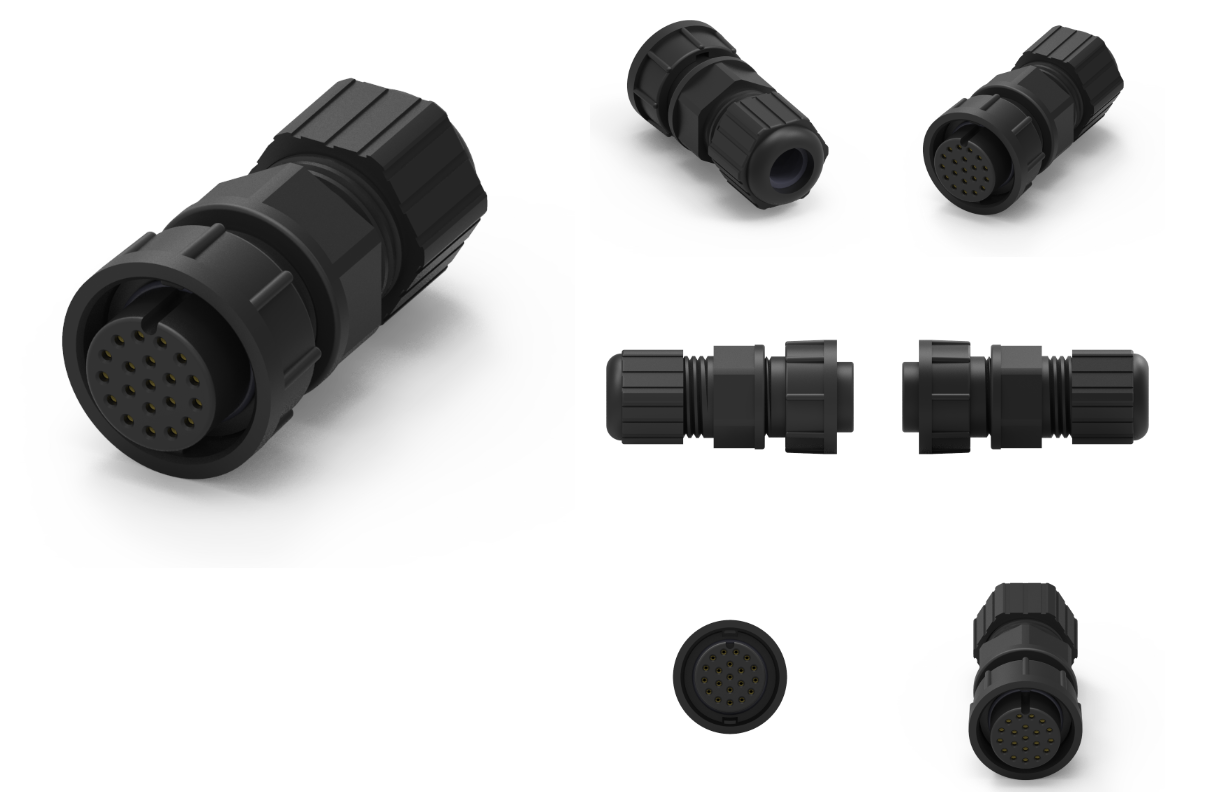

品名：C Size 母头防水连接器
1.材料：
1-1.外壳：PA66
1-2.触点：黄铜
1-3.O型圈：硅胶
1-4. 六角螺母：PA66
3.完成：
2-1.触点：镀金
3.电气规格：
3-1.额定电流：5A
3-2.额定电压：250V
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-20℃~80℃
品牌：科斯达开关KSDKG
产地：中国东莞


C Size 母头防水连接器 概述
C Size 母头防水连接器是一种设计用于提供可靠电气连接的重要组件，通常与公头连接器配合使用。这种连接器广泛应用于需要防水、防尘和耐用性的场合，如汽车电子、工业设备、户外机械及其他恶劣环境下的电气连接。

主要特点
1.防水性能：
高防护等级：C Size 母头防水连接器通常达到IP67或更高的防护等级，能够有效防止水和灰尘的侵入。
密封设计：采用高性能密封材料（如硅胶和橡胶），确保连接部位的防水性，避免电气故障。

2.耐用性：
优质材料：使用耐高温、抗腐蚀的塑料和金属材料，能够在各种苛刻环境中工作。
抗冲击性：设计上增强了抗震动和冲击的能力，适合用于工业应用和移动设备。

3.母头设计：
稳定连接：与公头连接后，提供稳固和可靠的电气连接，适合高频繁插拔的应用。
多样化配置：提供多种引脚配置，满足不同电气需求和设备的应用。

4.便捷安装：
快速连接与断开：设计考虑了用户操作的便利性，使得插拔更加容易，节省了维护时间。
重复使用性能：C Size 母头连接器具备较高的重复使用性，经济且环保。

应用领域
1.汽车行业：广泛用于汽车的电气系统，如引擎控制单元、传感器和照明等，确保安全与可靠的电气连接。

2.工业自动化：在机械设备、PLC和变频器等领域提供稳定的电气连接，适应各种工业环境。

3.户外设备：适用于户外照明、安防监控和其他公共设施，确保在各类天气下正常运行。

4.航空航天与铁路：在严格的环境条件下使用，确保关键设备的稳定运行及安全。

使用注意事项
1.连接前检查：确保连接器和插头无损坏和污垢，保持安装面清洁干燥。

2.定期维护：定期检查密封圈和连接状态，以确保防水性能和可靠性。

3.遵循规格：确保在额定电压和电流范围内使用，避免因超负荷而损坏连接器。

4.正确插入：按正确方向插入连接器，避免引脚变形或损坏，确保连接牢固。

总结
C Size 母头防水连接器凭借其优异的防水性能和耐用设计，成为多个行业可靠的电气连接解决方案。它在汽车、工业、户外设备等领域的应用提供了安全和稳定的连接。如果您需要进一步的信息或技术咨询，欢迎联系技术员！



Product Name: C Size Female Waterproof Connector
1. Materials:
1-1. Shell: PA66
1-2. Contact: Brass
1-3. O-ring: Silicone
1-4.  Hexagon nut: PA66
3. Complete:
2-1. Contact: Gold plating
3. Electrical specifications:
3-1. Rated current: 5A
3-2. Rated voltage: 250V
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 20℃~80℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


Overview of C Size Female Waterproof Connector
C Size female waterproof connector is an important component designed to provide reliable electrical connections, typically used in conjunction with male connectors. This type of connector is widely used in applications that require waterproof, dustproof, and durability, such as automotive electronics, industrial equipment, outdoor machinery, and other electrical connections in harsh environments.

main features
1. Waterproof performance:
High protection level: C Size female waterproof connectors typically achieve a protection level of IP67 or higher, effectively preventing the intrusion of water and dust.
Sealing design: High performance sealing materials (such as silicone and rubber) are used to ensure the waterproofness of the connection parts and avoid electrical failures.

2. Durability:
High quality materials: using high temperature resistant and corrosion-resistant plastic and metal materials, capable of working in various harsh environments.
Impact resistance: The design enhances the ability to resist vibration and impact, making it suitable for industrial applications and mobile devices.

3. Mother head design:
Stable connection: After being connected to the male head, it provides a stable and reliable electrical connection, suitable for applications with high frequency of plugging and unplugging.
Diversified configuration: Provides multiple pin configurations to meet different electrical needs and device applications.

4. Convenient installation:
Quick connection and disconnection: The design considers the convenience of user operation, making insertion and removal easier and saving maintenance time.
Reusable performance: The C Size female connector has high reusability, is economical, and environmentally friendly.

application area
1. Automotive industry: widely used in electrical systems of automobiles, such as engine control units, sensors, and lighting, to ensure safe and reliable electrical connections.

2. Industrial automation: Provide stable electrical connections in the fields of mechanical equipment, PLC, and frequency converters to adapt to various industrial environments.

3. Outdoor equipment: Suitable for outdoor lighting, security monitoring, and other public facilities to ensure normal operation in various weather conditions.

4. Aerospace and Railway: Used under strict environmental conditions to ensure the stable operation and safety of critical equipment.

Precautions for use
1. Pre connection inspection: Ensure that the connector and plug are free of damage and dirt, and keep the installation surface clean and dry.

2. Regular maintenance: Regularly check the sealing ring and connection status to ensure waterproof performance and reliability.

3. Follow specifications: Ensure use within the rated voltage and current range to avoid damaging the connector due to overload.

4. Correct insertion: Insert the connector in the correct direction to avoid pin deformation or damage and ensure a secure connection.

summary
The C Size female waterproof connector, with its excellent waterproof performance and durable design, has become a reliable electrical connection solution for multiple industries. It provides safe and stable connections for applications in automotive, industrial, outdoor equipment, and other fields. If you need further information or technical consultation, please feel free to contact the technician!
