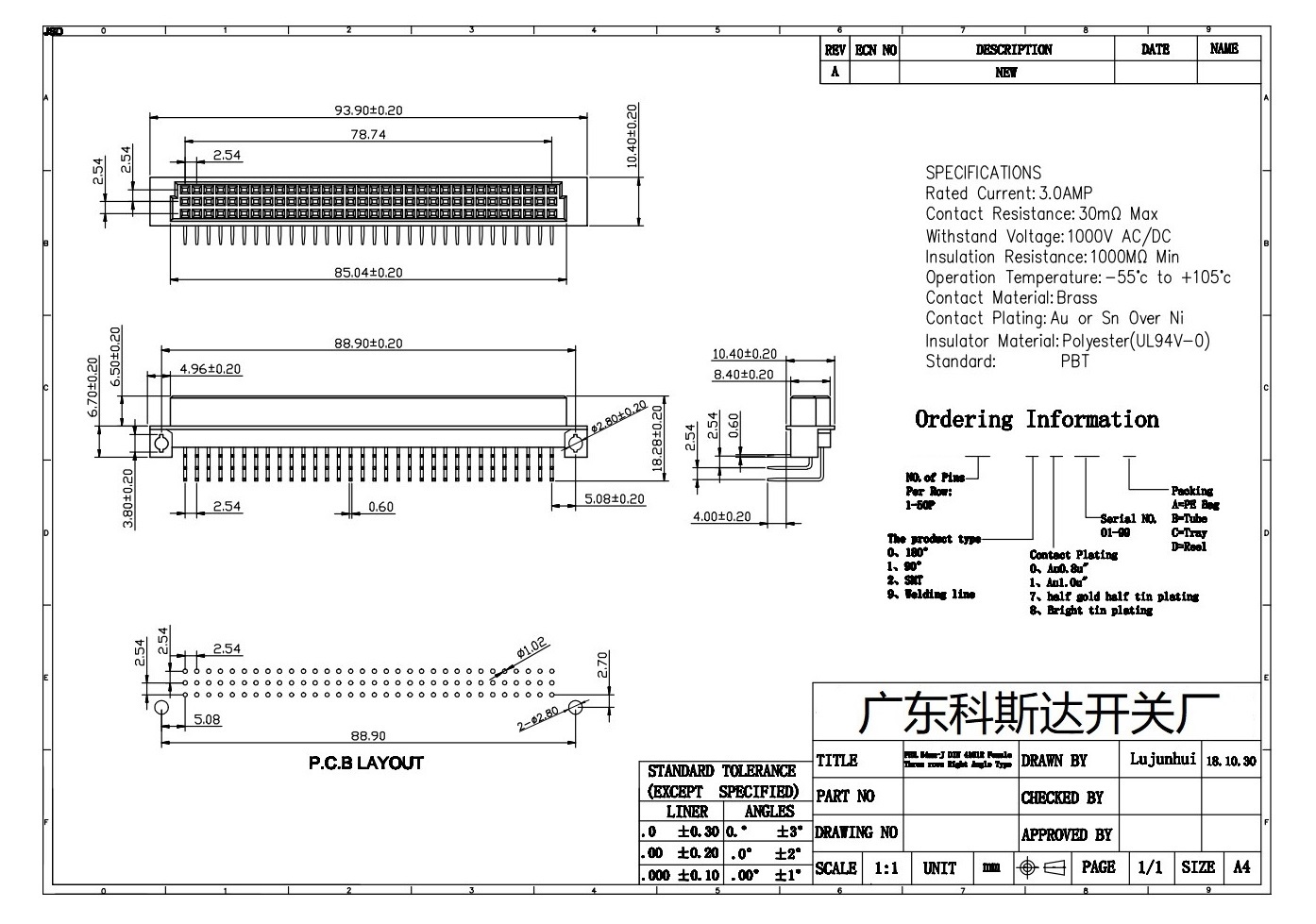

DIN 41612 连接器
技术指标:
额定电流 3.0AMP
接触电阻 30mΩ Max
耐电压 1000V AC/DC
绝缘电阻 1000mΩ
工作温度 ﹣55℃ to +105℃
接触材料 Brass
接触镀层 Au And Sn over Ni
固定材料 Phosphor Bronze
固定镀层 Sn over Ni
外壳材料 PBT+30%GF(UL94V-0)
覆盖材料 PBT+30%GF(UL94V-0)
包装:Tray交货时间:7~15 Day
品牌 科斯达 KOSOD KSDKG
DIN 41612 connectors
Technical indicators:
Rated current 3.0AMP
Contact resistance 30mΩ Max
Withstand voltage 1000V AC/DC
Insulation resistance 1000mΩ
Operating temperature ﹣55℃ to +105℃
Contact material Brass
Contact Plating Au And Sn over Ni
Fixing material Phosphor Bronze
Fixed coating Sn over Ni
Housing material PBT+30%GF(UL94V-0)
Covering material PBT+30%GF(UL94V-0)
Packing: Tray Delivery Time: 7~15 Days
Brand KOSOD KOSOD KSDKG
