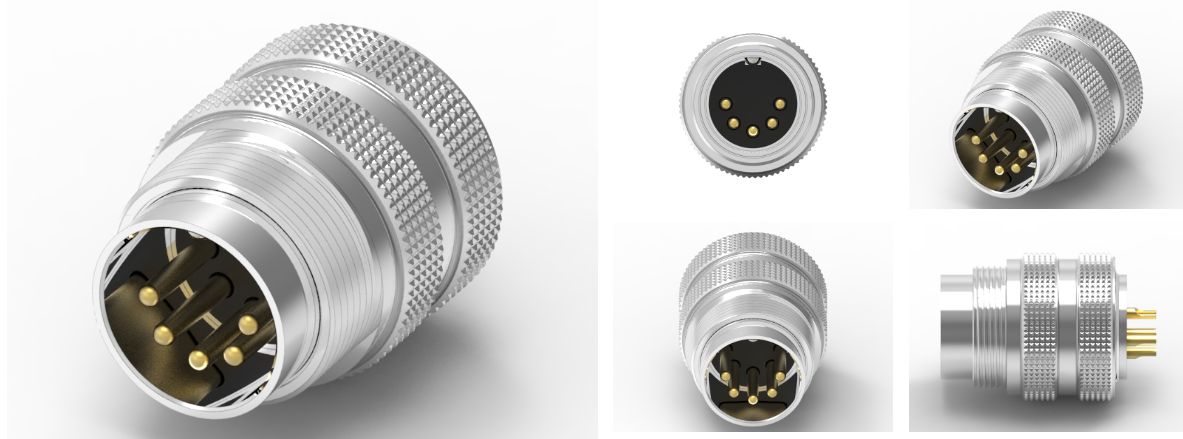

品名：DIN M16 公头线端成型式防水连接器
1.材料
1-1.房屋：PA66；颜色：黑色
1-2.触点：黄铜
1-3.编号：黄铜
1-4.O环：三元乙丙橡胶；颜色：黑色
1-5.外壳：黄铜。
2.完成：
2-1.触点：最小镀金微英寸
底板：镍
2-2.编号：镀镍
2-3.外壳：镀镍
3.电气规格：
3-1.额定电流：3~8P 5A；12~14P3A
3-2.额定电压：3~8P 250V；12~14P 60V
3-3.防水等级：IP67
4.环境：
4-1.0工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
品牌：科斯达开关KSDKG
产地：中国东莞



DIN M16 公头线端成型式防水连接器是一种在工业、自动化和电子设备中广泛使用的高性能连接器。它具有特定的设计和特点，以下是详细的描述：
主要特点：
1.DIN标准：
符合DIN标准，确保了产品的质量与互换性，能够与其他标准连接器配合使用。

2.M16规格：
连接器的外径为16毫米，适用于多种电气和电子连接需求。

3.公头设计：
该连接器的公头部分用于插入母头连接器，特点在于其设计能够更好地适应连接方式。

4.前锁机制：
前锁设计可确保连接器在插入后锁紧，防止意外脱落。在运行或移动环境中，这种锁定方式提供了额外的安全性。

5.焊线式连接：
焊线式设计使得连接器可直接与电缆进行焊接，提供稳固且耐用的电气连接，适合高振动或高应力环境。

6.防水特性：
通常具有防水等级（如IP67），可以有效防止水和灰尘的侵入，适合户外及恶劣环境使用。

应用领域：
工业自动化：广泛应用于机器人、传感器和控制系统等设备中。

交通运输：用于各种交通工具中的电气连接，包括汽车、轨道车辆等。

建筑与基础设施：在电气系统中提供可靠的连接，尤其是在潮湿或多尘环境中。

通讯设备：用于电信和网络设备中的电源及信号连接。

选择和使用注意事项：
电气规格：
确认连接器的额定电压和电流适合具体的应用要求，以避免过载。

焊接工艺：
在焊接连接器时，注意焊接温度和时间，以确保连接牢固且不损坏连接器。

防护等级：
选择合适的防护等级（如IP等级），以满足特定应用环境的要求。

维护与检查：
定期检查连接器的状态，确保没有磨损或损坏，保持良好的电气连接。

总之，DIN M16 公头前锁焊线式防水连接器凭借其可靠的设计和强大的功能，能够在各种苛刻环境中保持稳定的连接，适合多种工业应用。如果您有特定的技术需求或其他疑问，欢迎联系技术员！



Product Name: DIN M16 Male Wire End Forming Waterproof Connector
1. Materials
1-1. House: PA66； Color: Black
1-2. Contact: Brass
1-3. Number: Brass
1-4. O-ring: EPDM rubber; Color: Black
1-5. Shell: Brass.
2. Complete:
2-1. Contact: Minimum gold-plated micro inch
Bottom plate: Nickel
2-2. Number: Nickel plating
2-3. Shell: Nickel plated
3. Electrical specifications:
3-1. Rated current: 3-8P 5A; 12~14P3A
3-2. Rated voltage: 3-8P 250V; 12~14P 60V
3-3. Waterproof grade: IP67
4. Environment:
4-1.0 Operating temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Brand: Coaster Switch KSDKG
Origin: Dongguan, China



DIN M16 male end molded waterproof connector is a high-performance connector widely used in industrial, automation, and electronic equipment. It has specific designs and features, and the following is a detailed description:
Main features:
1. DIN standard:
Complies with DIN standards, ensuring product quality and interchangeability, and can be used in conjunction with other standard connectors.

2. M16 specification:
The outer diameter of the connector is 16 millimeters, suitable for various electrical and electronic connection needs.

3. Public head design:
The male part of this connector is used to insert the female connector, and its feature is that its design can better adapt to the connection method.

4. Front locking mechanism:
The front lock design ensures that the connector locks securely after insertion, preventing accidental detachment. This locking method provides additional security in operating or mobile environments.

5. Solder wire connection:
The wire bonding design allows the connector to be directly soldered to the cable, providing a stable and durable electrical connection, suitable for high vibration or high stress environments.

6. Waterproof characteristics:
It usually has a waterproof rating (such as IP67), which can effectively prevent water and dust from entering, suitable for outdoor and harsh environments.

Application areas:
Industrial automation: widely used in equipment such as robots, sensors, and control systems.

Transportation: Used for electrical connections in various modes of transportation, including cars, rail vehicles, etc.

Architecture and infrastructure: Provide reliable connections in electrical systems, especially in humid or dusty environments.

Communication equipment: used for power and signal connections in telecommunications and network equipment.

Precautions for selection and use:
Electrical specifications:
Confirm that the rated voltage and current of the connector are suitable for specific application requirements to avoid overload.

Welding process:
When welding connectors, pay attention to the welding temperature and time to ensure a secure connection without damaging the connector.

Protection level:
Choose the appropriate level of protection (such as IP rating) to meet the requirements of specific application environments.

Maintenance and Inspection:
Regularly check the status of the connectors to ensure no wear or damage and maintain good electrical connections.

In summary, the DIN M16 male front lock solder wire waterproof connector, with its reliable design and powerful functionality, can maintain stable connections in various harsh environments and is suitable for a variety of industrial applications. If you have specific technical requirements or other questions, please feel free to contact a technician!
