KSD-DI-14F3-01-11

KSD-DI-14F3-01-11

  • 产品特性
  • 应用范围

图纸下载 样品申请

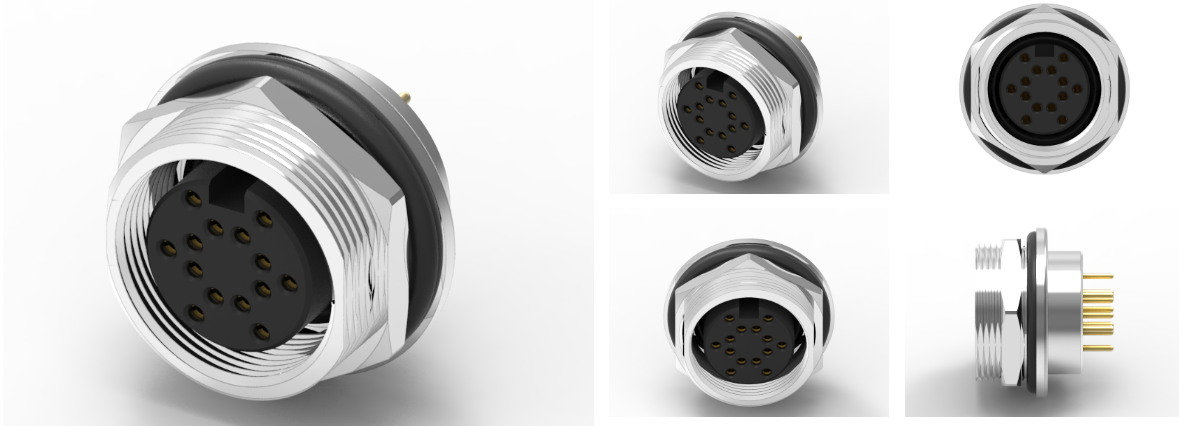

品名：DIN M16 母头前锁插板式防水连接器
1.材料：
1-1.住房：PA66；颜色：黑色。
1-2.触点：黄铜
1-3.编号：黄铜
1-4.O环：三元乙丙橡胶；颜色：黑色
1-5.外壳：黄铜。
2.完成：
2-1.触点：金闪光微英寸最小。
底板：镍
2-2.编号：镀镍
2-3.外壳：镀镍
3.电气规格：
3-1.额定电流：3A
3-2.额定电压：60V
3-3.防水等级：IP67
4.环境：
4-1.0工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞



DIN M16 母头前锁插板式防水连接器是一种符合 DIN 标准的高性能电气连接器，广泛应用于工业、自动化、运输和设备等领域。其设计旨在提供高效、可靠的电气连接，并具备优秀的防水性能，适合多种复杂环境。

主要特点
1.标准化设计：
符合 DIN M16 标准，确保与其他 DIN 连接器的良好兼容性和互换性。

2.母头前锁结构：
采用前锁的设计，方便进行快速连接与拆卸。在插入后，前锁结构确保连接牢固，防止意外脱落。

3.插板式设计：
插板式连接方式使得连接更简便，适合在需要频繁拆装的场合使用。

4.优良的防水性能：
连接器通常具备 IP67 防水等级，能够有效防止水和灰尘的侵入，适用于潮湿和恶劣的工作环境。

5.多种引脚配置：
提供多样化的引脚数量选项，可以根据应用需求选择合适的引脚配置，例如 2 针到 19 针等。

6.耐用材料：
通常使用高强度的塑料和金属材料制造，具备良好的耐腐蚀性和耐磨损性，能够承受严酷的工作条件。

7.紧凑设计：
产品外形设计精巧，适用于空间受限的环境，同时不影响连接的可靠性。

应用领域
工业自动化：用于传感器、控制器和执行器之间的电气连接，确保设备高效运行。

交通运输：应用于汽车、火车、航空等交通工具的电气系统，保证安全和稳定。

医疗设备：在医疗设备中提供稳定的电气连接，以确保设备的可靠性和精准性。

设备与仪器：适用于实验室设备和仪器，提供可靠的电源和信号连接。

安装与使用注意事项
1.焊接质量：
在组装前，焊接过程中要确保焊接接头的质量，避免接触不良或短路。

2.安装环境：
确保连接器安装在合适的环境中，避免极端温度和湿度对连接器造成影响。

3.定期检查：
定期检查连接器的完好性，确保没有水分或灰尘侵入，并在发现问题时及时处理。

4.使用专业工具：
在安装和维护过程中，使用专业工具以保证连接器的安全性和稳定性。

小结
DIN M16 母头前锁插板式防水连接器以其优良的防水性能和可靠的连接设计而广受欢迎，适用于各种工业和电子设备中。它提供了高效的电气连接解决方案，为用户的工程应用提供了出色的安全性和可靠性。如果您有更具体的应用需求或问题，请联系技术员！



Product Name: DIN M16 Female Head Front Lock Plug Plate Waterproof Connector
1. Materials:
1-1. Housing: PA66； Color: Black.
1-2. Contact: Brass
1-3. Number: Brass
1-4. O-ring: EPDM rubber; Color: Black
1-5. Shell: Brass.
2. Complete:
2-1. Contact: Gold flash micro inch minimum.
Bottom plate: Nickel
2-2. Number: Nickel plating
2-3. Shell: Nickel plated
3. Electrical specifications:
3-1. Rated current: 3A
3-2. Rated voltage: 60V
3-3. Waterproof grade: IP67
4. Environment:
4-1.0 Operating temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China



The DIN M16 female front locking plug-in waterproof connector is a high-performance electrical connector that complies with DIN standards and is widely used in industries, automation, transportation, and equipment. Its design aims to provide efficient and reliable electrical connections, with excellent waterproof performance, suitable for a variety of complex environments.

main features
1. Standardized design:
Compliant with DIN M16 standard, ensuring good compatibility and interchangeability with other DIN connectors.

2. Front lock structure of female head:
Adopting a front lock design, it is convenient for quick connection and disassembly. After insertion, the front lock structure ensures a secure connection to prevent accidental detachment.

3. Plug in design:
The plug-in connection method makes the connection more convenient and suitable for use in situations that require frequent disassembly and assembly.

4. Excellent waterproof performance:
Connectors typically have an IP67 waterproof rating, which can effectively prevent the intrusion of water and dust, making them suitable for humid and harsh working environments.

5. Multiple pin configurations:
Provide a variety of pin count options, allowing for the selection of suitable pin configurations based on application requirements, such as 2-pin to 19 pin configurations.

6. Durable materials:
Usually made of high-strength plastic and metal materials, it has good corrosion resistance and wear resistance, and can withstand harsh working conditions.

7. Compact design:
The product has a sophisticated exterior design, suitable for environments with limited space, while not affecting the reliability of the connection.

application area
Industrial automation: used for electrical connections between sensors, controllers, and actuators to ensure efficient operation of equipment.

Transportation: Electrical systems used in vehicles such as cars, trains, and airplanes to ensure safety and stability.

Medical equipment: Provide stable electrical connections in medical devices to ensure their reliability and accuracy.

Equipment and Instruments: Suitable for laboratory equipment and instruments, providing reliable power and signal connections.

Installation and usage precautions
1. Welding quality:
Before assembly, ensure the quality of the welded joints during the welding process to avoid poor contact or short circuits.

2. Installation environment:
Ensure that the connector is installed in a suitable environment to avoid extreme temperature and humidity affecting the connector.

3. Regular inspection:
Regularly check the integrity of the connector to ensure that no moisture or dust enters, and promptly address any issues found.

4. Use professional tools:
During installation and maintenance, use professional tools to ensure the safety and stability of the connector.

Summary
The DIN M16 female front lock plug-in waterproof connector is widely popular for its excellent waterproof performance and reliable connection design, and is suitable for various industrial and electronic devices. It provides efficient electrical connection solutions, offering excellent safety and reliability for users' engineering applications. If you have more specific application requirements or questions, please contact the technician!
