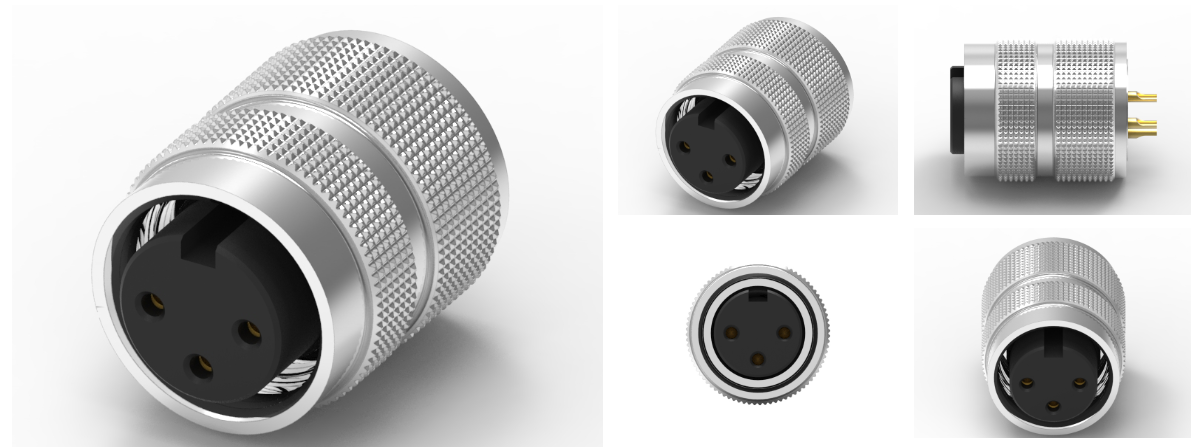

品名：DIN M16 母头线端成型式防水连接器
1.材料
1-1.外壳：PA66：颜色：黑色
1-2.触点：黄铜。
1-3.编号：黄铜。
1-4.外壳：锌合金
1-5.弹簧：不锈钢。
1-6.-O-RING：三元乙丙橡胶
2.完成：
2-1. 螺母：全部镀镍
2-2.外壳：全部镀镍
3.电气规格：
3-1. 额定电流：3~8P5A；12P~14P3A
3-2.额定电压：3~8P 250V；12~14P60V
3-3.防水等级：IP67
4.环境：
4-1.0工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞



DIN M16 母头线端成型式防水连接器
DIN M16 母头线端成型式防水连接器是一种符合DIN标准的连接器，专为要求高防水和可靠电气连接的应用设计。该连接器通常用于工业自动化、机械设备、运输、医疗器械等领域，提供可靠的电气接口并确保系统在恶劣环境下的稳定运行。

主要特点
1.符合DIN标准：
符合DIN M16标准，确保与其他DIN系列连接器的兼容性，简化设备设计和连接。

2.线端成型设计：
线端成型设计使连接方式更加简便，提供良好的连接性能，可以有效降低电气接触不良的风险。

3.优异的防水性能：
具备高达IP67防护等级，能够防止水和尘埃的侵入，适合在潮湿或多尘的环境中使用。

4.可靠的电气性能：
连接器设计经过严格的电气性能测试，确保低电阻、高传输效率，保障信号的稳定传输。

5.多种引脚配置：
提供多种引脚配置，通常从2针到19针不等，满足不同应用需求，支持多种电气信号传输。

6.耐用材质：
连接器通常采用高强度塑料和金属材料，具备良好的耐腐蚀性、抗冲击性和耐温性能，适应各种严苛条件。

7.便于安装和维护：
设计考虑了用户体验，连接器易于安装和拆卸，便于维护和更换。

应用领域
工业自动化：
用于控制系统、传感器、执行器之间的电气连接，确保工业设备的稳定运行。

电气设备：
适用于多种电气设备，如变频器、PLC等，提供可靠的信号和电源连接。

交通运输：
在汽车、飞机、船舶等交通工具中使用，保证各种系统的电气连通性。

医疗设备：
用于医疗设备和仪器，以实现安全、稳定的电气连接，满足医疗行业的标准。

安装与维护建议
1.正确安装：
确保在干燥的状态下进行安装，避免在潮湿环境中接触电气部分，确保连接紧固。

2.环境适应性：
在选择连接器时，仔细考虑使用环境，确保连接器的IP等级和材料适合应用场景。

3.定期维护：
定期检查连接器，以确保没有水分、污垢或磨损影响连接性能。
4.专业工具：
在进行安装和拆卸时，使用专用工具，确保连接器的安全和稳定性。

小结
DIN M16 母头线端成型式防水连接器提供了一种高效、可靠的解决方案，适合在多种复杂环境中使用。其出色的防水性能、稳定的电气性能和便捷的安装方式，使其成为电气连接领域的理想选择。如果您有更具体的应用需求或问题，请联系技术员！



Product Name: DIN M16 Female End Forming Waterproof Connector
1. Materials
1-1. Shell: PA66： Color: Black
1-2. Contact: Brass.
1-3. Number: Brass.
1-4. Shell: Zinc alloy
1-5. Spring: Stainless steel.
1-6. - O-RING: EPDM rubber
2. Complete:
2-1.  Nut: All nickel plated
2-2. Shell: All nickel plated
3. Electrical specifications:
3-1.  Rated current: 3-8P5A; 12P~14P3A
3-2. Rated voltage: 3-8P 250V; 12~14P60V
3-3. Waterproof grade: IP67
4. Environment:
4-1.0 Operating temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China



DIN M16 female wire end molded waterproof connector
The DIN M16 female end molded waterproof connector is a connector that complies with DIN standards and is designed for applications that require high waterproof and reliable electrical connections. This connector is commonly used in industrial automation, mechanical equipment, transportation, medical devices, and other fields to provide reliable electrical interfaces and ensure stable operation of the system in harsh environments.

main features
1. Compliant with DIN standards:
Compliant with DIN M16 standard, ensuring compatibility with other DIN series connectors, simplifying equipment design and connection.

2. End forming design:
The wire end forming design makes the connection method more convenient, provides good connection performance, and can effectively reduce the risk of poor electrical contact.

3. Excellent waterproof performance:
Featuring a protection level of up to IP67, it can prevent the intrusion of water and dust, making it suitable for use in damp or dusty environments.

4. Reliable electrical performance:
The connector design undergoes rigorous electrical performance testing to ensure low resistance, high transmission efficiency, and stable signal transmission.

5. Multiple pin configurations:
Provide multiple pin configurations, typically ranging from 2 to 19 pins, to meet different application needs and support multiple electrical signal transmissions.

6. Durable material:
Connectors are usually made of high-strength plastic and metal materials, which have good corrosion resistance, impact resistance, and temperature resistance, and can adapt to various harsh conditions.

7. Easy to install and maintain:
The design takes into account user experience, with connectors that are easy to install and remove, and convenient for maintenance and replacement.

application area
Industrial automation:
Used for electrical connections between control systems, sensors, and actuators to ensure stable operation of industrial equipment.

Electrical equipment:
Suitable for various electrical equipment, such as frequency converters, PLCs, etc., providing reliable signal and power connections.

Transportation:
Used in vehicles such as cars, airplanes, and ships to ensure electrical connectivity of various systems.

Medical equipment:
Used for medical equipment and instruments to achieve safe and stable electrical connections, meeting the standards of the medical industry.

Installation and maintenance recommendations
1. Correct installation:
Ensure installation is carried out in a dry state, avoid contact with electrical parts in humid environments, and ensure tight connections.

2. Environmental adaptability:
When choosing a connector, carefully consider the usage environment to ensure that the IP rating and material of the connector are suitable for the application scenario.

3. Regular maintenance:
Regularly inspect the connector to ensure that there is no moisture, dirt, or wear affecting the connection performance.
4. Professional tools:
When installing and disassembling, use specialized tools to ensure the safety and stability of the connector.

Summary
The DIN M16 female end molded waterproof connector provides an efficient and reliable solution, suitable for use in a variety of complex environments. Its excellent waterproof performance, stable electrical performance, and convenient installation make it an ideal choice in the field of electrical connections. If you have more specific application requirements or questions, please contact the technician!
