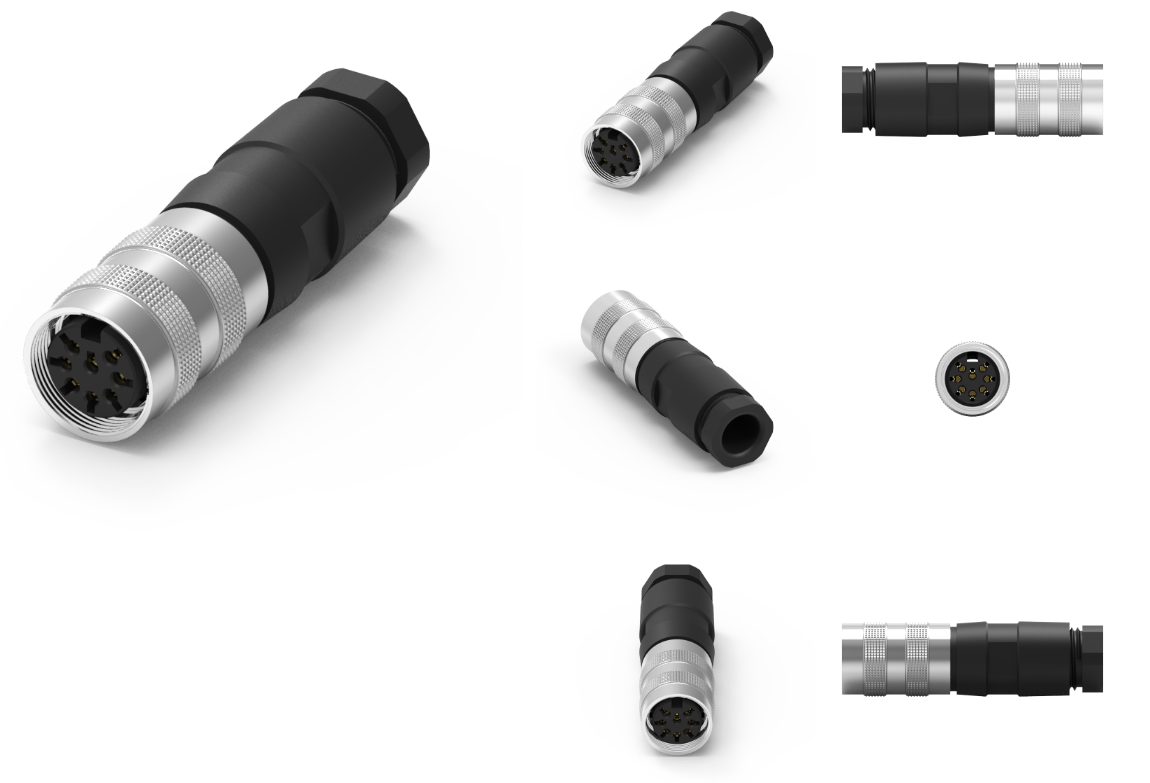

品名：DIN M16 母头组装式连接器
1.材料：
1-1.外壳：尼龙UL94V0；颜色：黑色
1-2.触点：3~8针磷青铜；12针黄铜
1-3.盖子：锌合金
1-4.灯体：锌合金
1-5.螺钉：SPCC
1-6.灯具：锌合金
1-7.隔离：聚氯乙烯
1-8.电话：黄铜
1-9.后身：尼龙+GF15%UL94V-0；颜色
1-10. SR：聚氯乙烯
2.完成：
2-1.触点：3~8针：
接触面积：金闪光镀层
焊接区域：锡
底板：镍
12针：
触点：镀金
2-2.CAP：镀镍
2-3.灯具：镀镍
2-4.夹具主体：镀镍
2-5.夹具主体：镀镍
2-6.涂层：夹具主体：镀镍
3.电气规格：
3-1.额定电流：3PIN~8PIN5A；12针3a
3-2.额定电压：3PIN~8PIN250V；12针60V
3-3.防水等级：IP40
4.环境：
4-1.0工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
DIN M16 母头组装式连接器是一种常用于工业和电子设备中的连接器，设计符合DIN标准，提供稳定的电气连接。以下是关于DIN M16 母头组装式连接器的详细描述：
主要特征：
1.标准化设计：
连接器遵循DIN（德国工业标准）M16规格，确保与其他DIN连接器的兼容性，方便集成到各种设备中。
2.母头接口：
DIN M16母头具有多个插针配置，适用于连接不同引线数的电缆，便于电气信号的传输。
3.防护等级：
该连接器通常具有防水和防尘特性，许多型号符合IP67或更高的防护等级，确保在恶劣环境中使用的可靠性。
4.耐用材料：
制造材料通常为高强度塑料或金属（如铝合金），具备优良的耐腐蚀性和抗机械冲击能力，适合长时间的工业应用。
5.组装便利性：
连接器设计为组装式，用户可以根据需要选择合适的导线和接头配置，简化安装过程。
6.锁紧机制：
配备旋转锁定或卡扣设计，确保连接稳固，减少因振动或拉扯导致的脱落风险。
7.电气性能：
其接触件设计良好，以确保低接触电阻和高信号完整性，适合各种信号和电源传输。
应用领域：
DIN M16 母头组装式连接器广泛应用于：
工业自动化设备
机械与机器人技术
通信与网络设备
医疗设备
交通控制系统
环境监测装备
安装和维护建议：
在安装连接器时，请确保接线端子正确连接，避免短路或接触不良。
定期检查连接器的密封状态，确保防水性能。
在高频率使用的环境中，建议定期更换连接器以保持最佳性能。
总结：
DIN M16 母头组装式连接器因其优越的防护性能、耐用性和灵活性，成为多种工业和电子应用中的理想选择，能够确保设备在各种环境中的安全与稳定运行。如果您有更具体的应用需求或问题，请联系技术员！
Product Name: DIN M16 Female Head Assembled Connector
1. Materials:
1-1. Shell: Nylon UL94V0; Color: Black
1-2. Contact: 3-8-pin phosphor bronze; 12 pin brass
1-3. Lid: Zinc alloy
1-4. Lamp body: Zinc alloy
1-5. Screw: SPCC
1-6. Lighting fixtures: Zinc alloy
1-7. Isolation: Polyvinyl chloride
1-8. Telephone: Brass
1-9. Rear: Nylon+GF15% UL94V-0; colour
1-10. SR： polyvinyl chloride
2. Complete:
2-1. Contact: 3-8 pins:
Contact area: Gold glitter coating
Welding area: Tin
Bottom plate: Nickel
12 needles:
Contact: Gold plating
2-2. CAP: Nickel plating
2-3. Lighting fixtures: Nickel plated
2-4. Fixture body: Nickel plated
2-5. Fixture body: Nickel plated
2-6. Coating: Fixture body: Nickel plated
3. Electrical specifications:
3-1. Rated current: 3PIN~8PIN5A; 12 needles 3a
3-2. Rated voltage: 3PIN~8PIN250V; 12 needles 60V
3-3. Waterproof grade: IP40
4. Environment:
4-1.0 Operating temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
DIN M16 female assembled connector is a connector commonly used in industrial and electronic devices, designed to comply with DIN standards and provide stable electrical connections. The following is a detailed description of the DIN M16 female assembled connector:
Main features:
1. Standardized design:
The connector follows the DIN (German Industrial Standard) M16 specification, ensuring compatibility with other DIN connectors and facilitating integration into various devices.
2. Female interface:
The DIN M16 female head has multiple pin configurations, suitable for connecting cables with different lead numbers, facilitating the transmission of electrical signals.
3. Protection level:
This connector typically has waterproof and dustproof characteristics, and many models comply with IP67 or higher protection levels, ensuring reliability for use in harsh environments.
4. Durable materials:
The manufacturing materials are usually high-strength plastics or metals (such as aluminum alloys), which have excellent corrosion resistance and mechanical impact resistance, and are suitable for long-term industrial applications.
5. Assembly convenience:
The connector is designed as an assembly type, allowing users to choose the appropriate wire and connector configuration according to their needs, simplifying the installation process.
6. Locking mechanism:
Equipped with a rotating lock or buckle design to ensure a stable connection and reduce the risk of detachment due to vibration or pulling.
7. Electrical performance:
Its contact design is well-designed to ensure low contact resistance and high signal integrity, suitable for various signal and power transmission.
Application areas:
DIN M16 female assembled connectors are widely used in:
Industrial automation equipment
Mechanical and Robotics Technology
Communication and network equipment
Medical equipment
Traffic control system
Environmental monitoring equipment
Installation and maintenance recommendations:
When installing connectors, please ensure that the wiring terminals are connected correctly to avoid short circuits or poor contacts.
Regularly check the sealing status of the connector to ensure its waterproof performance.
In high-frequency usage environments, it is recommended to regularly replace connectors to maintain optimal performance.
Summary:
The DIN M16 female assembled connector is an ideal choice for various industrial and electronic applications due to its superior protective performance, durability, and flexibility, ensuring the safe and stable operation of equipment in various environments. If you have more specific application requirements or questions, please contact the technician!
