KSD-DI-13M2-04

KSD-DI-13M2-04

  • 产品特性
  • 应用范围

图纸下载 样品申请

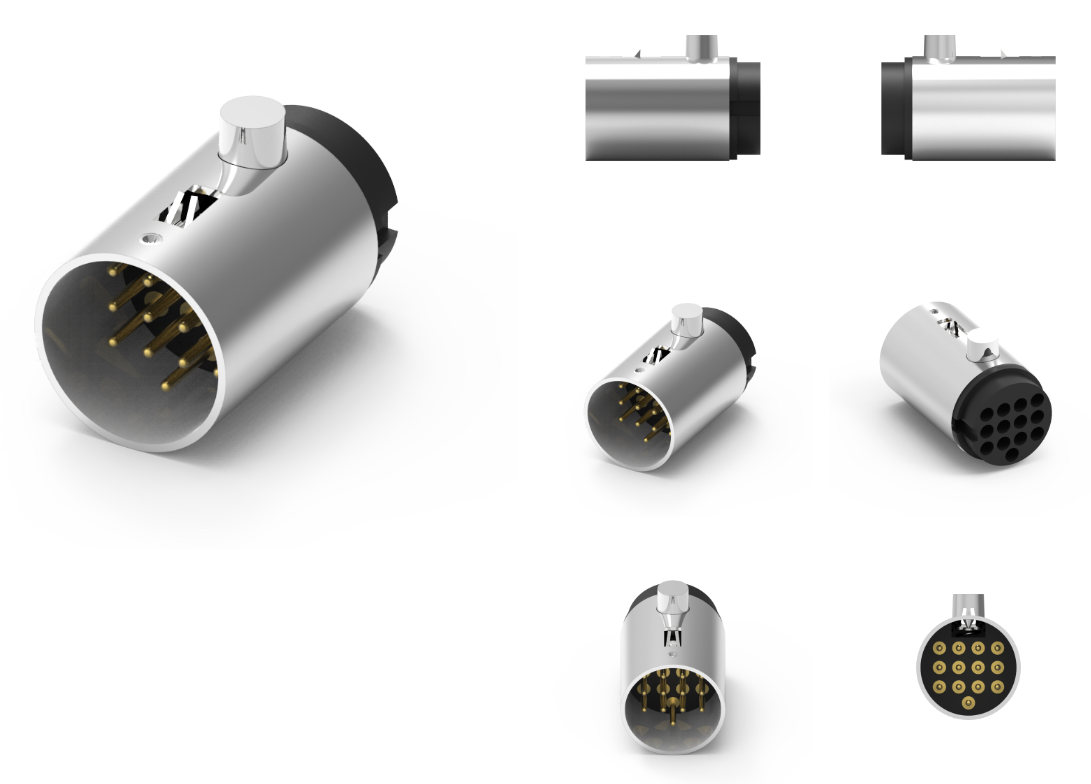

品名：DIN 公头线端成型式连接器
1.材料：
1-1.房屋：PBT；颜色：黑色
1-2.触点：黄铜
1-3.外壳：黄铜
1-4.锁扣：不锈钢304
1-5.推杆：不锈钢303
1-6.弹簧：不锈钢304
2.完成
2-1.接触：金10分钟
2-2.外壳：镀镍
2-3.按钮：镀镍
3.电气规格
3-1.额定电流：3A
3-2.额定电压：60V
环境的：
4-1.0工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞



DIN 公头线端成型式连接器是一个符合 DIN 标准的连接器，广泛用于工业和电子设备中的电气连接。该类型的连接器可以提供可靠、耐用和高效的连接方案。以下是关于 DIN 公头线端成型式连接器的详细信息，包括特性、应用领域和使用注意事项。

主要特性：
1.符合 DIN 标准：
该连接器遵循 DIN（Deutsches Institut für Normung）标准，具有良好的互换性和兼容性，可以与许多其他设备和连接器配合使用。

2.公头设计：
连接器的公头部分设计为插入式，便于快速连接和断开，通常用于与相应的母头连接器配合使用。

3.线端成型式：
线端成型式设计允许导线直接与连接器相连，通常可以通过焊接或压接等方式进行连接。这样的设计提高了连接的可靠性，并降低了组装复杂度。

4.高电气性能：
具有良好的电气导通性能，适用于各种电流和电压的电气连接需求。

5.耐用材料：
通常使用高强度材料制造，例如耐高温、抗腐蚀的塑料和金属，确保在恶劣环境下的长期可靠性。

6.防护选项：
许多 DIN 公头连接器可提供额外的防护特性，如防尘和防水设计（如 IP65、IP67 等防护等级），以满足不同环境要求。

应用领域：
工业自动化：用于传感器、执行器、PLC（可编程逻辑控制器）等设备的电气连接。

交通运输：在汽车、船舶、火车和其他交通工具中的电气系统中广泛应用。

电气设备：适用于医疗设备、家用电器、电子测量仪器等。

通信：在网络设备和通信基础设施中提供数据传输连接。

选择与使用注意事项：
1.电气规格：
在选择连接器时，确保其额定电压和电流符合应用需求，避免过载或短路。

2.安装方式：
根据具体的安装需求选择合适的连接方式（如焊接、压接等），确保连接牢固。

3.环境适应性：
根据具体的工作环境选择合适的防护等级，以确保连接器能够抵御水、灰尘及其他外界因素的影响。

4.定期检查：
定期检查连接器的功能状态，确保其没有受到物理损坏或腐蚀，以保持连接的可靠性。

5.适当工具：
使用正确的工具和设备进行连接器的安装和维护，避免损坏连接器及线路。

总结：
DIN 公头线端成型式连接器以其高效、可靠的连接特性广泛应用于各行各业。结合其优良的电气性能和耐用性，成为了工业和电子设备中不可或缺的连接解决方案。如果您有更具体的应用需求或问题，请联系技术员！


Product Name: DIN Male Wire End Forming Connector
1. Materials:
1-1. House: PBT； Color: Black
1-2. Contact: Brass
1-3. Shell: Brass
1-4. Buckle: Stainless steel 304
1-5. Push rod: Stainless steel 303
1-6. Spring: Stainless steel 304
2. Complete
2-1. Contact: Gold for 10 minutes
2-2. Shell: Nickel plated
2-3. Button: Nickel plated
3. Electrical specifications
3-1. Rated current: 3A
3-2. Rated voltage: 60V
Environmental:
4-1.0 Operating temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


DIN male end molded connector is a connector that complies with DIN standards and is widely used for electrical connections in industrial and electronic devices. This type of connector can provide a reliable, durable, and efficient connection solution. The following is detailed information about DIN male wire end molded connectors, including characteristics, application areas, and usage precautions.

Main features:
1. Compliant with DIN standards:
This connector follows the DIN (Deutsches Institution f ü r Normung) standard, has good interchangeability and compatibility, and can be used with many other devices and connectors.

2. Public head design:
The male part of the connector is designed as a plug-in type for quick connection and disconnection, and is usually used in conjunction with the corresponding female connector.

3. End forming type:
The wire end forming design allows wires to be directly connected to connectors, usually through welding or crimping. This design improves the reliability of the connection and reduces assembly complexity.

4. High electrical performance:
Has good electrical conductivity and is suitable for electrical connection needs of various currents and voltages.

5. Durable materials:
High strength materials such as high temperature resistant and corrosion-resistant plastics and metals are typically used to ensure long-term reliability in harsh environments.

6. Protection options:
Many DIN male connectors can provide additional protective features, such as dust-proof and waterproof design (protection levels such as IP65, IP67, etc.), to meet different environmental requirements.

Application areas:
Industrial automation: used for electrical connections of sensors, actuators, PLCs (programmable logic controllers) and other equipment.

Transportation: Widely used in electrical systems of automobiles, ships, trains, and other modes of transportation.

Electrical equipment: suitable for medical equipment, household appliances, electronic measuring instruments, etc.

Communication: Providing data transmission connections in network devices and communication infrastructure.

Selection and usage precautions:
1. Electrical specifications:
When selecting connectors, ensure that their rated voltage and current meet the application requirements to avoid overload or short circuit.

2. Installation method:
Choose the appropriate connection method (such as welding, crimping, etc.) based on specific installation requirements to ensure a secure connection.

3. Environmental adaptability:
Choose the appropriate level of protection based on the specific working environment to ensure that the connector can withstand the effects of water, dust, and other external factors.

4. Regular inspection:
Regularly check the functional status of the connector to ensure that it has not been physically damaged or corroded, in order to maintain the reliability of the connection.

5. Appropriate tools:
Use the correct tools and equipment for connector installation and maintenance to avoid damaging the connectors and wiring.

Summary:
DIN male end molded connectors are widely used in various industries due to their efficient and reliable connection characteristics. Combined with its excellent electrical performance and durability, it has become an indispensable connection solution in industrial and electronic devices. If you have more specific application requirements or questions, please contact the technician!
