KSD-DI-08M2-19-11

KSD-DI-08M2-19-11

  • 产品特性
  • 应用范围

图纸下载 样品申请

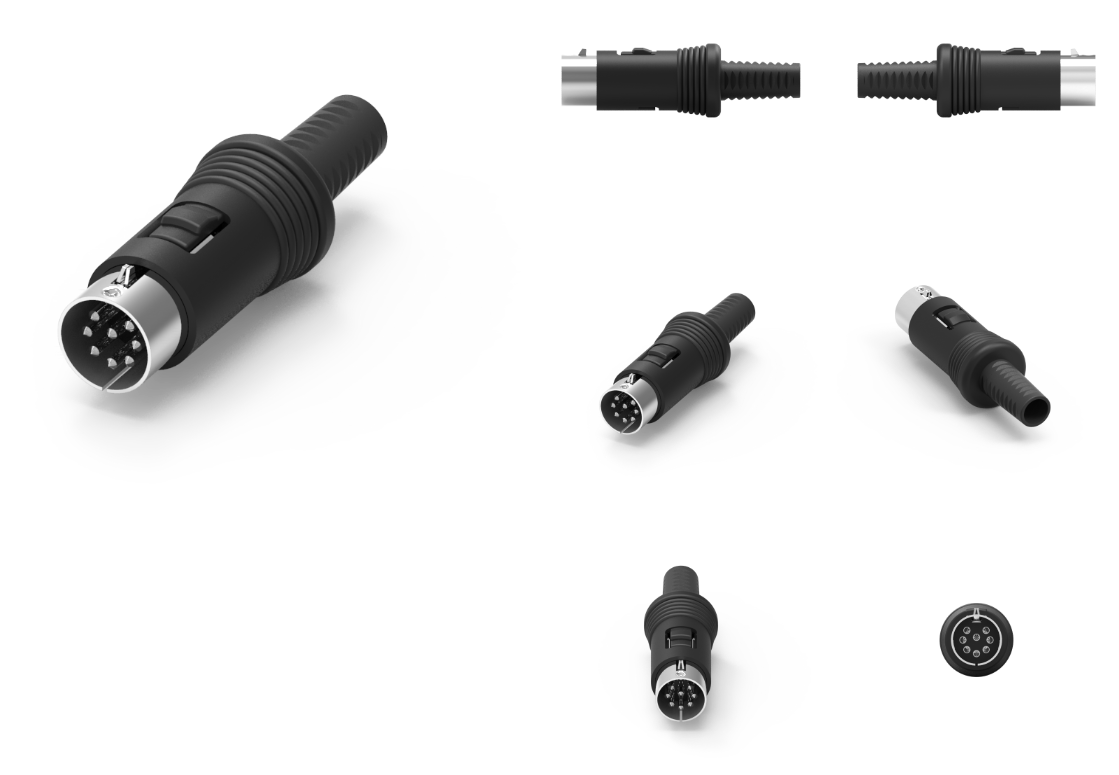

品名：DIN 公头组装式连接器
材料：
1-1.外壳：PA66+15%玻璃纤维；颜色：黑色
1-2.触点：黄铜
1-3.外壳：K7
1-4.CAP:K7
1-5.涂层：PA66+15%GF；颜色：黑色
1-6.SR：聚氯乙烯；颜色：黑色。
1-7.锁：黄铜
2.完成：
2-1.触点：镀镍
2-2.外壳：镀镍
2-3.盖子：镀镍
2-4.锁：镀镍
3.电气规格：
3-1.额定电流：3PIN～8PIN 5A；12针~13针3a
3-2.：额定电压：3PIN~8PIN250V；12针~13针60V
品牌：科斯达开关KSDKG
产地：中国东莞



DIN 公头组装式连接器是一种符合 DIN 标准的电气连接器，主要用于工业自动化、控制系统、数据通信等场合。此类连接器具有高性能和耐用性，能够满足多种连接需求。以下是有关 DIN 公头组装式连接器的详细信息，包括其特点、应用领域及使用注意事项。

主要特点：
1.DIN 标准：
DIN（Deutsches Institut für Normung）标准确保该连接器具备良好的互换性和兼容性，可以与多种设备、接插件配合使用。

2.公头设计：
连接器的公头部分设计用于插入母头，方便用户进行快速连接和拆卸，契合各种现场需求。

3.组装式结构：
组装式设计允许用户根据具体需求选择合适的导线、接头等组件进行组合，灵活应对各种连接要求。用户可以在现场完成组装，方便快捷。

4.高电气性能：提供良好的电气导通性能，适用于各种电流和电压的电气连接需求，能保证稳定的信号传输。

5.耐用和防护特性：
通常采用高强度耐用材料制造，具有较好的耐环境能力，有些型号具备 IP 防护等级（例如 IP67），能够防止水和灰尘的侵入。

6.多种类型和规格：
提供多种引脚数、形状和尺寸选项，适用于不同的连接需求。

应用领域：
工业自动化：广泛用于传感器、执行器、控制器等设备的电气连接。

交通运输：在各类交通工具（如汽车、船舶、火车）的电气系统中应用。

电子设备：适用于通信设备、医疗设备、家电及其他电子设备中的电气连接。

电力和照明系统：在工业和商业建筑中的电力供应和照明系统中提供可靠的连接。

选择与使用注意事项：
1.电气参数：
确保选择的连接器电压和电流规格符合系统要求，避免因过载而导致故障。

2.组装过程：
组装时应遵循制造商的说明，以确保连接牢固并达到预期的防护效果。

3.环境因素：
根据实际工作环境选择合适的连接器类型，确保其能够承受湿度、温度和其他环境变化。

4.定期维护：
定期检查连接器和连接线的状态，确保它们没有磨损、腐蚀或损坏，以维持连接的可靠性和安全性。

5.使用合适工具：
在安装和维护过程中使用适当的工具，避免因操作不当造成连接器或导线的损坏。

小结：
DIN 公头组装式连接器是一种具有高适应性和可靠性的连接解决方案，适用于广泛的工业和电子应用。通过其灵活的组装设计和良好的电气性能，为各种设备提供了有效的电气连接。如果您有更具体的应用需求或问题，请联系技术员！


Product Name: DIN Male Assembled Connector
Material Science:
1-1. Shell: PA66+15% fiberglass; Color: Black
1-2. Contact: Brass
1-3. Shell: K7
1-4.CAP: K7
1-5. Coating: PA66+15%GF； Color: Black
1-6. SR: Polyvinyl chloride; Color: Black.
1-7. Lock: Brass
2. Complete:
2-1. Contact: Nickel plated
2-2. Shell: Nickel plated
2-3. Lid: Nickel plated
2-4. Lock: Nickel plated
3. Electrical specifications:
3-1. Rated current: 3PIN~8PIN 5A; 12~13 needles 3a
3-2. Rated voltage: 3PIN~8PIN250V; 12~13 needles 60V
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


DIN male assembled connector is an electrical connector that complies with DIN standards, mainly used in industrial automation, control systems, data communication and other applications. This type of connector has high performance and durability, and can meet various connection needs. The following is detailed information about DIN male assembled connectors, including their characteristics, application areas, and usage precautions.

Main features:
1. DIN standard:
The DIN (Deutsches Institution f ü r Normung) standard ensures that this connector has good interchangeability and compatibility, and can be used with a variety of devices and connectors.

2. Public head design:
The male part of the connector is designed to be inserted into the female part, making it convenient for users to quickly connect and disassemble, and meeting various on-site needs.

3. Assembled structure:
Modular design allows users to select suitable components such as wires and connectors for combination according to specific needs, and flexibly respond to various connection requirements. Users can complete assembly on-site, which is convenient and fast.

4. High electrical performance: Provides good electrical conductivity, suitable for electrical connection needs of various currents and voltages, and can ensure stable signal transmission.

5. Durable and protective features:
It is usually made of high-strength and durable materials, with good environmental resistance. Some models have an IP protection level (such as IP67), which can prevent water and dust from entering.

6. Multiple types and specifications:
Provide multiple pin count, shape, and size options to meet different connection requirements.

Application areas:
Industrial automation: widely used for electrical connections of sensors, actuators, controllers, and other equipment.

Transportation: Applied in the electrical systems of various transportation vehicles such as cars, ships, and trains.

Electronic devices: suitable for electrical connections in communication equipment, medical equipment, household appliances, and other electronic devices.

Power and lighting systems: Provide reliable connections in power supply and lighting systems in industrial and commercial buildings.

Selection and usage precautions:
1. Electrical parameters:
Ensure that the selected connector voltage and current specifications meet the system requirements to avoid faults caused by overload.

2. Assembly process:
When assembling, follow the manufacturer's instructions to ensure a secure connection and achieve the expected protective effect.

3. Environmental factors:
Choose the appropriate connector type based on the actual working environment to ensure that it can withstand humidity, temperature, and other environmental changes.

4. Regular maintenance:
Regularly check the status of connectors and connecting wires to ensure that they are not worn, corroded, or damaged, in order to maintain the reliability and safety of the connection.

5. Use appropriate tools:
Use appropriate tools during installation and maintenance to avoid damage to connectors or wires caused by improper operation.

Summary:
DIN male assembled connectors are a highly adaptable and reliable connection solution suitable for a wide range of industrial and electronic applications. Through its flexible assembly design and excellent electrical performance, it provides effective electrical connections for various devices. If you have more specific application requirements or questions, please contact the technician!
