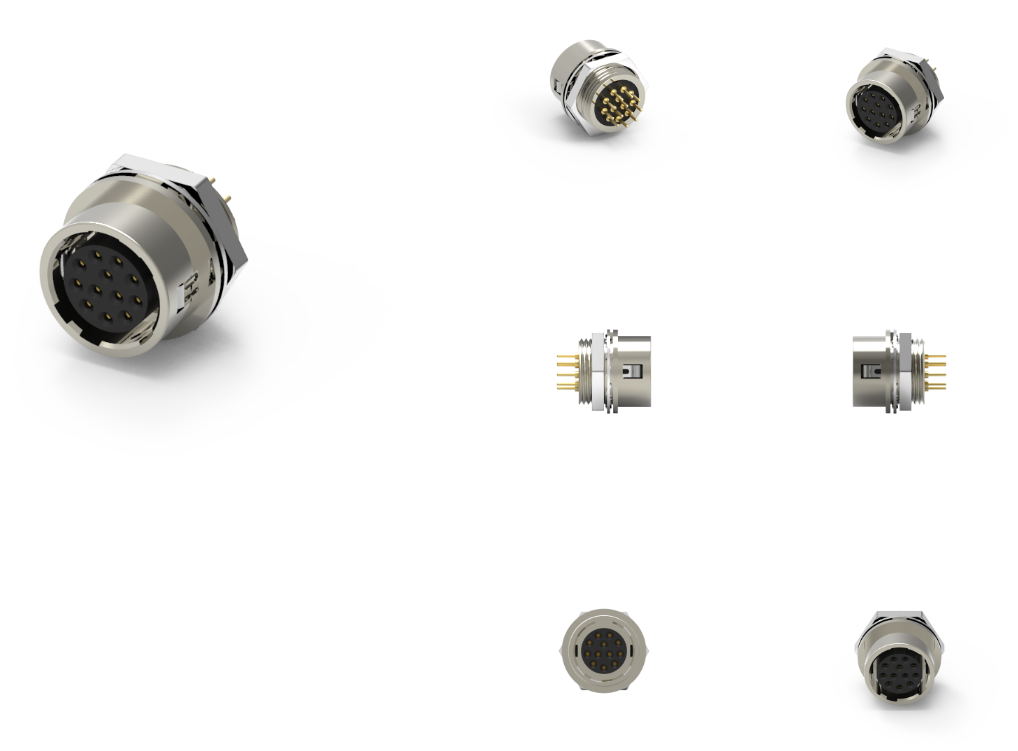

品名：Push Pull Size 10 系列DIN母头连接器
1.材料
1-1.外壳：尼龙66 UL94V-0；颜色：黑色
1-2.触点：黄铜
1-3. 外壳：锌合金
1-4.弹簧：不锈钢
1-5.垫圈：磷青铜
1-6.螺母：黄铜
2.完成
2-1.触点：金闪光
2-2.外壳：镍
2-3. 垫圈：镍
2-4.螺母：镍
3.电气规格
3-1. 额定电流：2A
3-2.额定电压：100V交流/140V直流
4.环境：
4-1.工作温度：-25℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
Push Pull Size 10系列DIN母头连接器是一种高性能的连接器，采用Push Pull机制，方便用户快速连接和断开，广泛应用于音频、视频、数据传输、工业自动化等领域。以下是关于Push Pull Size 10系列DIN母头连接器的详细信息：
特点
1.Push Pull设计：
该设计允许快速、简便的连接和断开，使用者只需轻轻推或拉连接器，而不必旋转，节省了时间并简化了操作。
2.尺寸和形状：
Size 10系列通常较小巧，适合空间有限的应用场景。其外形通常是圆形的，便于安装和布线。
3.材料和结构：
母头连接器一般由耐用的塑料和金属材料制成，外壳坚固，能够抵御外部环境的侵害。
引脚通常采用镀金或镀镍处理，以提高导电性和耐腐蚀性，确保长期稳定的电气连接。
4.性能：
Push Pull设计提供良好的防尘和防水特性，适用于各种环境条件。
适合高频信号传输，能够提供低干扰和高质量的信号连接。
应用领域
1.音频设备：
被广泛用于舞台音响设备、乐器、音频接口等连接。
2.视频设备：
适合需要高带宽的视频设备，如专业视频摄像机和广播设备。
3.工业自动化：
用于机器人技术、传感器和控制系统中，以实现快速的连接和更换。
4.医疗设备：
在医疗仪器中，由于其高可靠性和良好的防护特性，成为一种理想选择。
优势
1.快速连接与断开：Push Pull机制使得连接过程更简便，提高工作效率。
2.牢固稳定：连接器设计确保在振动或其他外力影响下不会轻易松动。
3.高兼容性：Size 10连接器在不同应用中具有广泛的兼容性，与多个设备和接口能够良好匹配。
使用注意事项
1.正确连接：使用连接器时，应确保插入方向正确，并在推拉时保持合适的力度。
2.定期维护：检查连接器的接触点和外殼，确保没有脏污、磨损或腐蚀。
3.适当的环境使用：虽然Push Pull连接器具有防尘和防水特性，但仍应尽量在适宜的环境中使用，以延长产品寿命。
小结
Push Pull Size 10系列DIN母头连接器是一种专为快速和可靠连接设计的连接器，广泛应用于多种领域。如果您对该系列连接器有特定需求，或想了解技术规格和采购信息，欢迎联系技术员！
Product Name: Push Pull Size 10 Series DIN Female Connector
1. Materials
1-1. Shell: Nylon 66 UL94V-0; Color: Black
1-2. Contact: Brass
1-3. Shell: Zinc alloy
1-4. Spring: Stainless steel
1-5. Gasket: phosphor bronze
1-6. Nut: Brass
2. Complete
2-1. Contact: Gold Flash
2-2. Shell: Nickel
2-3. Gasket: Nickel
2-4. Nut: Nickel
3. Electrical specifications
3-1. Rated current: 2A
3-2. Rated voltage: 100V AC/140V DC
4. Environment:
4-1. Working temperature:- 25℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
The Push Pull Size 10 series DIN female connector is a high-performance connector that uses the Push Pull mechanism to facilitate quick connection and disconnection for users. It is widely used in fields such as audio, video, data transmission, and industrial automation. The following is detailed information about the Push Pull Size 10 series DIN female connector:
characteristic
1. Push Pull Design:
This design allows for quick and easy connection and disconnection, with users only needing to gently push or pull the connector without rotating it, saving time and simplifying operations.
2. Size and shape:
The Size 10 series is usually compact and suitable for applications with limited space. Its shape is usually circular, making it easy to install and wire.
3. Materials and Structure:
Female connectors are generally made of durable plastic and metal materials, with a sturdy shell that can resist external environmental damage.
Pins are usually treated with gold or nickel plating to improve conductivity and corrosion resistance, ensuring long-term stable electrical connections.
4. Performance:
Push Pull design provides excellent dust and water resistance, suitable for various environmental conditions.
Suitable for high-frequency signal transmission, able to provide low interference and high-quality signal connections.
application area
1. Audio equipment:
Widely used for connecting stage audio equipment, musical instruments, audio interfaces, etc.
2. Video equipment:
Suitable for video devices that require high bandwidth, such as professional video cameras and broadcasting equipment.
3. Industrial automation:
Used in robotics technology, sensors, and control systems to achieve rapid connection and replacement.
4. Medical equipment:
In medical equipment, due to its high reliability and good protective characteristics, it has become an ideal choice.
advantage
1. Quick connection and disconnection: The Push Pull mechanism makes the connection process easier and improves work efficiency.
2. Secure and stable: The connector design ensures that it will not easily loosen under vibration or other external forces.
3. High compatibility: The Size 10 connector has broad compatibility in different applications and can match well with multiple devices and interfaces.
Precautions for use
1. Correct connection: When using the connector, ensure that the insertion direction is correct and maintain appropriate force when pushing or pulling.
2. Regular maintenance: Check the contact points and housing of the connector to ensure that there is no dirt, wear, or corrosion.
3. Appropriate environmental use: Although Push Pull connectors have dust-proof and waterproof properties, they should still be used in suitable environments as much as possible to extend product life.
Summary
The Push Pull Size 10 series DIN female connector is a connector designed for fast and reliable connections, widely used in various fields. If you have specific requirements for this series of connectors, or would like to know technical specifications and procurement information, please feel free to contact a technician!
