KSD-DI-03F2-02

KSD-DI-03F2-02

  • 产品特性
  • 应用范围

图纸下载 样品申请

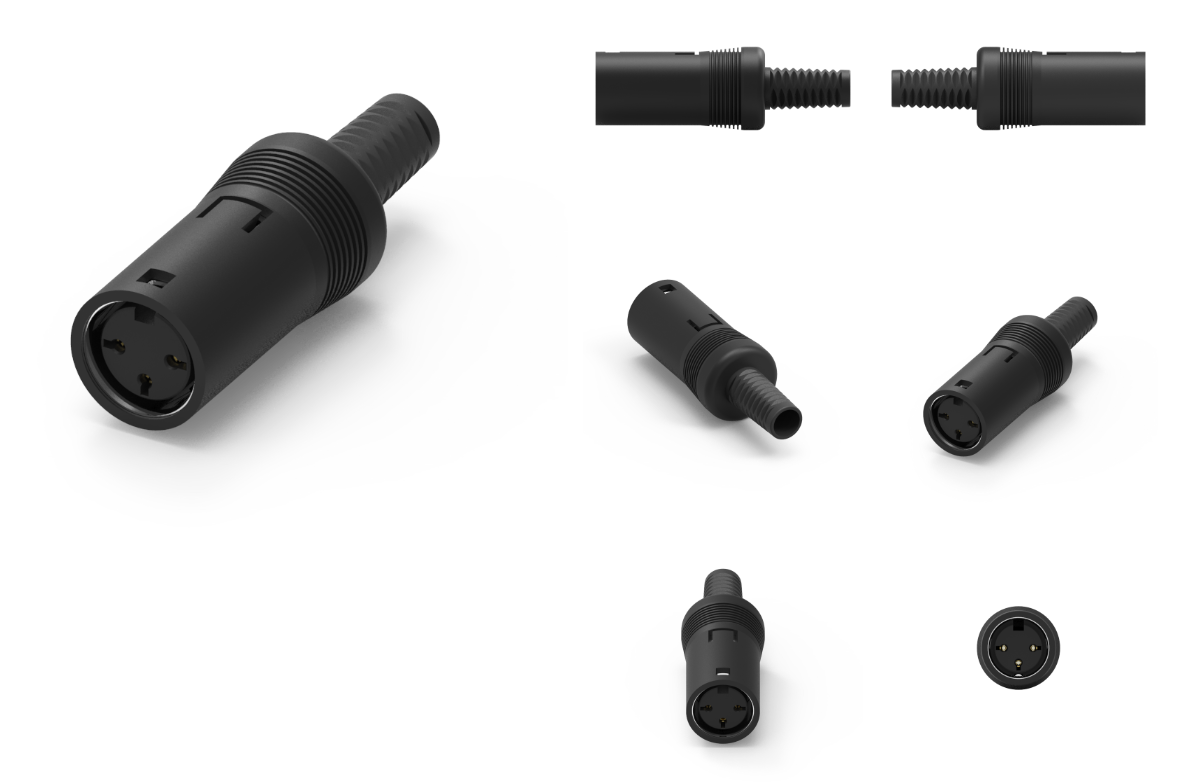

品名：DIN 母头组装式连接器
1.材料
1-1.外壳：尼龙UL94V-0；颜色：黑色
1-2.触点：磷青铜
1-3.主体：尼龙66
1-4.外壳（底部）：黄铜
外壳（顶部）：黄铜
1-5.1-6.SR：聚氯乙烯；颜色：黑色
2.完成：
2-1.触点：接触面积：镀金
焊接区域：锡
底板：镍
2-2.外壳（底部）：镀镍
2-3.外壳（顶部）：镀镍
3.电气规格
3-1.额定电流：5A
3-2.额定电压：250V
4.环境：
3-1.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


DIN 母头组装式连接器是一种广泛应用于工业和电子领域的连接器，通常采用DIN标准设计。这种连接器因其坚固、可靠的性能而受到青睐，能够在各种恶劣环境中提供稳定的电气连接。

主要特征：
1.标准化设计：
符合DIN（德国工业标准），确保与其他DIN连接器系列的兼容性，便于不同设备和系统之间的连接。

2.可组装性：
连接器设计为可拆卸和组装，用户可以根据需要选择合适的线缆和接头配置，使其在不同应用中更加灵活。

3.不同引脚配置：
提供多种引脚数和布局，满足不同电气和信号传输需求，例如2针、3针，甚至更多针脚的选项。

4.耐用材料：
采用高强度塑料或金属（如铝或不锈钢）制造，具备出色的耐腐蚀性和机械强度，能够承受高温、震动和其他环境挑战。

5.高防护等级：
许多DIN连接器提供防水和防尘特性，通常达到IP65、IP67或更高等级，适合在潮湿或多尘环境中使用。

6.可靠的电气性能：
设计优良的金属接触件确保良好的电气连接，低接触电阻，高传输效率，适合信号和电源传输。

7.简便的安装和拆卸：
一般采用锁定机制，如旋转锁或卡扣，便于快速连接和断开，同时确保连接的稳定性。

应用领域：
DIN 母头组装式连接器被广泛应用于以下领域：

工业自动化与控制系统

机械和机器人技术

电力和能源管理

通信设备

医疗设备

交通运输系统

环境监测设备

安装和维护注意事项：
确保连接器在连接前清洁干燥，以避免水或灰尘进入引脚区域，影响电气性能。

定期检查连接器的密封性，必要时更换密封圈或其他保护组件。

在使用过程中注意过载和拉扯，以延长连接器的使用寿命。

总结：
DIN 母头组装式连接器因其可靠性、灵活性和优越的防护性能，广泛应用于各种工业和电子设备中，是实现安全、高效电气连接的理想解决方案。如果您有更具体的应用需求或问题，请联系技术员！



Product Name: DIN Female Head Assembled Connector
1. Materials
1-1. Shell: Nylon UL94V-0; Color: Black
1-2. Contact: phosphor bronze
1-3. Main body: Nylon 66
1-4. Shell (bottom): brass
Shell (top): brass
1-5.1-6. SR: Polyvinyl chloride; Color: Black
2. Complete:
2-1. Contact: Contact area: Gold plating
Welding area: Tin
Bottom plate: Nickel
2-2. Shell (bottom): Nickel plated
2-3. Shell (top): Nickel plated
3. Electrical specifications
3-1. Rated current: 5A
3-2. Rated voltage: 250V
4. Environment:
3-1. Working temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


DIN female head assembled connector is a type of connector widely used in the industrial and electronic fields, typically designed according to DIN standards. This type of connector is favored for its sturdy and reliable performance, providing stable electrical connections in various harsh environments.

Main features:
1. Standardized design:
Compliant with DIN (German Industrial Standard), ensuring compatibility with other DIN connector series and facilitating connections between different devices and systems.

2. Assemblability:
The connector is designed to be detachable and assembled, allowing users to choose the appropriate cable and connector configuration according to their needs, making it more flexible in different applications.

3. Different pin configurations:
Provide multiple pin numbers and layouts to meet different electrical and signal transmission needs, such as 2-pin, 3-pin, and even more pin options.

4. Durable materials:
Made of high-strength plastic or metal (such as aluminum or stainless steel), it has excellent corrosion resistance and mechanical strength, and can withstand high temperatures, vibrations, and other environmental challenges.

5. High protection level:
Many DIN connectors offer waterproof and dustproof features, typically reaching IP65, IP67, or higher levels, making them suitable for use in humid or dusty environments.

6. Reliable electrical performance:
Well designed metal contacts ensure good electrical connections, low contact resistance, high transmission efficiency, and are suitable for signal and power transmission.

7. Easy installation and disassembly:
Generally, locking mechanisms such as rotary locks or buckles are used to facilitate quick connection and disconnection while ensuring the stability of the connection.

Application areas:
DIN female head assembled connectors are widely used in the following fields:

Industrial Automation and Control Systems

Mechanical and Robotics Technology

Electricity and Energy Management

Communication equipment

Medical equipment

Transportation system

Environmental monitoring equipment

Installation and maintenance precautions:
Ensure that the connector is clean and dry before connection to prevent water or dust from entering the pin area and affecting electrical performance.

Regularly check the sealing of the connector and replace the sealing ring or other protective components if necessary.

Pay attention to overloading and pulling during use to extend the service life of the connector.

Summary:
DIN female head assembled connectors are widely used in various industrial and electronic devices due to their reliability, flexibility, and superior protective performance, making them an ideal solution for achieving safe and efficient electrical connections. If you have more specific application requirements or questions, please contact the technician!
