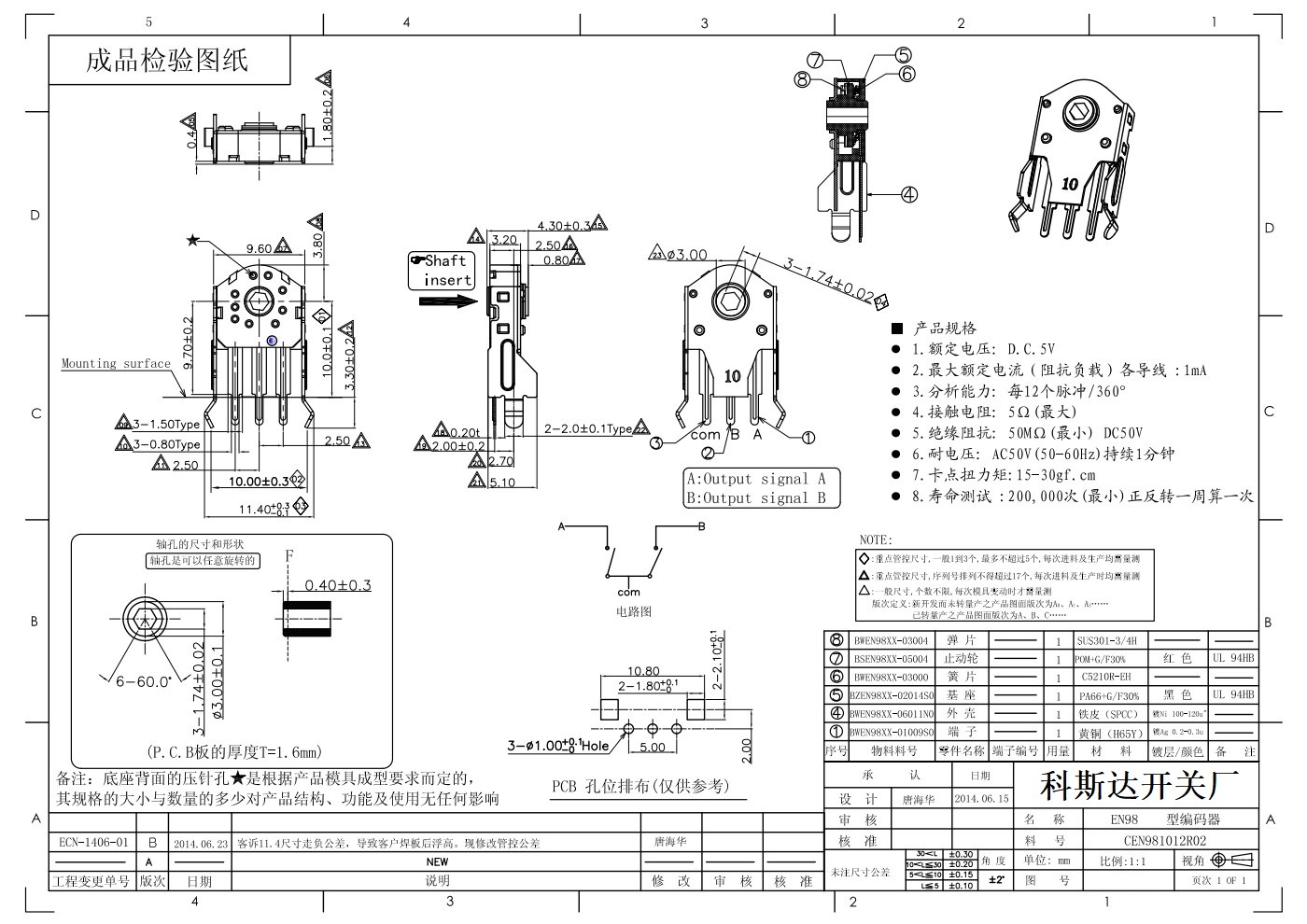

产品料号 | CEN98系列 |
额定负荷 | DC5V 1mA |
接触阻抗 | 5ΩMax |
绝缘阻抗 | 50MΩMin DC50V |
耐电压 | AC50V(50-60HZ)for1Minute |
电气寿命 | 300,000 Cycles |
脉冲数 | 12 pluses/360° |
扭矩 | 15-30gf.cm |
制动数 | 24 |
机械寿命 | 300,000 Cycles |
使用温度 | -15℃-+70℃ |
耐候性能 | | |
耐寒性 | -20℃±2℃ | 96H |
耐热性 | 80℃±2℃ | 96H |
耐湿性 | 60℃±2℃ | 90~95%RH,96H |
