FPC软排线连接器
间距(mm)：0.5; 0.8; 1.0; 1.25; 2.0; 2.54。
导体厚度(mm)：0.035; 0.05; 0.1。
导体宽度(mm)：0.3; 0.65; 0.8; 1.27。
胶膜厚度(mm)：0.043; 0.06; 0.1。
补强板厚度(mm)：0.16; 0.225; 0.25; 0.28。
线长：20mm以上。
品牌 科斯达 KOSOD KSDKG

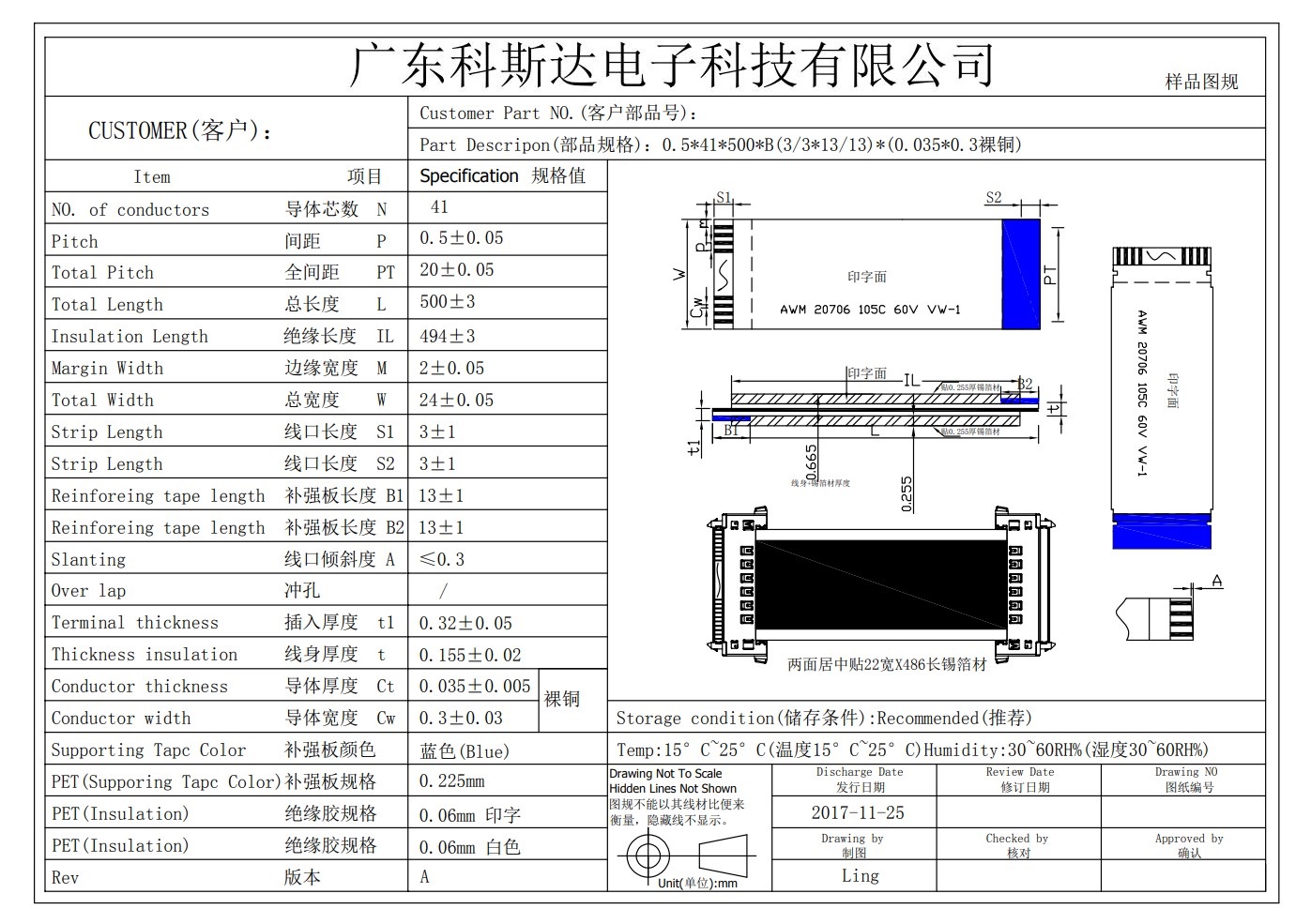

排线是订做产品，如需求详细图纸，请联系我司业务人员。
FPC flexible cable connector
Spacing (mm): 0.5; 0.8; 1.0; 1.25; 2.0; 2.54.
Conductor Thickness (mm): 0.035; 0.05; 0.1.
Conductor width (mm): 0.3; 0.65; 0.8; 1.27.
Film thickness (mm): 0.043; 0.06; 0.1.
Reinforcing plate thickness (mm): 0.16; 0.225; 0.25; 0.28.
Line length: more than 20mm.
Brand KOSOD KOSOD KSDKG
The cable is a customized product. If you need detailed drawings, please contact our sales staff.
