KSD-WP-05F2-99-11

KSD-WP-05F2-99-11

  • 产品特性
  • 应用范围

图纸下载 样品申请

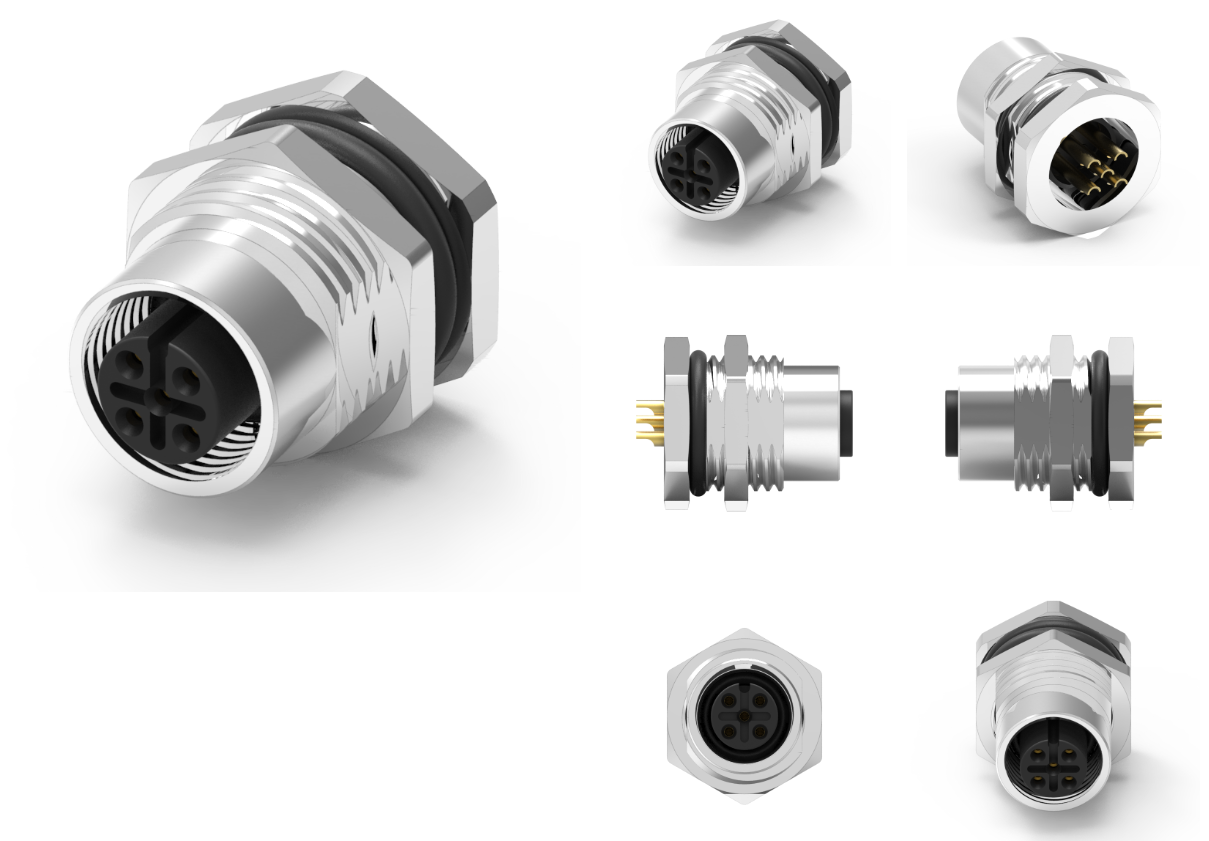

品名：M12 母头防水连接器
1.材料：
1-1. 外壳：PA66：颜色：黑色
1-2.触点：黄铜
1-3.外壳：黄铜
1-4. O型圈A:EPDM
1-5.螺母：黄铜
1-6. O型圈B：硅胶
1-7.灯环：PA66
1-8.密封：硅胶
1-9.密封螺母：PA66
2.完成：
2-1.触点：金1U“微英寸
2-2. 螺母：镀镍
2-3.外壳：镀镍
3.电气规格：
3-1.额定电流：4A
3-2.额定电压：2~4PIN250V；5针60v
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-40℃~105℃
品牌：科斯达开关KSDKG
产地：中国东莞


M12 母头防水连接器
M12 母头防水连接器 是一种广泛应用于工业以及自动化领域的连接器，特别适用于需要防水、防尘的环境。它通常用于连接传感器、执行器、控制器等设备，确保在复杂和恶劣环境下的稳定性和可靠性。

主要特点
1.防水防尘设计：
高防护等级：通常可达到 IP67 或更高标准，有效防止水和灰尘的侵入，适应湿润和多尘的操作环境。
密封结构：采用高质量的密封材料和设计，确保连接器能够长期使用而不会发生故障。

2.耐久性：
优质材料：通常使用金属或高强度塑料制造，具有耐高温、耐腐蚀的特性，适合极端环境。
抗机械冲击：设计上考虑了振动和冲击，提供稳固的连接。

3.灵活的引脚配置：
多种针脚选项：可以选择 3 针、4 针、5 针、8 针等多种针脚配置，以适应不同设备的电气需求。
标准化设计：符合国际连接器标准，方便与不同品牌及型号的设备兼容使用。

4.紧凑设计与易用性：
小巧轻便：设计尺寸紧凑，易于在有限空间中安装。
快速连接：插拔式设计使得连接和断开更加方便快捷，提高工作效率。

5.广泛的兼容性：
多领域应用：广泛应用于工业自动化、机器人、交通运输、医疗设备以及智能家居等领域，具有很好的适应性。
规范化产品：能够与多种设备进行互联，有助于系统集成和客户的定制需求。

应用领域
1.工业自动化：常用于工业传感器、控制器连接，确保生产设备的正常运行。

2.机器人技术：用于连接机器人中各种传感器和驱动装置，保证其性能稳定。

3.交通控制：在铁路和智能交通系统中，为信号灯、传感器等设备提供可靠连接。

4.医疗设备：在医疗仪器上确保数据传输的安全性与稳定性。

5.智能家居：用于智能设备和传感器的连接，确保设备的稳定工作。

使用注意事项
1.安装和检查：
安装时需确保密封圈完好，避免水和尘埃侵入。
定期检查连接器，确保未发生磨损、老化等问题。

2.电气负载：
严格遵循制造商建议的电气参数，以防止过载。
注意不同针脚的功能和用途，以避免接错导致的故障。

3.清洁与维护：
定期清洁连接器表面，防止污物阻碍接触。
避免使用腐蚀性清洁剂，保证材料的完整性。

4.避免化学品接触：
避免将连接器置于腐蚀性或化学物质环境，保护连接器的使用寿命。

总结
M12 母头防水连接器 是一种非常可靠的连接解决方案，具有防水、防尘、耐用等多种优点，适用于各类工业和电子应用。如果您有任何关于 M12 母头防水连接器的具体问题或需要咨询更多信息，欢迎联系技术员！



Product Name: M12 Female Waterproof Connector
1. Materials:
1-1.  Shell: PA66： Color: Black
1-2. Contact: Brass
1-3. Shell: Brass
1-4.  O-ring A: EPDM
1-5. Nut: Brass
1-6.  O-ring B: Silicone
1-7. Lamp ring: PA66
1-8. Sealing: Silicone
1-9. Sealing nut: PA66
2. Complete:
2-1. Contact: Gold 1U "micro inch
2-2.  Nut: Nickel plated
2-3. Shell: Nickel plated
3. Electrical specifications:
3-1. Rated current: 4A
3-2. Rated voltage: 2~4PIN250V; 5-pin 60v
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 40℃~105℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


M12 female waterproof connector
M12 female waterproof connector is a widely used connector in the industrial and automation fields, especially suitable for environments that require waterproof and dustproof. It is commonly used to connect devices such as sensors, actuators, controllers, etc., ensuring stability and reliability in complex and harsh environments.

main features
1. Waterproof and dustproof design:
High protection level: It can usually reach IP67 or higher standards, effectively preventing the intrusion of water and dust, and adapting to humid and dusty operating environments.
Sealing structure: High quality sealing materials and design are used to ensure that the connector can be used for a long time without failure.

2. Durability:
High quality materials: usually made of metal or high-strength plastic, with high temperature resistance and corrosion resistance, suitable for extreme environments.
Mechanical shock resistance: The design takes into account vibration and impact, providing a stable connection.

3. Flexible pin configuration:
Multiple pin options: Multiple pin configurations such as 3-pin, 4-pin, 5-pin, 8-pin, etc. can be selected to meet the electrical needs of different devices.
Standardized design: Complies with international connector standards, facilitating compatibility with devices of different brands and models.

4. Compact design and ease of use:
Compact and lightweight: The design is compact in size and easy to install in limited spaces.
Quick connection: The plug-in design makes connection and disconnection more convenient and efficient, improving work efficiency.

5. Wide compatibility:
Multi domain applications: widely used in industrial automation, robotics, transportation, medical equipment, and smart homes, with good adaptability.
Standardized products: capable of interconnecting with multiple devices, facilitating system integration and meeting customer customization needs.

application area
1. Industrial automation: commonly used for connecting industrial sensors and controllers to ensure the normal operation of production equipment.

2. Robotics technology: used to connect various sensors and driving devices in robots to ensure their stable performance.

3. Traffic control: Provide reliable connections for signal lights, sensors, and other devices in railways and intelligent transportation systems.

4. Medical equipment: Ensure the security and stability of data transmission on medical devices.

5. Smart Home: Used for connecting smart devices and sensors to ensure stable operation of the devices.

Precautions for use
1. Installation and inspection:
Ensure that the sealing ring is intact during installation to prevent water and dust from entering.
Regularly inspect the connectors to ensure that there are no issues such as wear and aging.

2. Electrical load:
Strictly follow the manufacturer's recommended electrical parameters to prevent overload.
Pay attention to the functions and purposes of different pins to avoid faults caused by incorrect connections.

3. Cleaning and maintenance:
Regularly clean the surface of the connector to prevent dirt from obstructing contact.
Avoid using corrosive cleaning agents to ensure the integrity of materials.

4. Avoid contact with chemicals:
Avoid placing connectors in corrosive or chemical environments to protect their service life.

summary
The M12 female waterproof connector is a very reliable connection solution, with multiple advantages such as waterproof, dustproof, and durable, suitable for various industrial and electronic applications. If you have any specific questions or need more information about the M12 female waterproof connector, please feel free to contact the technician!
