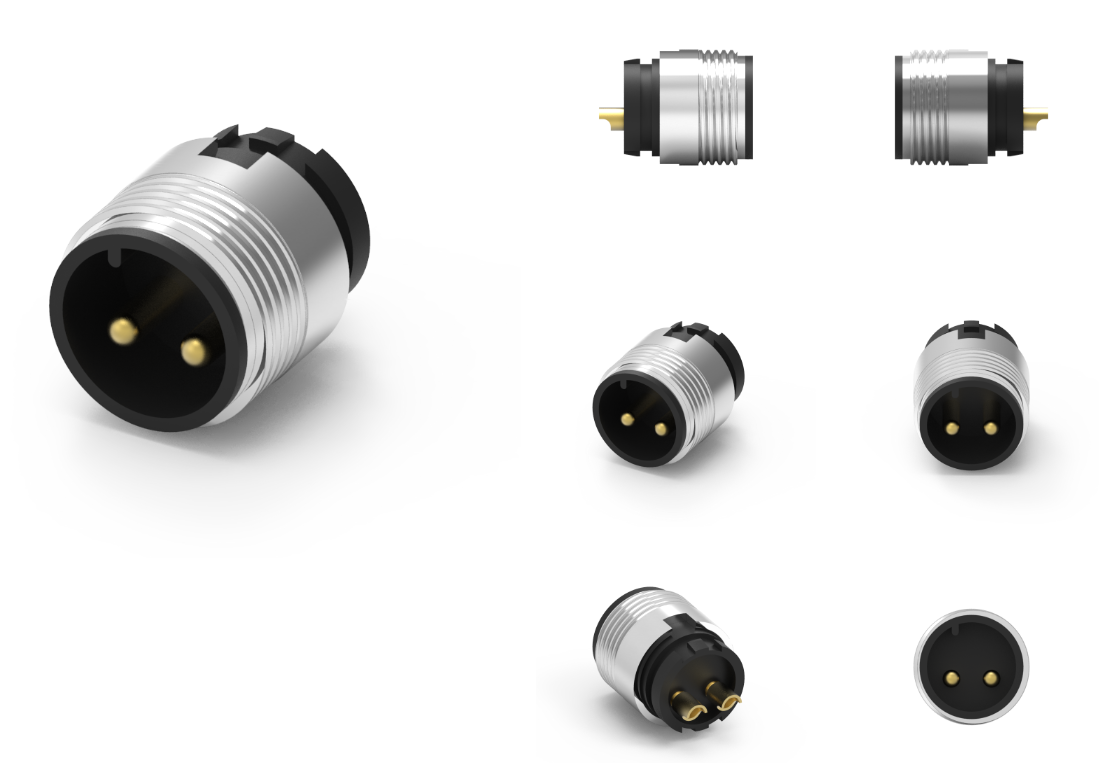

品名：M15 公头防水连接器
1.材料
1-1. 外壳：PBT UL94V-0；颜色：黑色
1-2.触点：黄铜
1-3.编号：黄铜
2.完成：
2-1.触点：金闪光微英寸
底板：镍
2-2.编号：镀镍
3.电气规格：
3-1. 额定电流：20A
3-2.额定电压：250V
3-3.防水等级：IPX7
4.环境：
4-1.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
M15 公头防水连接器概述
M15 公头防水连接器是一种专门设计用于防水和防尘的电气连接器，广泛应用于工业自动化、交通运输、照明设备及其他需要高可靠性连接的领域。它具备紧凑的尺寸、良好的密封性能和可靠的电气连接，是现代电子设备中不可或缺的重要部件。
主要特点
1.防水防尘设计：
高防护等级：通常具备 IP65 或更高的防护等级，有效防止水和灰尘的入侵，尤其适合潮湿或粉尘较多的环境。
密封结构：采用高质量的密封材料（如硅胶或橡胶），在连接处形成良好的密封，确保设备在不良环境中的正常运作。
2.可靠的连接性：
紧凑设计：M15 公头连接器体积小，便于安装，尤其适合空间有限的应用场合。
多针脚配置：可根据具体需求选择不同的针脚数量（如 2、3、4、5 针等），适用于多种电气连接场合。
3.耐用性：
优质材料：采用耐高温、耐腐蚀的材料，具备良好的抗冲击性和耐磨性，适合长期使用。
广泛的工作温度范围：可以在较宽的温度范围内正常工作，适应现代工业的需求。
3.多种连接方式：
支持多种接线方式，包括焊接、压接和螺丝连接等，能够满足不同安装需求。
应用领域
1.工业自动化：多用于传感器、执行器及控制器的连接，确保设备间的高效通信。
2.交通运输：广泛应用于车载电子设备，如车辆传感器、灯光控制系统等。
3.照明设备：适用于户外照明、舞台灯光等需要防水防尘的场合。
4.智能设备：在各种智能化设备中，提供可靠的电源或信号连接。
使用注意事项
1.安装前检查：在安装前，请确保连接器及密封圈无破损，确保连接的防水性能。
2.使用规范：按照产品说明书规定的步骤进行安装，避免因不当操作导致的损坏或连接不良。
3.定期维护：定期检查连接器，保持连接部位清洁，确保长期稳定的电气连接。
4.负载管理：确保在额定电流电压范围内使用，不能超载，以防连接器损坏。
总结
M15 公头防水连接器凭借其防水、防尘及耐用性，在各种工业和商业应用中发挥着重要作用。其紧凑的设计与可靠的连接性能，使其成为现代电子设备中不可或缺的组成部分。如果您需要更多的信息或技术支持，欢迎联系技术员！
Product Name: M15 Male Waterproof Connector
1. Materials
1-1. Shell: PBT UL94V-0； Color: Black
1-2. Contact: Brass
1-3. Number: Brass
2. Complete:
2-1. Contact: Gold Flash Micro inch
Bottom plate: Nickel
2-2. Number: Nickel plating
3. Electrical specifications:
3-1. Rated current: 20A
3-2. Rated voltage: 250V
3-3. Waterproof grade: IPX7
4. Environment:
4-1. Working temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Overview of M15 Male Waterproof Connector
M15 male waterproof connector is an electrical connector specifically designed for waterproof and dustproof purposes, widely used in industrial automation, transportation, lighting equipment, and other fields that require high reliability connections. It has a compact size, good sealing performance, and reliable electrical connections, making it an indispensable and important component in modern electronic devices.
main features
1. Waterproof and dustproof design:
High protection level: usually has a protection level of IP65 or higher, effectively preventing the invasion of water and dust, especially suitable for humid or dusty environments.
Sealing structure: High quality sealing materials (such as silicone or rubber) are used to form a good seal at the connection, ensuring the normal operation of the equipment in adverse environments.
2. Reliable connectivity:
Compact design: The M15 male connector has a small volume and is easy to install, especially suitable for applications with limited space.
Multi pin configuration: Different numbers of pins (such as 2, 3, 4, 5, etc.) can be selected according to specific needs, suitable for various electrical connection scenarios.
3. Durability:
High quality materials: Made of materials that are resistant to high temperatures and corrosion, with good impact resistance and wear resistance, suitable for long-term use.
Wide working temperature range: It can work normally within a wide temperature range and meet the needs of modern industry.
3. Multiple connection methods:
Supports multiple wiring methods, including welding, crimping, and screw connections, to meet different installation requirements.
application area
1. Industrial automation: commonly used for connecting sensors, actuators, and controllers to ensure efficient communication between devices.
2. Transportation: Widely used in vehicle electronic devices such as vehicle sensors, lighting control systems, etc.
3. Lighting equipment: Suitable for outdoor lighting, stage lighting, and other occasions that require waterproofing and dust prevention.
4. Smart devices: Provide reliable power or signal connections in various intelligent devices.
Precautions for use
1. Pre installation inspection: Before installation, please ensure that the connector and sealing ring are not damaged, and ensure the waterproof performance of the connection.
2. Usage guidelines: Install according to the steps specified in the product manual to avoid damage or poor connections caused by improper operation.
3. Regular maintenance: Regularly check the connectors, keep the connection parts clean, and ensure long-term stable electrical connections.
4. Load management: Ensure that it is used within the rated current and voltage range, and cannot be overloaded to prevent connector damage.
summary
The M15 male waterproof connector plays an important role in various industrial and commercial applications due to its waterproof, dustproof, and durability. Its compact design and reliable connectivity make it an indispensable component of modern electronic devices. If you need more information or technical support, please feel free to contact a technician!
