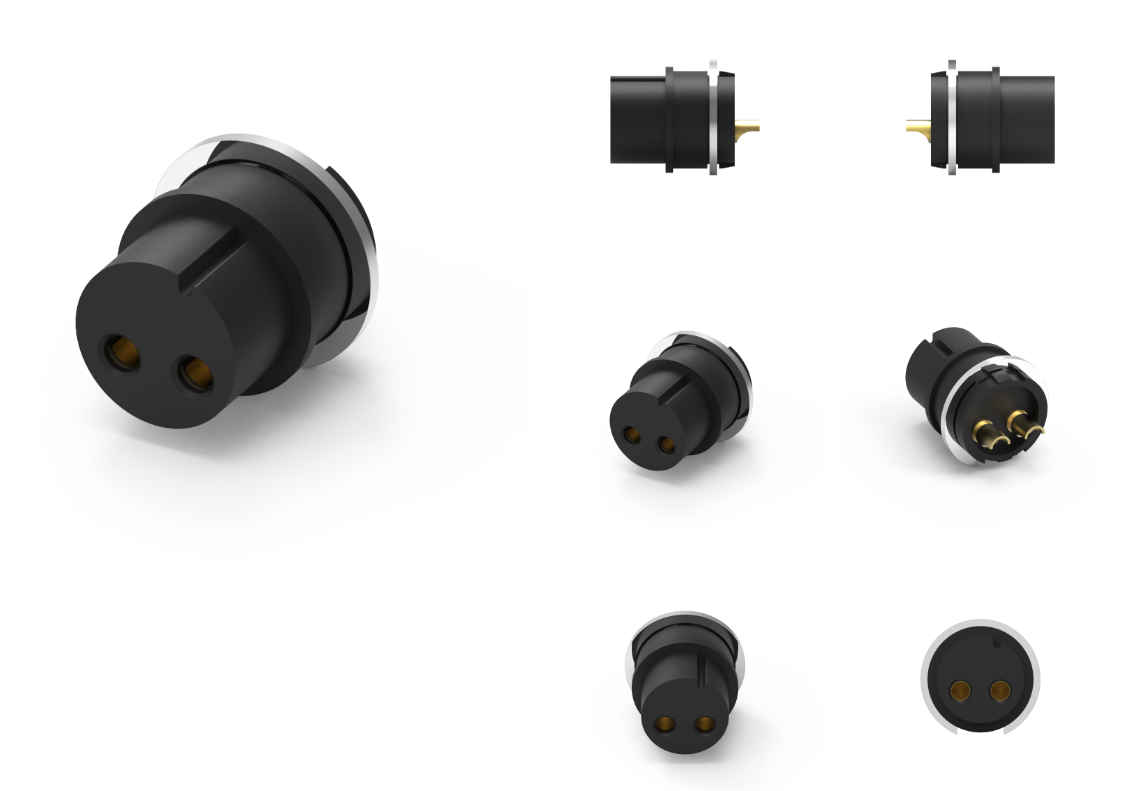

品名：M15 母头防水连接器
1.材料：
1-1. 外壳：PA66 UL94V-2；颜色：黑色
1-2.触点：黄铜
1-3. 螺母：PA66 UL94V-2；颜色：黑色
1-4.O型圈：EPDM；颜色：黑色
2.完成：
2-1. 触点：镀镍
3.电气规格：
3-1.额定电流：15A
3-2.额定电压：250V
3-3.防水等级：IP67
4.环境：
4-1.0工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
M15 母头防水连接器概述
M15 母头防水连接器是一种专为工业自动化、电子设备及其他应用设计的高性能连接器。其防水和防尘特性使其适用于恶劣环境，在确保稳定电气连接的同时，也保护设备内部的电子元件。M15系列连接器因其紧凑的结构和可靠的性能而广泛应用于多种领域。
主要特点
1.防水防尘设计：
高防护等级：M15 母头连接器通常具有 IP65 或更高的防护等级，能够有效抵御水和灰尘的侵入，确保在潮湿或多尘环境中的安全运行。
密封结构：采用高质量的密封圈，确保在收入或排放电缆时仍能保持优异的防水性能。
2.高可靠性：
优质材料：连接器材料通常具有耐高温、耐化学腐蚀、耐磨损等特性，确保在严苛条件下的长期使用。
耐用性：经过严密工艺制造，能够承受高频插拔和振动，确保连接始终稳定。
3.灵活的连接方式：
多针脚配置：M15 母头连接器可提供多种针脚组合（如 2、3、4、5 针等），适应不同的电气连接需求。
易于安装：设计考虑到用户友好的安装方式，简化了连接过程。
4.广泛的应用场景：
适用于传感器、执行器、控制器等设备的连接，无论是工业机械还是家电产品都能轻松应对。
应用领域
1.工业自动化：用于自动化设备中的信号和电源传输，提升设备的互联互通。
2.交通运输：广泛应用于汽车、铁路和船舶等领域，连接各类传感器和控制系统。
3.照明设备：适用于户外和工业照明，提供安全稳定的电源连接。
4.医疗设备：在医疗设备中应用时，保障设备的可靠性与安全性。
使用注意事项
1.安装前检查：在使用前，确保母头连接器的密封圈完好无损，以保证防水性能。
2.正确安装：按照说明书规定的安装步骤，确保连接器正确连接，避免接触不良。
3.产品维护：定期检查连接器，确保清洁和干燥，避免因污垢和水分导致的故障。
4.负载管理：确保在额定电流和电压范围内使用，以防过载造成损坏。
总结
M15 母头防水连接器凭借其出色的防水、防尘和耐用性，在多个领域中被广泛使用。无论是工业还是商业应用，这种连接器都可以提供可靠的电气连接，确保设备的安全和稳定。如果您对此产品有更多疑问或需要技术支持,欢迎联系技术员！
Product Name: M15 Female Waterproof Connector
1. Materials:
1-1. Shell: PA66 UL94V-2； Color: Black
1-2. Contact: Brass
1-3. Nut: PA66 UL94V-2； Color: Black
1-4. O-ring: EPDM； Color: Black
2. Complete:
2-1. Contact: Nickel plated
3. Electrical specifications:
3-1. Rated current: 15A
3-2. Rated voltage: 250V
3-3. Waterproof grade: IP67
4. Environment:
4-1.0 Operating temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Overview of M15 Female Waterproof Connector
The M15 female waterproof connector is a high-performance connector designed specifically for industrial automation, electronic devices, and other applications. Its waterproof and dustproof properties make it suitable for harsh environments, ensuring stable electrical connections while also protecting electronic components inside the equipment. The M15 series connectors are widely used in various fields due to their compact structure and reliable performance.
main features
1. Waterproof and dustproof design:
High protection level: M15 female connectors typically have a protection level of IP65 or higher, which can effectively resist the intrusion of water and dust, ensuring safe operation in humid or dusty environments.
Sealing structure: High quality sealing rings are used to ensure excellent waterproof performance even when cables are received or discharged.
2. High reliability:
High quality materials: Connector materials typically have characteristics such as high temperature resistance, chemical corrosion resistance, and wear resistance, ensuring long-term use under harsh conditions.
Durability: Made with rigorous craftsmanship, it can withstand high-frequency insertion and vibration, ensuring stable connections at all times.
3. Flexible connection methods:
Multi pin configuration: The M15 female connector can provide multiple pin combinations (such as 2, 3, 4, 5 pins, etc.) to meet different electrical connection requirements.
Easy to install: The design takes into account a user-friendly installation method, simplifying the connection process.
4. Wide range of application scenarios:
Suitable for connecting devices such as sensors, actuators, controllers, etc., it can easily handle both industrial machinery and household appliances.
application area
1. Industrial automation: used for signal and power transmission in automation equipment, enhancing the interconnection and intercommunication of equipment.
2. Transportation: Widely used in fields such as automobiles, railways, and ships, connecting various sensors and control systems.
3. Lighting equipment: Suitable for outdoor and industrial lighting, providing safe and stable power connections.
4. Medical equipment: When applied in medical equipment, ensure the reliability and safety of the equipment.
Precautions for use
1. Pre installation inspection: Before use, ensure that the sealing ring of the female connector is intact and undamaged to ensure waterproof performance.
2. Correct installation: Follow the installation steps specified in the manual to ensure that the connector is connected correctly and avoid poor contact.
3. Product maintenance: Regularly inspect connectors to ensure cleanliness and dryness, and avoid malfunctions caused by dirt and moisture.
4. Load management: Ensure use within the rated current and voltage range to prevent damage caused by overload.
summary
The M15 female waterproof connector is widely used in multiple fields due to its excellent waterproof, dustproof, and durability. Whether for industrial or commercial applications, this connector can provide reliable electrical connections, ensuring the safety and stability of equipment. If you have any further questions or need technical support for this product, please feel free to contact a technician!
