KSD-WP-05M3-01-11

KSD-WP-05M3-01-11

  • 产品特性
  • 应用范围

图纸下载 样品申请

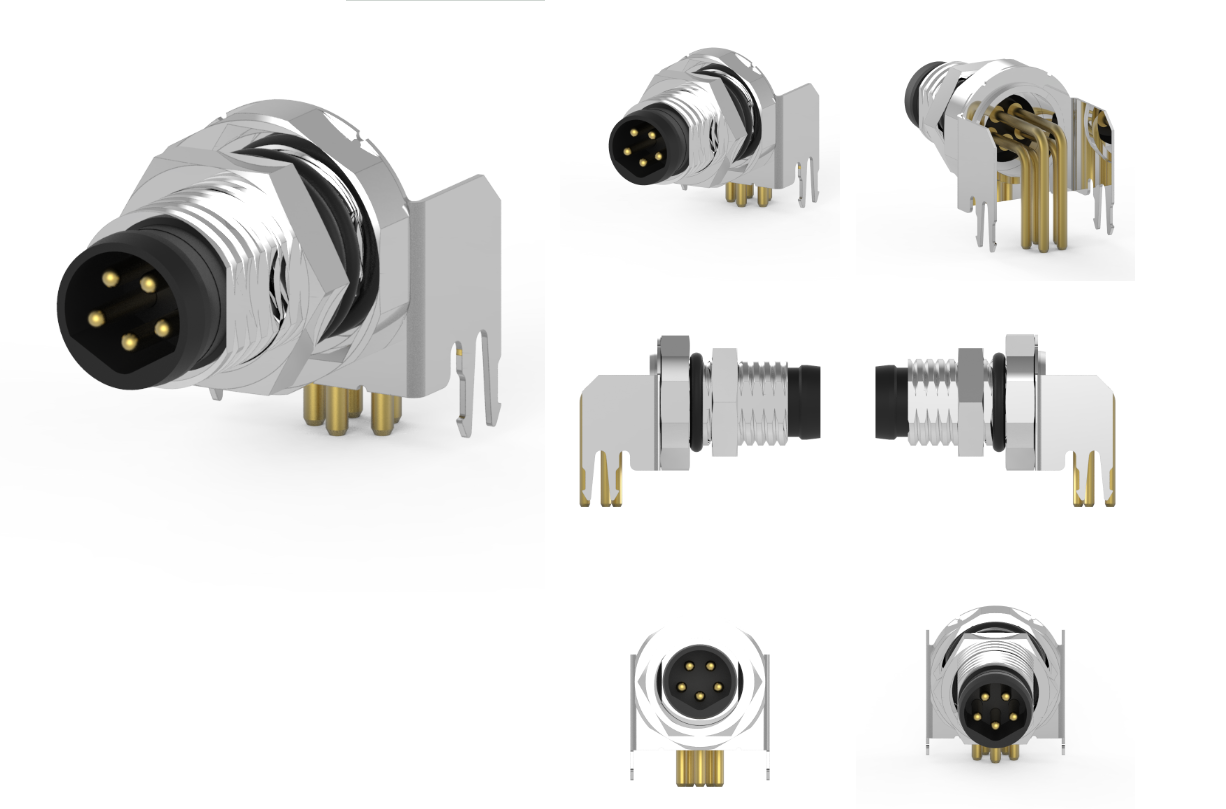

品名：M8 公头 B-Coded 前锁90°插板式防水连接器
1.材料：
1-1. 外壳：PA UL94V-0；颜色：黑色
1-2.触点：黄铜
1-3. 螺母：黄铜。
1-4.外壳：黄铜
1-5.O型圈：NBR
1-6.地面：磷青铜
2.完成：
2-1.触点：最小10克拉，镀金
底板：镍
2-2. 螺母：镀镍
2-3.外壳：镀镍
2-4.接地：镀锡
3.电气规格：
3-1.额定电流：3A
3-2.额定电压：30V
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


M8 公头 B-Coded 前锁 90° 插板式防水连接器
M8 公头 B-Coded 前锁 90° 插板式防水连接器 是一种广泛应用于工业自动化、传感器、和设备互连的高性能连接器。其设计的特点包括防水结构、90°角插入方式以及前锁定机制，确保在恶劣环境下也能提供稳定的连接。

主要特点
 1.B-Coded 设计：
编码方式：B-Coded 连接器的引脚排列是特定的，防止错误连接，确保系统安全和稳定运行。
适用设备：广泛用于传感器、执行器等设备的连接，符合工业标准。

2.前锁机制：
安全连接：前锁设计确保连接后不易松动，可以承受一定的机械拉力，减少因为振动或冲击导致的断开风险。
便捷操作：插拔时方便，用户无需使用额外工具，简化了维护过程。

3.90° 弯头设计：
空间优化：90° 插入角度能够节省空间，特别适合在有限的空间内进行连接。
线路整理：可以有效减少线路的弯曲和整理，使布线更加简洁美观。

4.防水性能：
IP67 等级：通常具有防水等级IP67，能够有效防止水和灰尘的侵入，适合在潮湿或外部环境中使用。
耐温范围：适应广泛的温度范围，适合各种工业环境。

5.材料和构造：
耐用材料：采用高强度的工程塑料和金属材料，确保连接器在长期使用中的可靠性和耐久性。
优质密封：通过橡胶密封圈等设计，提高连接器的防水与防尘能力。

应用领域
1.工业自动化：在自动化设备和控制系统中作为信号和电源的连接应用。

2.传感器网络：用于连接各种传感器（如温度、湿度、压力传感器等），实现数据传输。

3.机器人技术：在机器人内部各部件之间提供稳定的电气连接。

4.运输工具：应用于汽车、铁路和航空等运输工具的电子系统。

使用注意事项
1.安装和拔插：
在插入连接器时，请确保对齐引脚，避免用力过猛造成损坏。
拔出时请轻轻按下锁定机制，确保安全拆卸。

2.定期维护：
定期检查连接器的外观和接触点，确保无污垢或腐蚀。
检查防水密封圈是否完好，如有损坏需及时更换。

3.电气参数：
确保连接器的额定电压和电流符合使用要求，避免过载使用。
不同的应用环境可能对电气性能有不同要求，请按照设备规格进行匹配。

4.环境注意：
在极端环境下使用时，尽量选择防护等级更高的连接器。
避免连接器长期暴露在高温、化学气体等腐蚀性环境中。

总结
M8 公头 B-Coded 前锁 90° 插板式防水连接器 是一款高效耐用的连接解决方案，适用于工业自动化、传感器设备和各种恶劣环境。通过其前锁设计和防水性能，能够在多种复杂环境中提供安全可靠的连接。如果您对该连接器有更多问题或需要技术支持，欢迎联系技术员！



Product Name: M8 Male B-Code Front Lock 90 ° Plug in Waterproof Connector
1. Materials:
1-1.  Shell: PA UL94V-0； Color: Black
1-2. Contact: Brass
1-3.  Nut: brass.
1-4. Shell: Brass
1-5. O-ring: NBR
1-6. Ground: phosphor bronze
2. Complete:
2-1. Contact: Minimum 10 carats, gold-plated
Bottom plate: Nickel
2-2.  Nut: Nickel plated
2-3. Shell: Nickel plated
2-4. Grounding: Tin plating
3. Electrical specifications:
3-1. Rated current: 3A
3-2. Rated voltage: 30V
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


M8 male B-Code front lock 90 ° plug-in waterproof connector
The M8 male B-Code front lock 90 ° plug-in waterproof connector is a high-performance connector widely used in industrial automation, sensors, and equipment interconnection. Its design features include waterproof structure, 90 ° insertion method, and front locking mechanism, ensuring stable connection even in harsh environments.

main features
1. B-Code design:
Encoding method: The pin arrangement of the B-Code connector is specific to prevent incorrect connections and ensure the safe and stable operation of the system.
Applicable equipment: Widely used for connecting sensors, actuators, and other devices, in compliance with industrial standards.

2. Front locking mechanism:
Safe Connection: The front lock design ensures that the connection is not easily loosened and can withstand a certain mechanical tension, reducing the risk of disconnection due to vibration or impact.
Convenient operation: It is easy to plug and unplug, and users do not need to use additional tools, simplifying the maintenance process.

3.90 ° elbow design:
Space optimization: A 90 ° insertion angle can save space and is particularly suitable for connecting in limited spaces.
Line organization: It can effectively reduce the bending and organization of lines, making wiring more concise and beautiful.

4. Waterproof performance:
IP67 rating: It usually has a waterproof rating of IP67, which can effectively prevent the intrusion of water and dust, and is suitable for use in humid or external environments.
Temperature resistance range: Suitable for a wide temperature range and various industrial environments.

5. Materials and Construction:
Durable materials: High strength engineering plastics and metal materials are used to ensure the reliability and durability of the connector during long-term use.
High quality sealing: By designing rubber sealing rings and other components, the waterproof and dustproof capabilities of the connector are improved.

application area
1. Industrial automation: Used as a connection between signals and power in automation equipment and control systems.

2. Sensor network: used to connect various sensors (such as temperature, humidity, pressure sensors, etc.) to achieve data transmission.

3. Robotics technology: providing stable electrical connections between various components inside the robot.

4. Transportation vehicles: Electronic systems applied to transportation vehicles such as automobiles, railways, and aviation.

Precautions for use
1. Installation and unplugging:
When inserting the connector, please ensure that the pins are aligned to avoid damage caused by excessive force.
Please gently press the locking mechanism when pulling out to ensure safe disassembly.

2. Regular maintenance:
Regularly inspect the appearance and contact points of the connector to ensure that there is no dirt or corrosion.
Check if the waterproof sealing ring is intact, and replace it promptly if it is damaged.

3. Electrical parameters:
Ensure that the rated voltage and current of the connector meet the usage requirements and avoid overloading during use.
Different application environments may have different requirements for electrical performance, please match according to equipment specifications.

4. Environmental precautions:
When used in extreme environments, try to choose connectors with higher protection levels.
Avoid long-term exposure of connectors to corrosive environments such as high temperatures and chemical gases.

summary
The M8 male B-Code front lock 90 ° plug-in waterproof connector is an efficient and durable connection solution suitable for industrial automation, sensor equipment, and various harsh environments. Through its front lock design and waterproof performance, it can provide safe and reliable connections in various complex environments. If you have any further questions about this connector or need technical support, please feel free to contact a technician!
