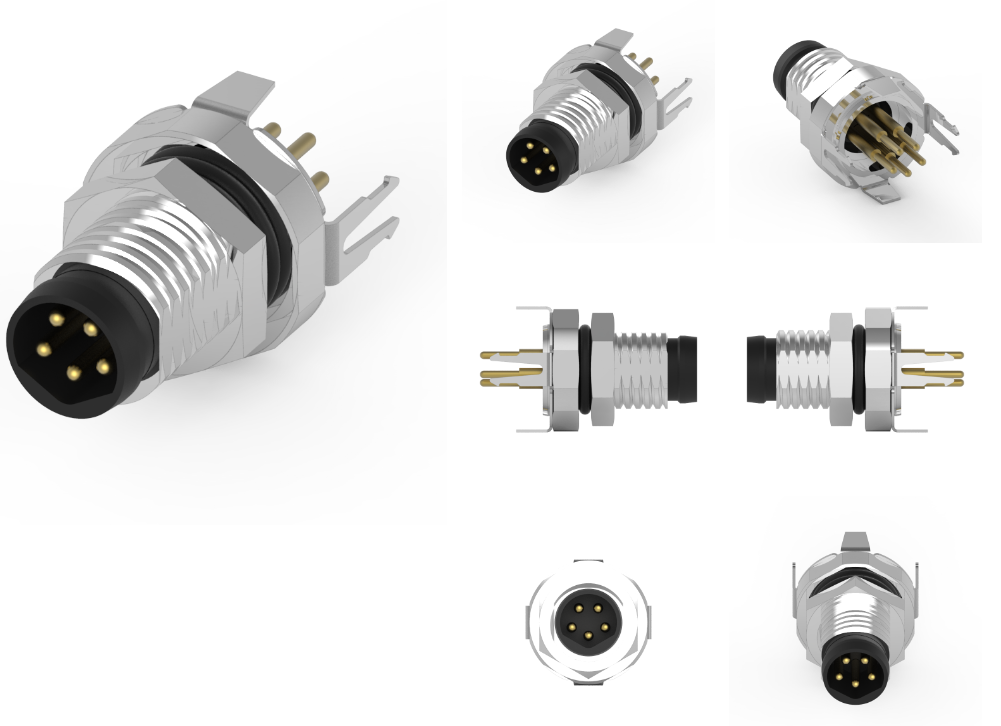

品名：M8 公头 B-Coded 前锁插板式防水连接器
1.材料：
1-1. 外壳：PA UL94V-0；颜色：黑色
1-2.触点：黄铜
1-3. 螺母：黄铜。
1-4.外壳：黄铜
1-5.O型圈：NBR
1-6.地面：磷青铜
2.完成：
2-1.触点：最小10克拉，镀金
底板：镍
2-2. 螺母：镀镍
2-3.外壳：镀镍
2-4.接地：镀锡
3.电气规格：
3-1.额定电流：3A
3-2.额定电压：30V
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
M8 公头 B-Coded 前锁插板式防水连接器
M8 公头 B-Coded 前锁插板式防水连接器 是一种专门设计用于工业自动化和设备互连的高性能连接器。其独特的设计使其在恶劣环境条件下依然能够保持可靠的连接，广泛应用于传感器、执行器和各种电子设备。
主要特点
1.B-Coded 编码设计：
防止错误连接：B-Coded 设计使得连接器的引脚排列具有特定的配置，防止用户错误连接，提高系统的安全性和可靠性。
适用范围：特别适合连接传感器和执行器，符合工业标准。
2.前锁机制：
安全稳固：前锁设计确保插入后的连接器不易松动，能够承受一定的机械拉力，适合振动或运动较大的环境。
简便插拔：用户在连接和断开时，无需额外工具，操作简单便捷。
3.插板式设计：
模块化连接：插板式结构使连接更为模块化，便于设备的维护和升级。
减少连接空间：这种设计有助于在狭小空间中实现高效连接，优化设备布局。
4.防水性能：
IP67 防护等级：连接器在完全浸入水中时仍能保持其功能，适合在潮湿和多尘的环境中使用。
耐化学性：使用的材料和密封设计能够耐受多种化学物质的侵蚀。
5.耐久材料：
高强度材料：连接器外壳通常采用高强度的塑料和金属材料，具有良好的抗冲击性和抗腐蚀性。
优良的电气性能：连接器内置的导电材料确保信号传输稳定，减少信号损失。
应用领域
1.工业自动化：在自动化生产线和设备监控中使用，提供信号传输和控制连接。
2.传感器：用于连接温度、湿度、压力等传感器，实现实时数据采集。
3.机器人系统：在工业机器人和设备之间提供电力和信号连接，支持机器人的精准操作。
4.交通运输：应用于汽车和铁路系统的电子设备连接，保障安全和高效运行。
使用和维护建议
1.安装过程：
确保插头和插座对齐后，轻轻插入，注意不要用力过猛，以免损坏插头。
安装时请确认连接器锁定机制已完全锁定，确保连接的可靠性。
2.定期检查：
定期检查连接器及其接触点，确保没有污染物、灰尘或腐蚀。
查看密封圈的完整性，如有磨损或损坏需尽快更换。
3.电气参数：
确保所使用的连接器满足设备的电压和电流要求，避免超负荷使用。
关注连接器的额定电气参数，确保符合应用需求。
4.环境适应性：
在极端环境下使用时，选择具有更高防护等级的连接器。
避免在高温、低温或化学腐蚀环境中长期使用未保护的连接器。
总结
M8 公头 B-Coded 前锁插板式防水连接器 是一款专业且强大的连接解决方案，适用于多种工业和电子设备的连接需求。其防水特性和安全锁定机制使其在苛刻的工作环境中依然能够保持良好的性能。如果您需要更多关于该连接器的信息或技术支持，欢迎联系技术员！
Product Name: M8 Male B-Code Front Lock Insertion Plate Waterproof Connector
1. Materials:
1-1. Shell: PA UL94V-0； Color: Black
1-2. Contact: Brass
1-3. Nut: brass.
1-4. Shell: Brass
1-5. O-ring: NBR
1-6. Ground: phosphor bronze
2. Complete:
2-1. Contact: Minimum 10 carats, gold-plated
Bottom plate: Nickel
2-2. Nut: Nickel plated
2-3. Shell: Nickel plated
2-4. Grounding: Tin plating
3. Electrical specifications:
3-1. Rated current: 3A
3-2. Rated voltage: 30V
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
M8 male B-Code front lock plug-in waterproof connector
The M8 male B-Code front locking plug-in waterproof connector is a high-performance connector specifically designed for industrial automation and equipment interconnection. Its unique design enables it to maintain reliable connections even in harsh environmental conditions, and is widely used in sensors, actuators, and various electronic devices.
main features
1. B-Code coding design:
Preventing incorrect connections: The B-Code design allows the pin arrangement of the connector to have specific configurations, preventing users from making incorrect connections and improving the safety and reliability of the system.
Scope of application: Especially suitable for connecting sensors and actuators, in compliance with industry standards.
2. Front locking mechanism:
Safe and stable: The front lock design ensures that the connector is not easily loosened after insertion, and can withstand a certain mechanical tension, suitable for environments with high vibration or movement.
Easy to plug and unplug: Users do not need additional tools when connecting and disconnecting, making the operation simple and convenient.
3. Plug in design:
Modular connection: The plug-in structure makes the connection more modular, facilitating equipment maintenance and upgrades.
Reduce connection space: This design helps achieve efficient connections and optimize device layout in small spaces.
4. Waterproof performance:
IP67 protection level: The connector can maintain its function even when fully immersed in water, making it suitable for use in humid and dusty environments.
Chemical resistance: The materials and sealing design used can withstand the erosion of various chemical substances.
5. Durable materials:
High strength materials: The connector housing is usually made of high-strength plastic and metal materials, which have good impact resistance and corrosion resistance.
Excellent electrical performance: The conductive material embedded in the connector ensures stable signal transmission and reduces signal loss.
application area
1. Industrial automation: used in automated production lines and equipment monitoring, providing signal transmission and control connections.
2. Sensor: Used to connect temperature, humidity, pressure and other sensors to achieve real-time data collection.
3. Robot system: Provides power and signal connections between industrial robots and equipment, supporting precise operation of robots.
4. Transportation: Used for connecting electronic devices in automotive and railway systems to ensure safe and efficient operation.
Usage and maintenance suggestions
1. Installation process:
After ensuring that the plug and socket are aligned, gently insert them without applying too much force to avoid damaging the plug.
Please confirm that the connector locking mechanism is fully locked during installation to ensure the reliability of the connection.
2. Regular inspection:
Regularly inspect the connectors and their contact points to ensure that there are no contaminants, dust, or corrosion.
Check the integrity of the sealing ring and replace it as soon as possible if there is wear or damage.
3. Electrical parameters:
Ensure that the connectors used meet the voltage and current requirements of the equipment and avoid overloading.
Pay attention to the rated electrical parameters of the connector to ensure compliance with application requirements.
4. Environmental adaptability:
When used in extreme environments, choose connectors with higher protection levels.
Avoid long-term use of unprotected connectors in high temperature, low temperature, or chemically corrosive environments.
summary
The M8 male B-Code front locking plug-in waterproof connector is a professional and powerful connection solution suitable for the connection needs of various industrial and electronic devices. Its waterproof characteristics and safety locking mechanism enable it to maintain good performance even in harsh working environments. If you need more information or technical support about this connector, please feel free to contact a technician!
