您现在的位置: 首页 > 产品中心 > 连接器系列 > 防水连接器 > M8 防水系列 > 公头 > M8 公头 后锁焊线式防水连接器 >
KSD-WP-03M2-45-11

KSD-WP-03M2-45-11

  • 产品特性
  • 应用范围

图纸下载 样品申请

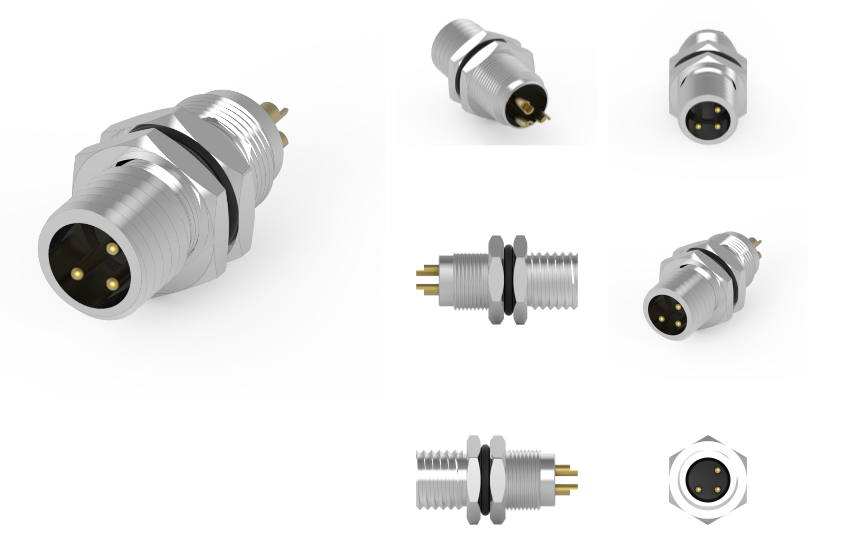

品名：M8 公头 后锁焊线式防水连接器
1.材料：
1.外壳：PBFASSOLOR
1-2.联系人：黑色
1-3.外壳：黄铜
1-4.-RING：NBR；颜色：黑色
1-5.螺母：黄铜
2.完成：
2-1.触点：最小10微英寸镀金
2-2.外壳：镀镍
2-3.编号：镀镍
3.电气规格：
3-1.额定电流：4A
3-2.额定电压：60V
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


M8 公头 后锁焊线式防水连接器
M8 公头 后锁焊线式防水连接器 是一种适用于工业自动化和电子设备的高性能连接器。其设计特点在于后锁焊线结构，能够提供高可靠性的连接，特别适合在需要密闭防水的环境中使用。

主要特点
1.后锁设计：
安全性：后锁机制增强了连接器的稳定性，确保在连接后不会松动，减少因振动或拉力导致的连接失效风险。
便捷使用：用户在安装和拆卸时，可以轻松操作，提高了连接器的使用效率。

2.焊线式连接：
牢固可靠：焊线式设计确保了电气连接的高强度和良好的导电性，适合用于长时间稳定运行的应用。
灵活性：用户可以根据具体需求，选择合适的导线类型和长度，满足不同设备的连接需求。

3.防水性能：
IP67 防护等级：该连接器具备良好的防水和防尘性能，能够在潮湿和尘土环境中正常工作。
耐化学腐蚀：连接器采用抗腐蚀材料，适合在各种工业环境中使用。

4.耐用材料：
高强度材料：连接器使用的塑料和金属材料，确保其抗冲击、耐磨损，提升了整体耐用性。
优良电气性能：高质量的导电材料保证信号传输的稳定与可靠，降低电气干扰。

5.多功能应用：
适配多种设备：可与各种电缆、传感器和设备互连，满足工业自动化、机器人技术等领域的需求。

应用领域
1.工业自动化：应用于工业控制系统、生产线和设备连接，提供稳定的电源和信号传输。

2.传感器和执行器：用于各种传感器（如温度、压力、位置传感器）与控制系统之间的连接，确保有效的数据收集和控制。

3.机器人技术：在工业机器人和其他自动化设备中，提供电气信号的可靠连接。

4.汽车和交通工具：用于汽车、电动车及其他交通工具中，实现电子设备的稳固连接。

使用和维护建议
1.安装和连接：
在连接器焊接时，请确保焊点牢固，避免短路或虚焊现象。
确保连接器的对接正确，无明显间隙。

2.定期检查：
定期检查连接器和导线，确保无摩损、破损或腐蚀现象。
清洁连接器周围的环境，防止灰尘和杂质影响连接质量。

3.电气维护：
监测连接器的工作电流和电压，确保其在正常范围内。
注意电气连接的稳定性，并定期测试信号传输质量。

4.环境适应性：
在极端环境中使用时，请确保连接器的防护等级能够满足需求。
避免频繁暴露在高温或强腐蚀的环境中，以延长连接器的使用寿命。

总结
M8 公头 后锁焊线式防水连接器 是一种功能强大、设计优越的连接解决方案，能够在各种工业和自动化设备中发挥重要作用。其防水性能、稳定的连接方式和优质的材料，使其成为现代工程中不可或缺的一部分。如需了解更多信息或技术支持，欢迎联系技术员！



Product Name: M8 Male Rear Lock Solder Wire Waterproof Connector
1. Materials:
1. Shell: PBFASSOLOR
1-2. Contact: Black
1-3. Shell: Brass
1-4.-RING： NBR； Color: Black
1-5. Nut: Brass
2. Complete:
2-1. Contact: Minimum 10 microinches gold-plated
2-2. Shell: Nickel plated
2-3. Number: Nickel plating
3. Electrical specifications:
3-1. Rated current: 4A
3-2. Rated voltage: 60V
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


M8 Male Rear Lock Solder Wire Waterproof Connector
The M8 male head rear lock welding wire waterproof connector is a high-performance connector suitable for industrial automation and electronic equipment. Its design feature lies in the rear lock welding wire structure, which can provide highly reliable connections and is particularly suitable for use in environments that require sealing and waterproofing.

main features
1. Rear lock design:
Security: The rear locking mechanism enhances the stability of the connector, ensuring that it will not loosen after connection and reducing the risk of connection failure caused by vibration or tension.
Convenient use: Users can easily operate the connector during installation and disassembly, improving its efficiency.

2. Solder wire connection:
Durable and reliable: The wire bonding design ensures high strength and good conductivity of electrical connections, making it suitable for applications that require long-term stable operation.
Flexibility: Users can choose the appropriate wire type and length according to their specific needs to meet the connection requirements of different devices.

3. Waterproof performance:
IP67 protection level: This connector has good waterproof and dustproof performance, and can work normally in humid and dusty environments.
Chemical corrosion resistance: The connector is made of corrosion-resistant materials, suitable for use in various industrial environments.

4. Durable materials:
High strength materials: The plastic and metal materials used in the connector ensure its impact resistance and wear resistance, enhancing overall durability.
Excellent electrical performance: High quality conductive materials ensure stable and reliable signal transmission, reducing electrical interference.

5. Multi functional applications:
Compatible with multiple devices: can interconnect with various cables, sensors, and devices to meet the needs of industrial automation, robotics technology, and other fields.

application area
1. Industrial automation: applied to industrial control systems, production lines, and equipment connections, providing stable power and signal transmission.

2. Sensors and actuators: used for connecting various sensors (such as temperature, pressure, position sensors) with control systems to ensure effective data collection and control.

3. Robotics technology: providing reliable connections for electrical signals in industrial robots and other automation equipment.

4. Cars and transportation vehicles: used in cars, electric vehicles, and other transportation vehicles to achieve stable connection of electronic devices.

Usage and maintenance suggestions
1. Installation and connection:
When soldering connectors, please ensure that the solder joints are secure and avoid short circuits or virtual soldering.
Ensure that the connectors are properly connected without any significant gaps.

2. Regular inspection:
Regularly inspect connectors and wires to ensure there is no wear, damage, or corrosion.
Clean the environment around the connector to prevent dust and impurities from affecting the connection quality.

3. Electrical maintenance:
Monitor the working current and voltage of the connector to ensure they are within the normal range.
Pay attention to the stability of electrical connections and regularly test the quality of signal transmission.

4. Environmental adaptability:
When used in extreme environments, please ensure that the protection level of the connector meets the requirements.
Avoid frequent exposure to high temperatures or highly corrosive environments to extend the lifespan of the connector.

summary
The M8 male head rear lock welding wire waterproof connector is a powerful and well-designed connection solution that can play an important role in various industrial and automation equipment. Its waterproof performance, stable connection method, and high-quality materials make it an indispensable part of modern engineering. For more information or technical support, please feel free to contact our technicians!
