KSD-WP-02M3-04-11

KSD-WP-02M3-04-11

  • 产品特性
  • 应用范围

图纸下载 样品申请

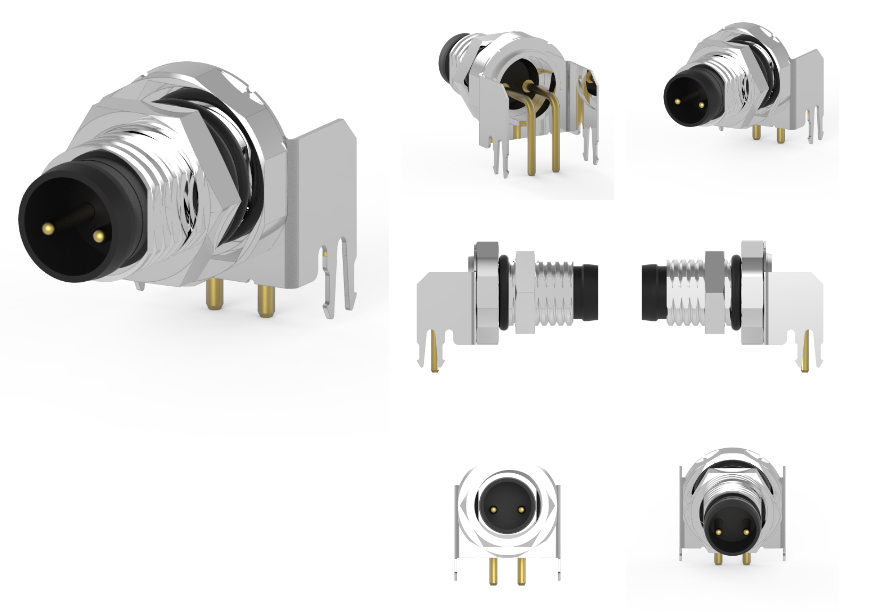

品名：M8 公头 前锁90°插板式防水连接器
1.材料：
1.外壳：PBFASSOLOR
1-2.联系人：黑色
1-3.外壳：黄铜
1-4.-RING：NBR；颜色：黑色
1-5.螺母：黄铜
2.完成：
2-1.触点：最小10微英寸镀金
2-2.外壳：镀镍
2-3.编号：镀镍
3.电气规格：
3-1.额定电流：4A
3-2.额定电压：60V
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


M8 公头 前锁90°插板式防水连接器
M8 公头 前锁90°插板式防水连接器 是一种高度灵活和可靠的连接解决方案，广泛应用于工业自动化、传感器和电子设备等领域。该连接器的设计特点体现在其90°角的前锁结构，这种设计既方便安装，又提供了出色的防水保护。

主要特点
1.前锁机制：
简便连接：前锁设计使得插拔过程更加方便，用户可以在较小的空间内轻松进行连接和断开，适合安装在狭窄空间内的设备。
可靠性：前锁机制确保连接器在连接后能牢牢固定，减少因拉扯或振动造成的分离风险。

2.90°角设计：
空间节省：90°角的结构使得连接器能够更好地适应有限的安装空间，无论在平面或是立体空间中均能灵活应用。
导线走向优化：此设计能够有效管理导线的走向，避免因空间限制而导致的电缆弯折或损坏。

3.防水性能：
IP67 级防护：具备有效防尘和防水功能，能够在潮湿和恶劣环境中使用，保证连接的稳定性。
适应多种环境：适合于液体、湿气和灰尘较多的工业应用场景。

4.优质材料：
耐用性强：连接器采用耐磨损和抗冲击的材料，确保长期稳定运行。
良好电气性能：高导电性的材料能够实现优异的信号传输和电力连接。

5.广泛的兼容性：
多种规格：可与多种不同类型的传感器、执行器和控制器兼容，满足各种应用需求。

应用领域
1.工业自动化：用于自动化设备、传输系统和控制系统的连接，确保高效数据传输。

2.传感器应用：广泛应用于各类传感器的连接，特别是在工厂和生产线的监测系统中。

3.机器人技术：在机器人手臂和自动化设备中使用，提供高可靠性的电气连接。

4.交通运输：在电子控制系统和传动装置中应用，确保设备的稳定性和可靠性。

使用和维护建议
1.安装和连接：
确保在插入连接器时对准插头与插座，轻轻推入直至听到“咔嗤”声，确认锁定。
在连接器的插头和导线上，尽量避免施加过大的拉力，以免导致损坏。

2.定期检查：
定期检查连接器、导线及其周围环境，确保无任何污染、物理损伤或腐蚀现象。
在灰尘或潮湿环境中，及时清洁连接表面，以确保良好接触。

3.电气维护：
定期检验连接器的电气性能，包括电流和电压是否正常，确保无过载现象。
监测信号传输的稳定性，在发现异常时，进行必要的检查与维护。

4.环境适应性：
使用时，确保连接器的防护等级适合其环境要求。
在极端温度或腐蚀性环境中使用时，建议根据实际需要选择更高级别的防护连接器。

总结
M8 公头 前锁90°插板式防水连接器 以其出色的设计和卓越的性能，为工业与自动化设备提供了优质的连接方案。其防水特性、方便的安装方式和良好的材料质量，使其在各种应用中都能发挥关键作用。如需获取更多信息或技术支持，欢迎联系技术员！



Product Name: M8 Male Front Lock 90 ° Plug in Waterproof Connector
1. Materials:
1. Shell: PBFASSOLOR
1-2. Contact: Black
1-3. Shell: Brass
1-4.-RING： NBR； Color: Black
1-5. Nut: Brass
2. Complete:
2-1. Contact: Minimum 10 microinches gold-plated
2-2. Shell: Nickel plated
2-3. Number: Nickel plating
3. Electrical specifications:
3-1. Rated current: 4A
3-2. Rated voltage: 60V
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


M8 male front lock 90 ° plug-in waterproof connector
The M8 male front lock 90 ° plug-in waterproof connector is a highly flexible and reliable connection solution, widely used in fields such as industrial automation, sensors, and electronic devices. The design feature of this connector is reflected in its 90 ° front lock structure, which is both convenient to install and provides excellent waterproof protection.

main features
1. Front locking mechanism:
Easy connection: The front lock design makes the insertion and removal process more convenient, allowing users to easily connect and disconnect in a smaller space, making it suitable for devices installed in narrow spaces.
Reliability: The front locking mechanism ensures that the connector can be firmly fixed after connection, reducing the risk of separation caused by pulling or vibration.

2.90 ° angle design:
Space saving: The 90 ° angle structure allows the connector to better adapt to limited installation space, and can be flexibly applied in both flat and three-dimensional spaces.
Optimization of wire routing: This design can effectively manage the routing of wires and avoid cable bending or damage caused by space limitations.

3. Waterproof performance:
IP67 protection: It has effective dust-proof and waterproof functions, can be used in humid and harsh environments, and ensures the stability of the connection.
Suitable for various environments: Suitable for industrial applications with high levels of liquid, moisture, and dust.

4. High quality materials:
Strong durability: The connector is made of wear-resistant and impact resistant materials to ensure long-term stable operation.
Good electrical performance: Highly conductive materials can achieve excellent signal transmission and power connection.

5. Wide compatibility:
Multiple specifications: Compatible with various types of sensors, actuators, and controllers to meet various application needs.

application area
1. Industrial automation: used for connecting automation equipment, transmission systems, and control systems to ensure efficient data transmission.

2. Sensor applications: Widely used in the connection of various sensors, especially in monitoring systems in factories and production lines.

3. Robotics technology: used in robot arms and automation equipment to provide high reliability electrical connections.

4. Transportation: Applied in electronic control systems and transmission devices to ensure the stability and reliability of equipment.

Usage and maintenance suggestions
1. Installation and connection:
Make sure to align the plug and socket when inserting the connector, gently push in until you hear a "click" sound, and confirm locking.
Try to avoid applying excessive tension on the plug and wires of the connector to prevent damage.

2. Regular inspection:
Regularly inspect connectors, wires, and their surrounding environment to ensure that there is no contamination, physical damage, or corrosion.
Clean the connection surface promptly in dusty or humid environments to ensure good contact.

3. Electrical maintenance:
Regularly inspect the electrical performance of the connector, including whether the current and voltage are normal, to ensure that there is no overload phenomenon.
Monitor the stability of signal transmission and perform necessary checks and maintenance when abnormalities are detected.

4. Environmental adaptability:
When using, ensure that the protection level of the connector is suitable for its environmental requirements.
When used in extreme temperatures or corrosive environments, it is recommended to choose higher-level protective connectors according to actual needs.

summary
The M8 male front lock 90 ° plug-in waterproof connector provides a high-quality connection solution for industrial and automation equipment with its excellent design and performance. Its waterproof properties, convenient installation method, and good material quality enable it to play a critical role in various applications. For more information or technical support, please feel free to contact our technicians!
