KSD-WP-06M2-59-11

KSD-WP-06M2-59-11

  • 产品特性
  • 应用范围

图纸下载 样品申请

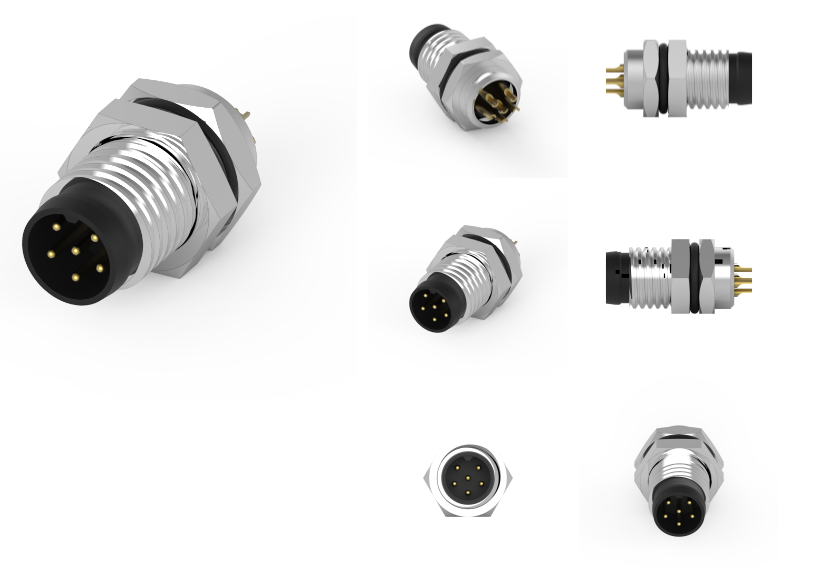

品名：M8 公头 前锁焊线式防水连接器
1.材料：
1.外壳：PBFASSOLOR
1-2.联系人：黑色
1-3.外壳：黄铜
1-4.-RING：NBR；颜色：黑色
1-5.螺母：黄铜
2.完成：
2-1.触点：最小10微英寸镀金
2-2.外壳：镀镍
2-3.编号：镀镍
3.电气规格：
3-1.额定电流：4A
3-2.额定电压：60V
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


M8 公头 前锁焊线式防水连接器
M8 公头 前锁焊线式防水连接器 是一种专为工业自动化和传感器应用设计的高性能连接解决方案。该连接器具有前锁设计，能够提供稳固的连接和卓越的防水能力，广泛应用于要求高防护等级和可靠性的环境中。

主要特点
1.前锁设计：
简便锁定：前锁机制使连接器在连接后牢固锁定，确保在振动或拉力作用下不会轻易脱落，保障系统的可靠性。
便捷连接：用户可以通过简单的推入方式进行连接，特别适合在狭小空间内的安装。

2.焊线式连接：
稳定性强：焊线连接方式可提供更强的电气接触和机械连接，确保信号传输稳定，适合需要长期使用和高稳定性的场合。
灵活性高：用户可以根据需求自定义线缆长度，便于适应不同的应用环境和布线需求。

3.防水性能：
IP67防护等级：该连接器具备良好的防水和防尘性能，能够有效阻挡水和灰尘的侵入，适应高湿度和恶劣环境的应用。
耐候性强：使用材料具有良好的耐腐蚀性，能够抵御多种化学物质的影响，确保在苛刻环境下的长时间稳定运行。

4.多种规格：
多引脚选择：可根据应用需求提供不同的引脚数量配置（如3、4、5、8引脚等），具备灵活性以应对不同的接线需求。
兼容性：可以与各种传感器、执行器及控制设备兼容，提供良好的互联性能。

5.高耐用性：
强化材料：采用高质量的塑料和金属材料，确保连接器在长时间使用中不易磨损和损坏。
抗振动设计：其结构经过特别设计，可以在震动和冲击环境中保持良好的工作状态。

应用领域
1.工业自动化：连接传感器、执行器、PLC等控制系统，支持数据和电力传输。

2.传感器应用：广泛用于各种传感器，如温度、压力、位置传感器等，确保信号的稳定传输。

3.机器人技术：用于工业机器人和自动化设备的电气连接，确保机器的精确控制和可靠性。

4.汽车行业：在汽车电子系统中连接传感器和控制器，提供安全稳定的电气连接。

使用和维护建议
1.安装和连接：
在焊接前，确保导线和连接器端子清洁适配，以保证良好的焊接效果。
焊接完成后，确保热缩管或其他绝缘材料到位，以确保电气绝缘性。

2.定期检查：
定期对连接器进行检查，确保连接牢固，导线无损伤以及防水性能正常。
在极端气候或潮湿环境中，及时清洁连接器表面，以避免污染对接触的影响。

3.电气性能测试：
定期监测连接器的电气性能，如电流和电压，确保在安全范围内运行。
对于频繁使用的连接器，可以进行定期的电气测试，以及时发现潜在问题。

4.环境适应：
使用时，确保选择的连接器具有足够的防护等级，以适应应用环境中的湿度或化学物质因素。
如在极端温度下使用，需确认连接器的额定温度范围，避免造成损坏。

总结
M8 公头 前锁焊线式防水连接器 是一种既安全又高效的连接解决方案，适合于各种工业自动化和传感器应用。其出色的防水性能、便捷的安装方式和良好的耐用性，使其在众多应用场合中表现卓越。如果需要进一步的信息或技术支持，欢迎联系技术员！



Product Name: M8 Male Front Lock Solder Wire Waterproof Connector
1. Materials:
1. Shell: PBFASSOLOR
1-2. Contact: Black
1-3. Shell: Brass
1-4.-RING： NBR； Color: Black
1-5. Nut: Brass
2. Complete:
2-1. Contact: Minimum 10 microinches gold-plated
2-2. Shell: Nickel plated
2-3. Number: Nickel plating
3. Electrical specifications:
3-1. Rated current: 4A
3-2. Rated voltage: 60V
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


M8 male front lock welding wire waterproof connector
The M8 male front lock welding wire waterproof connector is a high-performance connection solution designed specifically for industrial automation and sensor applications. This connector features a front lock design that provides a stable connection and excellent waterproof capability, making it widely used in environments that require high levels of protection and reliability.

main features
1. Front lock design:
Easy locking: The front locking mechanism securely locks the connector after connection, ensuring that it will not easily detach under vibration or tension, ensuring the reliability of the system.
Convenient connection: Users can connect through a simple push in method, especially suitable for installation in small spaces.

2. Solder wire connection:
Strong stability: The wire bonding method can provide stronger electrical and mechanical connections, ensuring stable signal transmission and suitable for situations that require long-term use and high stability.
High flexibility: Users can customize cable lengths according to their needs, making it easy to adapt to different application environments and wiring requirements.

3. Waterproof performance:
IP67 protection level: This connector has good waterproof and dustproof performance, which can effectively block the intrusion of water and dust, and adapt to applications in high humidity and harsh environments.
Strong weather resistance: The materials used have good corrosion resistance and can resist the influence of various chemicals, ensuring long-term stable operation in harsh environments.

4. Multiple specifications:
Multi pin selection: Different pin count configurations (such as 3, 4, 5, 8 pins, etc.) can be provided according to application requirements, providing flexibility to meet different wiring needs.
Compatibility: It can be compatible with various sensors, actuators, and control devices, providing good interconnection performance.

5. High durability:
Reinforced materials: High quality plastic and metal materials are used to ensure that the connector is not easily worn or damaged during long-term use.
Anti vibration design: Its structure has been specially designed to maintain good working conditions in vibration and impact environments.

application area
1. Industrial automation: Connect control systems such as sensors, actuators, and PLCs to support data and power transmission.

2. Sensor applications: Widely used in various sensors, such as temperature, pressure, position sensors, etc., to ensure stable signal transmission.

3. Robotics technology: used for electrical connections between industrial robots and automation equipment to ensure precise control and reliability of machines.

4. Automotive industry: Connect sensors and controllers in automotive electronic systems to provide safe and stable electrical connections.

Usage and maintenance suggestions
1. Installation and connection:
Before welding, ensure that the wires and connector terminals are clean and compatible to ensure good welding results.
After welding is completed, ensure that the heat shrink tubing or other insulation materials are in place to ensure electrical insulation.

2. Regular inspection:
Regularly inspect the connectors to ensure a secure connection, no damage to the wires, and normal waterproof performance.
In extreme weather or humid environments, clean the surface of the connector in a timely manner to avoid the impact of pollution on contact.

3. Electrical performance testing:
Regularly monitor the electrical performance of connectors, such as current and voltage, to ensure safe operation.
For frequently used connectors, regular electrical testing can be conducted to promptly identify potential issues.

4. Environmental adaptation:
When using, ensure that the selected connector has sufficient protection level to adapt to humidity or chemical factors in the application environment.
If used at extreme temperatures, it is necessary to confirm the rated temperature range of the connector to avoid damage.

summary
The M8 male front lock welding wire waterproof connector is a safe and efficient connection solution suitable for various industrial automation and sensor applications. Its excellent waterproof performance, convenient installation method, and good durability make it perform outstandingly in many application scenarios. If you need further information or technical support, please feel free to contact the technician!
