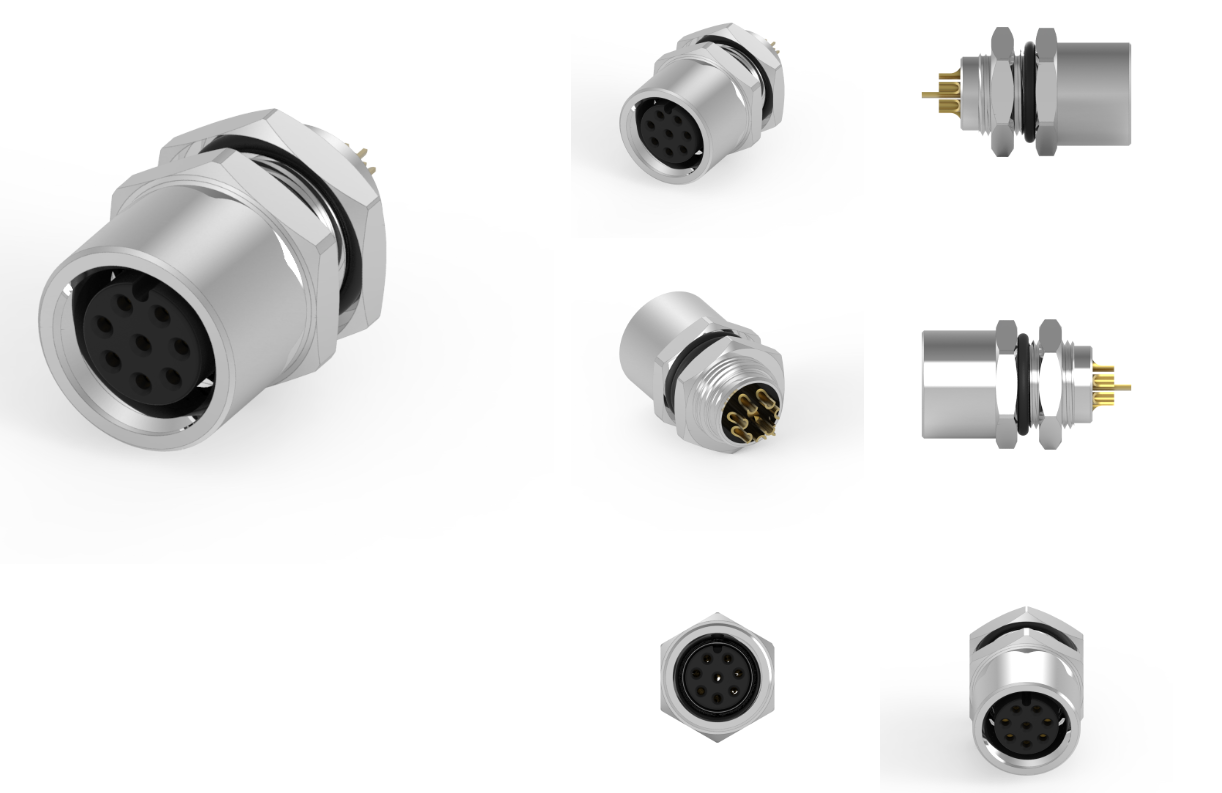

品名：M8 母头防水连接器
注：
1.材料：
1-1.外壳：PBTUL94V0；颜色：黑色
1-2.触点：黄铜
1-3.外壳：黄铜
1-4.编号：黄铜
1-5.O型圈：三元乙丙橡胶；颜色：黑色
2.完成：
2-1.触点：金色闪光
2-2.外壳：镀镍
2-3. 螺母：镀镍
3.电气规格：
3-1.额定电流：4A
3-2.额定电压：60V
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
M8 母头防水连接器
M8 母头防水连接器 是一种在各种电子和工业应用中常用的连接器，广泛应用于自动化、传感器、机器人技术等领域。它们的防水特性使其非常适合在高湿度或多尘的环境中使用。
主要特点
1.防水防尘设计：
高防护等级：通常具有 IP67 或更高的防护等级，可以有效防止水和灰尘进入连接器内部。
密封性：内置的密封圈有效提供防水和防尘性能，确保连接器在严酷的环境下正常运行。
2.坚固耐用：
优质材料：连接器通常采用耐高温、抗腐蚀的塑料和金属材料，增强耐用性。
抗机械应力：设计上考虑了震动和冲击的影响，以确保在恶劣条件下的稳定性。
3.紧凑型设计：
小巧尺寸：M8 尺寸使其非常适合需要节省空间的应用。
轻量化：便于安装和集成，在小型设备中表现优越。
4.多样的引脚配置：
不同针脚选择：提供 3 针、4 针和其他配置，以适应不同的电气需求。
连接方式：支持焊接和插接等多种连接方式，便于不同场景的使用。
5.广泛的兼容性：
统一标准：符合国际标准，可与多种品牌和型号的设备互换。
广泛应用：适用于传感器、执行器、PLC、机器人等多种设备。
应用领域
1.工业自动化：在工厂设备、传感器和控制系统中广泛应用，以实现安全可靠的电气连接。
2.机器人：在工业机器人和协作机器人中，用于连接各种传感器和执行器。
3.交通运输：在铁路、智能交通和物流系统中，确保连接器在恶劣环境下正常运行。
4.医疗设备：在医疗器械和设备中提供安全、稳定的连接，符合防水和防尘的要求。
5.智能家居：用于各种智能硬件中，确保设备的持久性和连接稳定性。
使用注意事项
1.安装和维护：
在安装时要检查密封圈的完好性，以确保防水性能。
定期进行维护和检查，确保连接器接触良好，防止松动和腐蚀。
2.避免过载：
确保不超过连接器的额定电压和电流，以防损坏。
遵循制造商的规格要求，确保安全使用。
3.定期清洁：
定期清洁连接器表面，避免灰尘和污垢积聚。
4.防化学品接触：
避免连接器与腐蚀性液体接触，以延长其使用寿命。
总结
M8 母头防水连接器 以其出色的防水防尘性能、小巧的体积和多样的配置，成为许多工业和电子设备中不可或缺的连接组件。它们能够在多种环境中提供可靠的电气连接，是您设备设计和维护的重要选择。如需更多详细信息或具体产品建议，欢迎联系技术员！
Product Name: M8 Female Waterproof Connector
Note:
1. Materials:
1-1. Shell: PBTUL94V0； Color: Black
1-2. Contact: Brass
1-3. Shell: Brass
1-4. Number: Brass
1-5. O-ring: EPDM rubber; Color: Black
2. Complete:
2-1. Contact: Gold Flash
2-2. Shell: Nickel plated
2-3. Nut: Nickel plated
3. Electrical specifications:
3-1. Rated current: 4A
3-2. Rated voltage: 60V
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
M8 female waterproof connector
M8 female waterproof connector is a commonly used connector in various electronic and industrial applications, widely used in fields such as automation, sensors, robotics, etc. Their waterproof properties make them very suitable for use in high humidity or dusty environments.
main features
1. Waterproof and dustproof design:
High protection level: Typically with an IP67 or higher protection level, it can effectively prevent water and dust from entering the interior of the connector.
Sealing: The built-in sealing ring effectively provides waterproof and dustproof performance, ensuring that the connector operates normally in harsh environments.
2. Durable and sturdy:
High quality materials: Connectors are usually made of high temperature resistant and corrosion-resistant plastic and metal materials to enhance durability.
Resistance to mechanical stress: The design takes into account the effects of vibration and impact to ensure stability under harsh conditions.
3. Compact design:
Compact size: The M8 size makes it perfect for applications that require space saving.
Lightweight: Easy to install and integrate, superior performance in small devices.
4. Diverse pin configurations:
Different pin options: Available in 3-pin, 4-pin, and other configurations to meet different electrical needs.
Connection method: Supports multiple connection methods such as welding and plugging, making it easy to use in different scenarios.
5. Wide compatibility:
Unified standard: Compliant with international standards and interchangeable with various brands and models of equipment.
Widely applicable: Suitable for sensors, actuators PLC、 Various devices such as robots.
application area
1. Industrial automation: widely used in factory equipment, sensors, and control systems to achieve safe and reliable electrical connections.
2. Robots: Used in industrial robots and collaborative robots to connect various sensors and actuators.
3. Transportation: Ensure that connectors operate normally in harsh environments in railways, intelligent transportation, and logistics systems.
4. Medical equipment: Provide safe and stable connections in medical devices and equipment that meet waterproof and dustproof requirements.
5. Smart Home: Used in various smart hardware to ensure device persistence and connection stability.
Precautions for use
1. Installation and maintenance:
Check the integrity of the sealing ring during installation to ensure waterproof performance.
Regularly maintain and inspect the connectors to ensure good contact and prevent loosening and corrosion.
2. Avoid overload:
Ensure that the rated voltage and current of the connector are not exceeded to prevent damage.
Follow the manufacturer's specifications to ensure safe use.
3. Regular cleaning:
Regularly clean the surface of the connector to avoid the accumulation of dust and dirt.
4. Chemical exposure prevention:
Avoid contact between connectors and corrosive liquids to extend their service life.
summary
The M8 female waterproof connector has become an indispensable connecting component in many industrial and electronic devices due to its excellent waterproof and dustproof performance, compact size, and diverse configurations. They can provide reliable electrical connections in various environments and are an important choice for your equipment design and maintenance. If you need more detailed information or specific product suggestions, please feel free to contact the technician!
