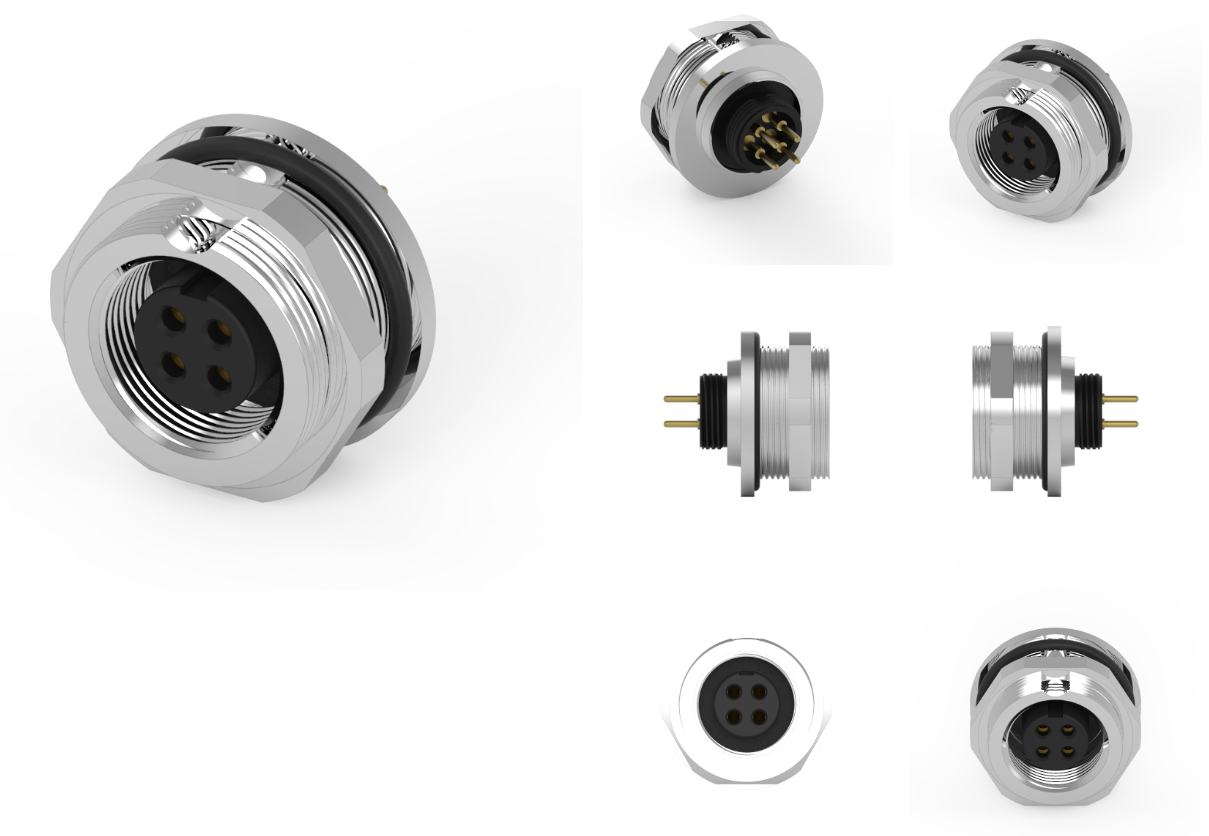

品名：M9 母头防水连接器
1.材料：
1-1.外壳：PA UL94V0；颜色：黑色
1-2.触点：黄铜
1-3.外壳：黄铜
1-4.O型圈A：硅胶；颜色：黑色
1-5.O型圈B:EPDM；颜色：黑色
1-6. 螺母：黄铜
2.完成：
2-1. 触点：金色闪光
2-2.外壳：镀镍
2-3.螺母：镀镍
电气规格：
3-1.额定电流（40℃）：2~3P4A；4~5P3A；7~8P1A
3-2.额定电压：125V
3-3.防水等级：IP67
4.环境：
4-1.工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
M9 母头防水连接器
M9 母头防水连接器 是一种具有防水和防尘特性的电气连接组件，常用于各种工业自动化、传感器、机器人和其他电子设备中。由于其紧凑设计和高可靠性，M9 母头防水连接器在恶劣环境中表现出色。
主要特点
1.防水防尘设计：
高防护等级：通常达到 IP67 或更高，能够有效防止水和灰尘进入连接器内部，适合潮湿或多尘环境。
密封结构：采用密封圈和防护套设计，确保在极端条件下的可靠性。
2.耐用性：
优质材料：连接器通常使用耐高温、耐腐蚀的工程塑料或金属材料，确保其在恶劣环境下的持久性。
抗机械应力：坚固的结构设计能够抵御震动和冲击，确保连接的稳定性。
3.多样的引脚配置：
多种针脚选项：提供从 3 针到 8 针及更多配置，以满足不同设备的电气需求。
方便连接：插拔式设计，简化连接和断开过程，提升用户体验。
4.紧凑型设计：
小巧设计：M9 的紧凑尺寸使其适合空间受限的应用场景，易于集成到各种设备中。
轻量化结构：减少整体设备的重量，方便安装和维护。
5.广泛兼容性：
标准化：符合国际标准，能够与多种品牌和型号的设备兼容，适应性强。
多领域应用：适用于传感器、执行器、PLC 控制器及其他工业设备。
应用领域
1.工业自动化：在自动化生产线中的各种控制器和传感器之间提供可靠的连接。
2.机器人技术：广泛应用于工业机器人和协作机器人中，为其提供稳定的电气连接。
3.交通运输：在铁路、智能交通系统中，确保在湿润环境中可靠工作。
4.医疗设备：符合医疗行业的标准，确保医疗器械的防水防尘性能。
5.智能家居：用于连接智能传感器和设备，确保其在复杂环境中的运行稳定。
使用注意事项
1.安装和维护：
安装时确保密封圈处于良好状态，以增强连接的防水性能。
定期检查连接器，确保无磨损和老化，保持良好接触。
2.电气负载：
遵循制造商给出的电压和电流规格，以防止过载损坏。
注意不同针脚的功能，避免接错。
3.定期清洁：
定期清洁连接器表面，以防污垢和灰尘积聚影响连接性能。
仔细处理连接器，避免强力拉扯或扭动。
4.避免化学品接触：
远离腐蚀性化学品，以延长连接器的使用寿命。
应用在不易接触化学物质的环境中。
总结
M9 母头防水连接器 以其优良的防水防尘能力、耐用性和多样的连接选择，在各种工业和电子应用中发挥着重要作用。它能够在复杂的使用环境中提供稳定可靠的电气连接。如需更多详细信息或具体产品的建议，欢迎联系技术员！
Product Name: M9 Female Waterproof Connector
1. Materials:
1-1. Shell: PA UL94V0； Color: Black
1-2. Contact: Brass
1-3. Shell: Brass
1-4. O-ring A: Silicone; Color: Black
1-5. O-ring B: EPDM； Color: Black
1-6. Nut: Brass
2. Complete:
2-1. Contact: Gold Flash
2-2. Shell: Nickel plated
2-3. Nut: Nickel plated
Electrical specifications:
3-1. Rated current (40 ℃): 2-3P4A; 4~5P3A； 7~8P1A
3-2. Rated voltage: 125V
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
M9 female waterproof connector
M9 female waterproof connector is an electrical connection component with waterproof and dustproof characteristics, commonly used in various industrial automation, sensors, robots, and other electronic devices. Due to its compact design and high reliability, the M9 female waterproof connector performs well in harsh environments.
main features
1. Waterproof and dustproof design:
High protection level: usually reaching IP67 or higher, it can effectively prevent water and dust from entering the interior of the connector, suitable for humid or dusty environments.
Sealing structure: Designed with sealing rings and protective sleeves to ensure reliability under extreme conditions.
2. Durability:
High quality materials: Connectors typically use engineering plastics or metal materials that are resistant to high temperatures and corrosion, ensuring their durability in harsh environments.
Anti mechanical stress: The sturdy structural design can withstand vibrations and impacts, ensuring the stability of the connection.
3. Diverse pin configurations:
Multiple pin options: available in configurations ranging from 3-pin to 8-pin and more to meet the electrical needs of different devices.
Convenient connection: Plug in design simplifies the connection and disconnection process, enhancing user experience.
4. Compact design:
Compact Design: The M9's compact size makes it suitable for space constrained applications and easy to integrate into various devices.
Lightweight structure: reduces the overall weight of the equipment, facilitates installation and maintenance.
5. Wide compatibility:
Standardization: Complies with international standards, is compatible with multiple brands and models of equipment, and has strong adaptability.
Multi domain applications: suitable for sensors, actuators, PLC controllers, and other industrial equipment.
application area
1. Industrial automation: Provide reliable connections between various controllers and sensors in automated production lines.
2. Robotics technology: widely used in industrial robots and collaborative robots to provide stable electrical connections.
3. Transportation: Ensure reliable operation in humid environments in railways and intelligent transportation systems.
4. Medical equipment: Meet the standards of the medical industry to ensure the waterproof and dustproof performance of medical devices.
5. Smart Home: Used to connect smart sensors and devices to ensure their stable operation in complex environments.
Precautions for use
1. Installation and maintenance:
Ensure that the sealing ring is in good condition during installation to enhance the waterproof performance of the connection.
Regularly inspect the connectors to ensure no wear and aging, and maintain good contact.
2. Electrical load:
Follow the voltage and current specifications provided by the manufacturer to prevent overload damage.
Pay attention to the functions of different pins to avoid misconnection.
3. Regular cleaning:
Regularly clean the surface of the connector to prevent dirt and dust from accumulating and affecting the connection performance.
Handle the connector carefully to avoid strong pulling or twisting.
4. Avoid contact with chemicals:
Stay away from corrosive chemicals to extend the service life of connectors.
Applied in environments that are not easily exposed to chemicals.
summary
M9 female waterproof connectors play an important role in various industrial and electronic applications due to their excellent waterproof and dustproof capabilities, durability, and diverse connection options. It can provide stable and reliable electrical connections in complex usage environments. If you need more detailed information or specific product suggestions, please feel free to contact the technician!
