KSD-DB-15M2-07-11

KSD-DB-15M2-07-11

  • 产品特性
  • 应用范围

图纸下载 样品申请

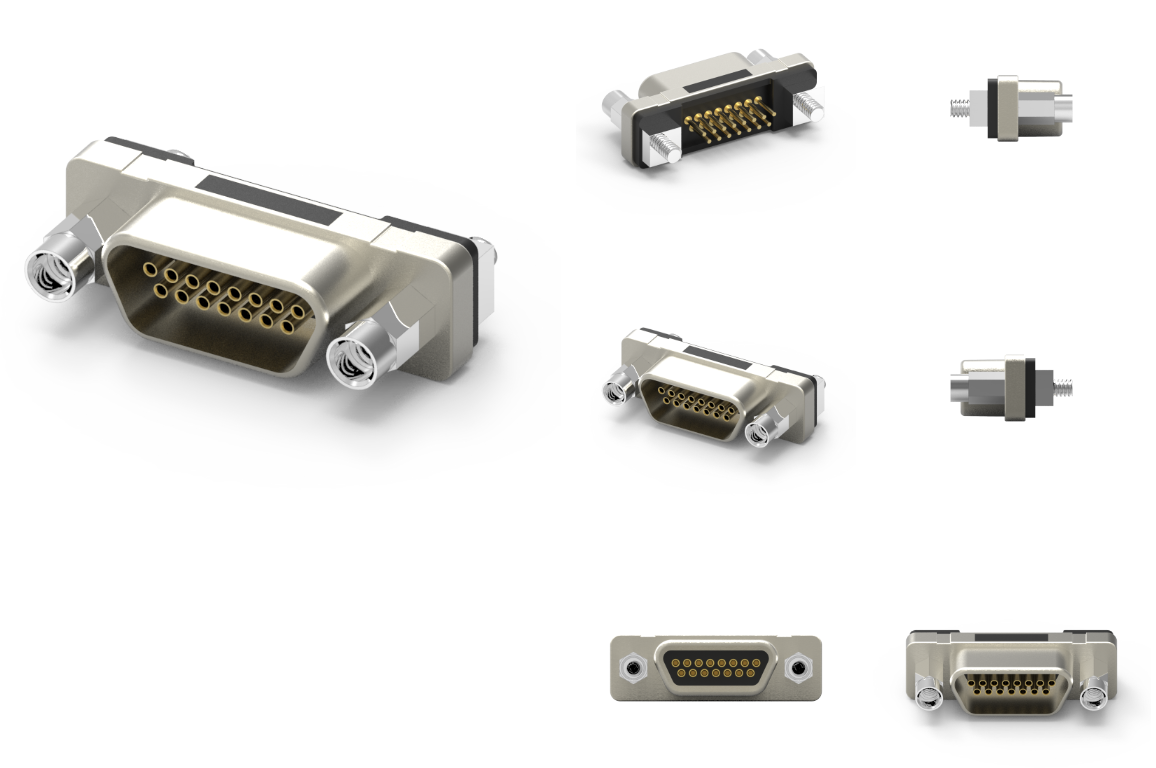

品名：Micro D-Sub 公头连接器
1.材料
1-1.外壳：PBT UL94V-0；颜色：黑色
1-2.触点：黄铜
1.3.外壳：锌合金
2.完成：
2-1. 触点：锻造和焊接区15u“镀金，6Ou”最小镀镍
2-2.外壳：整体镀镍60U“~100U”
3.电气规格：
3-1.额定电流：25℃/77°F时1A，70℃/158°F时0.7A
3-2.电压：350V交流电
3-3.耐压：630V交流电
3-4.接触电阻：初始值15m（最大）
最终接触电阻30m（最大）
3-5. 绝缘电阻。1000 M欧姆（最小值）
4.环境：
4-1.0工作温度：-40℃~+125℃


Micro D-Sub 公头连接器 是一种小型化的 D-Sub 连接器，通常用于空间有限且需要高连接密度的应用场合。与标准 D-Sub 连接器相比，Micro D-Sub 连接器尺寸更小，但依然保持了良好的电气性能和机械强度。

Micro D-Sub 公头连接器概述
特征

1.小型设计：
Micro D-Sub 连接器的尺寸较小，适合密集安装的电子设备，节省板上空间，同时在不牺牲性能的情况下提供高针脚密度。

2.引脚数量：
Micro D-Sub 公头通常提供从9针到37针等多种不同配置，以满足不同信号连接的需求。

3.可靠的连接：
采用插拔式设计，确保在重复插拔时有良好的接触性能。插头和插座之间具有良好的抗插拔力，以避免意外的断开。

4.兼容性：
Micro D-Sub 连接器通常遵循 MIL-STD-202 和 IEC 61076-4-101 等国际标准，确保广泛兼容性。

5.材质：
公头外壳一般由镀镍或镀金的金属材料制作，增加结构强度和抗腐蚀能力。引脚则用高导电性的合金材料制造，确保良好的电气导通性能。

性能参数
额定电流：通常在1A到5A之间（具体数值会因制造商和型号而异）。

额定电压：通常为30V到500V（根据具体的型号和应用）。

工作温度范围：一般为-40°C到+125°C，适应多种环境条件。

应用领域

1.通信设备：
在数据通信设备、网络设备等中用于信号连接。

2.工业自动化：
用于 PLC、传感器、驱动器等设备的连接。

3.医疗设备：
在医疗仪器、监测设备中，实现信号采集和控制。

4.军事和航空航天：
用于飞机、卫星等军事及航天设备，满足严格的法规和可靠性要求。

5.消费电子产品：
在音频设备、摄像机、电子玩具等中也很常见。

安装与维护建议

1.连接前确认：
在连接之前检查连接器的针脚和接口，确保没有污垢或物理损伤。

2.插入方向：
确保正确的插入方向，以避免损坏引脚或接口。

3.注意固定：
在安装过程中，确保连接器与板或设备牢固连接，防止震动松动。

4.定期检查：
定期检查连接器，确保良好的电气接触，必要时进行清洁和维护。

总结
Micro D-Sub 公头连接器 提供了一种紧凑、高效的连接解决方案，非常适合对空间要求严格的场合。其多种针脚配置和良好的电气性能使其在众多应用中具有很高的灵活性和可靠性。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！



Product Name: Micro D-Sub Male Connector
1. Materials
1-1. Shell: PBT UL94V-0； Color: Black
1-2. Contact: Brass
1.3. Shell: Zinc alloy
2. Complete:
2-1.  Contact: Forging and welding area 15u "gold plating, 6Ou" minimum nickel plating
2-2. Shell: Whole nickel plated 60U "~100U"
3. Electrical specifications:
3-1. Rated current: 1A at 25 ℃/77 ° F, 0.7A at 70 ℃/158 ° F
3-2. Voltage: 350V AC
3-3. Voltage withstand: 630V AC
3-4. Contact resistance: Initial value of 15m (maximum)
Final contact resistance 30m (maximum)
3-5.  Insulation resistance. 1000 M ohms (minimum)
4. Environment:
4-1.0 Operating temperature:- 40℃~+125℃


Micro D-Sub male connector is a miniaturized D-Sub connector commonly used in applications where space is limited and high connection density is required. Compared to standard D-Sub connectors, Micro D-Sub connectors are smaller in size but still maintain good electrical performance and mechanical strength.

Overview of Micro D-Sub Male Connector
features

1. Small scale design:
The Micro D-Sub connector has a smaller size and is suitable for densely installed electronic devices, saving board space while providing high pin density without sacrificing performance.

2. Number of pins:
Micro D-Sub male connectors typically offer various configurations ranging from 9-pin to 37 pin to meet the needs of different signal connections.

3. Reliable connection:
Adopting a plug-in design to ensure good contact performance during repeated plugging and unplugging. The plug and socket have good resistance to insertion and extraction to avoid accidental disconnection.

4. Compatibility:
Micro D-Sub connectors typically follow international standards such as MIL-STD-202 and IEC 61076-4-101 to ensure broad compatibility.

5. Material:
The male head shell is generally made of metal materials plated with nickel or gold to increase structural strength and corrosion resistance. The pins are made of highly conductive alloy materials to ensure good electrical conductivity.

performance parameter
Rated current: usually between 1A and 5A (specific values may vary by manufacturer and model).

Rated voltage: usually 30V to 500V (depending on the specific model and application).

Working temperature range: generally -40 ° C to+125 ° C, suitable for various environmental conditions.

application area

1. Communication equipment:
Used for signal connection in data communication equipment, network equipment, etc.

2. Industrial automation:
Used for connecting devices such as PLCs, sensors, drivers, etc.

3. Medical equipment:
Realize signal acquisition and control in medical instruments and monitoring equipment.

4. Military and Aerospace:
Used for military and aerospace equipment such as airplanes and satellites, meeting strict regulations and reliability requirements.

5. Consumer electronics products:
It is also common in audio devices, cameras, electronic toys, etc.

Installation and maintenance recommendations

1. Confirm before connection:
Before connecting, check the pins and interfaces of the connector to ensure there is no dirt or physical damage.

2. Insertion direction:
Ensure correct insertion direction to avoid damaging pins or interfaces.

3. Pay attention to fixation:
During installation, ensure that the connector is securely connected to the board or device to prevent vibration loosening.

4. Regular inspection:
Regularly inspect connectors to ensure good electrical contact, and clean and maintain them as necessary.

summary
The Micro D-Sub male connector provides a compact and efficient connection solution, making it ideal for spaces with strict requirements. Its multiple pin configurations and excellent electrical performance make it highly flexible and reliable in many applications. If you have further questions or need specific technical parameters, please feel free to contact the technician!
