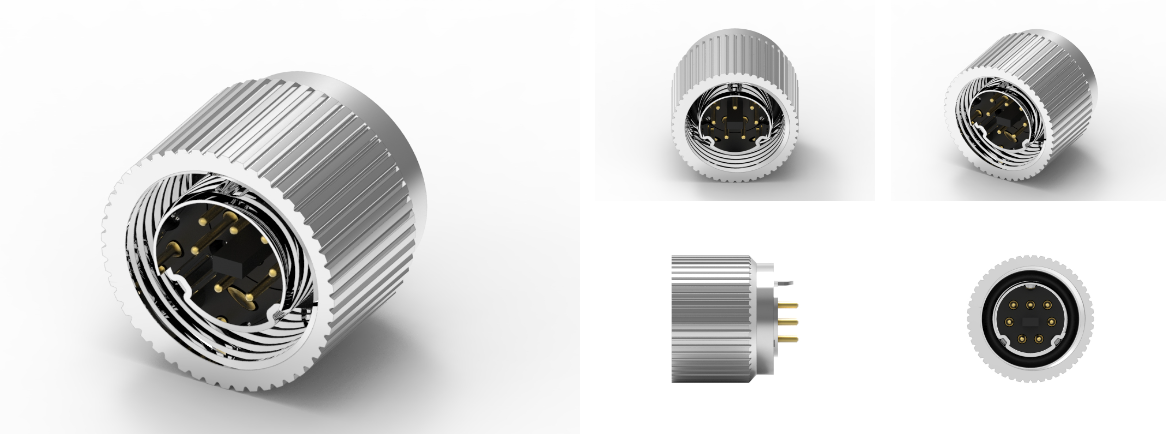

品名：Mini DIN 公头线端成型式防水连接器
1.材料
1-1.房屋：PBT UL94V-0；颜色：黑色
1-2.触点：黄铜
1-3.编号：黄铜
1-4.外壳：黄铜
1-5.0-RING：NBR；颜色：黑色
2.完成：
底板：镍
2-1.编号：镀镍。
2-2.外壳：镀镍。
3.电气规格：
3-1.额定电流：2A
3-2.额定电压：12V
3-3.防水等级：IP67
4.环境：
4-1.0工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
Mini DIN 公头线端成型式防水连接器是一种小型且具有防水性能的连接器，广泛应用于各类电子设备和工业应用中。这种连接器被设计用于提供可靠的电气连接，同时防止水分、灰尘和其他外部污染物的侵入。
主要特征：
1.小型设计：
Mini DIN连接器具有紧凑的设计，适合需要节省空间的应用，如小型设备、便携式设备和嵌入式系统。
2.防水性能：
许多Mini DIN连接器采用了防水设计，通常符合IP65或IP67的标准，能够在潮湿的环境中有效防止水分和灰尘的进入。
3.多种针脚配置：
Mini DIN连接器通常提供多种针脚数（如4针、6针、8针等），满足不同的电信号和功率需求。
4.线端成型设计：
该连接器为线端成型式，意味着其导线已直接焊接到连接器上，提供极高的连接可靠性，减少了接触不良的风险。
5.材料与耐用性：
通常由耐用的塑料或金属外壳制造，具备良好的抗冲击和耐腐蚀性能，提高了在恶劣环境中的使用寿命。
6.便利的安装：
该连接器设计通常易于安装和维护，带有锁定机制，确保连接的紧密性和可靠性。
应用领域：
Mini DIN 公头线端成型式防水连接器广泛应用于以下领域：
音频和视频设备
医疗设备
工业控制和自动化设备
交通运输和仪器仪表
通信设备
运动器材和户外设备
安装和维护建议：
安装时：
确保连接器和电缆是干燥和清洁的，以避免在连接过程中将水分或灰尘带入。
确保在安装时遵循厂家提供的安装指导，以确保正确连接。
维护时：
定期检查连接器的密封状态，确保其防水性。
在使用过程中避免过度拉扯电缆，以防止连接器受损。
总结：
Mini DIN 公头线端成型式防水连接器是一种理想的选择，适用于需要防水和耐用性的电子和工业应用。其紧凑的设计和可靠的性能使其在现代设备中得到广泛应用，确保了长期稳定的电气连接。如果您有更具体的应用需求或问题，请联系技术员！
Product Name: Mini DIN Male Wire End Forming Waterproof Connector
1. Materials
1-1. House: PBT UL94V-0； Color: Black
1-2. Contact: Brass
1-3. Number: Brass
1-4. Shell: Brass
1-5.0-RING： NBR； Color: Black
2. Complete:
Bottom plate: Nickel
2-1. Number: Nickel plating.
2-2. Shell: Nickel plated.
3. Electrical specifications:
3-1. Rated current: 2A
3-2. Rated voltage: 12V
3-3. Waterproof grade: IP67
4. Environment:
4-1.0 Operating temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Mini DIN male end molded waterproof connector is a small and waterproof connector widely used in various electronic devices and industrial applications. This type of connector is designed to provide reliable electrical connections while preventing the intrusion of moisture, dust, and other external pollutants.
Main features:
1. Small scale design:
The Mini DIN connector has a compact design, making it suitable for space saving applications such as small devices, portable devices, and embedded systems.
2. Waterproof performance:
Many Mini DIN connectors feature waterproof design, typically meeting IP65 or IP67 standards, effectively preventing moisture and dust from entering in humid environments.
3. Multiple pin configurations:
Mini DIN connectors typically offer multiple pin numbers (such as 4-pin, 6-pin, 8-pin, etc.) to meet different electrical signal and power requirements.
4. End forming design:
This connector is a wire end molded type, which means that its wires have been directly soldered to the connector, providing extremely high connection reliability and reducing the risk of poor contact.
5. Materials and Durability:
Usually made of durable plastic or metal casing, it has good impact resistance and corrosion resistance, improving its service life in harsh environments.
6. Convenient installation:
This connector design is typically easy to install and maintain, with a locking mechanism to ensure tight and reliable connections.
Application areas:
Mini DIN male end molded waterproof connectors are widely used in the following fields:
Audio and video equipment
Medical equipment
Industrial control and automation equipment
Transportation and Instrumentation
Communication equipment
Sports equipment and outdoor equipment
Installation and maintenance recommendations:
During installation:
Ensure that connectors and cables are dry and clean to avoid introducing moisture or dust during the connection process.
Ensure to follow the installation instructions provided by the manufacturer during installation to ensure proper connection.
During maintenance:
Regularly check the sealing status of the connector to ensure its waterproofness.
Avoid excessive pulling of the cable during use to prevent damage to the connector.
Summary:
The Mini DIN male end molded waterproof connector is an ideal choice for electronic and industrial applications that require waterproofing and durability. Its compact design and reliable performance make it widely used in modern equipment, ensuring long-term stable electrical connections. If you have more specific application requirements or questions, please contact the technician!
