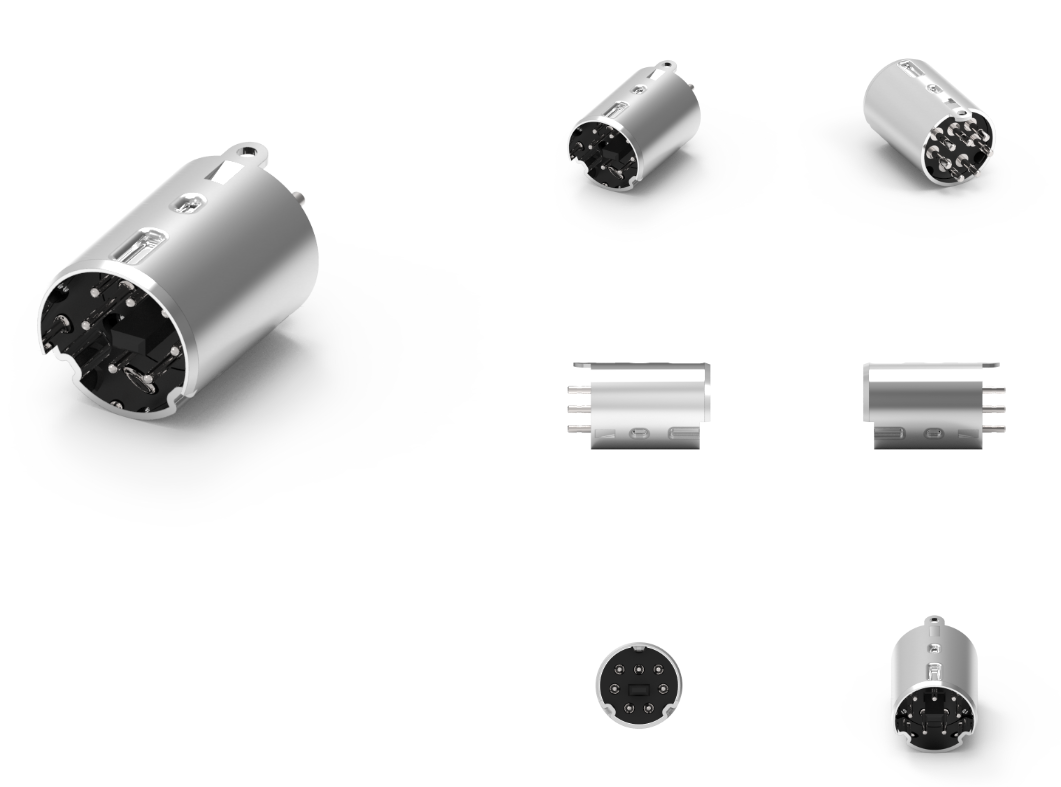

品名：Mini DIN 公头线端成型式连接器
注：
1.材料：
1-1. 住房：见表A；颜色：黑色
1-2.触点：黄铜
1-3.外壳：黄铜T=0.4
2.完成：
2-1.外壳：整体镀镍
品牌：科斯达开关KSDKG
产地：中国东莞
Mini DIN 公头线端成型式连接器是一种小型且常用于各种电子设备和工业应用的连接器。它在设计上具有紧凑性和高性能，能够提供可靠的电气连接。以下是该连接器的一些主要特性和应用信息。
主要特征
1.紧凑设计：
Mini DIN连接器因其小型设计非常适合需要节省空间的应用，如消费电子产品、小型设备和嵌入式系统。
2.连接性能：
具有良好的电气性能，通常能够支持高频率信号传输，适合音频和视频信号的连接。
3.多种引脚配置：
提供不同的引脚数（如4针、6针、8针等），可以满足不同设备的连接需求。
4.线端成型设计：
这种连接器采用线端成型技术，意味着导线已经与连接器焊接在一起，减少了连接不良的风险，并提高了连接的可靠性。
5.简便的安装：
安装方便，通常带有锁定机制，确保连接的紧密性。插拔操作也比较简便，适合频繁连接和断开的场合。
6.材料与耐用性：
Mini DIN连接器通常由优质的塑料或金属外壳制成，具备耐用性，能够适应各种环境条件。
应用领域
Mini DIN 公头线端成型式连接器广泛应用于以下领域：
音视频设备：适用于音频接口、显示器连接和视频设备等。
计算机和外围设备：常用于连接键盘、鼠标和打印机等。
医疗设备：用于医疗系统中的数据传输和控制。
家用电器：如音响系统、DVD播放机等。
工业控制：在自动化和控制系统中进行信号传输。
安装与维护
安装注意事项：
在连接前确保连接器和电缆处于干燥清洁状态，以免影响连接性能。
确保对照产品说明书正确插入，避免损坏连接器。
维护建议：
定期检查连接器是否有磨损或损坏，确保其可靠性。
避免长时间拉扯电缆，以防损坏连接器或电缆本身。
总结
Mini DIN 公头线端成型式连接器因其出色的可靠性、适应性和紧凑的设计，成为电子和工业设备中重要的组成部分。无论是在音频视频传输还是在控制信号中，它都能够提供高效的连接解决方案。如果您有更具体的应用需求或问题，请联系技术员！
Product Name: Mini DIN Male Wire End Forming Connector
Note:
1. Materials:
1-1. Housing: see Table A; Color: Black
1-2. Contact: Brass
1-3. Shell: Brass T=0.4
2. Complete:
2-1. Shell: Nickel plated overall
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Mini DIN male end molded connector is a small and commonly used connector for various electronic devices and industrial applications. It is designed to be compact and high-performance, providing reliable electrical connections. Here are some of the main features and application information of this connector.
Main features
1. Compact design:
The Mini DIN connector is highly suitable for space saving applications such as consumer electronics, small devices, and embedded systems due to its compact design.
2. Connection performance:
Has good electrical performance, usually able to support high-frequency signal transmission, suitable for connecting audio and video signals.
3. Multiple pin configurations:
Providing different pin numbers (such as 4-pin, 6-pin, 8-pin, etc.) can meet the connection requirements of different devices.
4. End forming design:
This type of connector adopts wire end forming technology, which means that the wires have been welded together with the connector, reducing the risk of poor connection and improving the reliability of the connection.
5. Easy installation:
Easy to install, usually with a locking mechanism to ensure tight connection. The plugging and unplugging operation is also relatively simple, suitable for situations where frequent connections and disconnections occur.
6. Materials and Durability:
Mini DIN connectors are typically made of high-quality plastic or metal casing, with durability and the ability to adapt to various environmental conditions.
application area
Mini DIN male end molded connectors are widely used in the following fields:
Audio and video equipment: suitable for audio interfaces, monitor connections, and video devices.
Computers and peripherals: commonly used to connect keyboards, mice, printers, etc.
Medical equipment: used for data transmission and control in medical systems.
Household appliances: such as audio systems, DVD players, etc.
Industrial control: Signal transmission in automation and control systems.
Installation and maintenance
Installation precautions:
Before connecting, ensure that the connector and cable are in a dry and clean state to avoid affecting the connection performance.
Ensure correct insertion according to the product manual to avoid damaging the connector.
Maintenance suggestion:
Regularly inspect the connectors for wear or damage to ensure their reliability.
Avoid pulling the cable for a long time to prevent damage to the connector or the cable itself.
summary
Mini DIN male end molded connectors have become an important component in electronic and industrial equipment due to their excellent reliability, adaptability, and compact design. It can provide efficient connection solutions for both audio and video transmission and control signals. If you have more specific application requirements or questions, please contact the technician!
