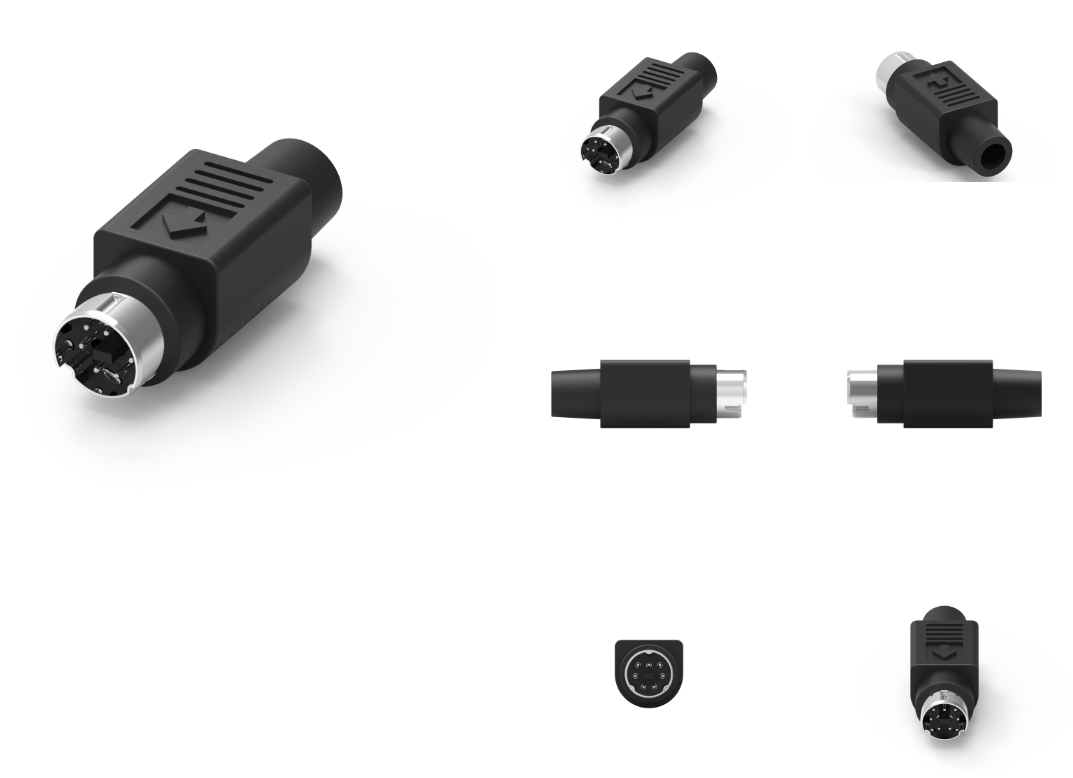

品名：Mini DIN 公头组装式连接器
1.材料
1-1. 住房：PBT
1-2. 触点：黄铜
1-3. 塑料盖：TPU
1-4.外壳：黄铜
1-5.盖子：黄铜
2.完成：
2-1.联系方式：见表A
2-2.外壳：镀镍6Ou”
2-3.CAP：镀镍6Ou“
3.电气规格：
3-1.额定电流：2A
3-2.额定电压：12V
3-3.绝缘电阻：250伏时为50欧姆
3-4.绝缘强度：250AC 1分钟
4.环境：
4-1.0工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
Mini DIN 公头组装式连接器是一种常见的小型连接器，广泛应用于各种电子设备中。与线端成型式连接器不同，组装式连接器允许用户在现场尽量减少对专用工具的需求，以便根据需要进行组装和拆卸。以下是关于Mini DIN 公头组装式连接器的详细信息。
主要特征
1.组装方式：
组装式连接器通常由多个部件组成，包括住房、接触针、绝缘体以及外壳。用户可以根据需要自行组装和拆卸。
2.多种引脚配置：
Mini DIN连接器提供多个引脚数量选项（如4针、6针、8针等），可以满足不同的电气连接需求。
3.可靠性：
该连接器设计遵循高可靠性标准，金属或塑料材料使其适应各种环境，并提供良好的耐久性。
4.简便的安装：
组装式设计使得连接器的安装和维护更加灵活，用户可以在现场对其进行组装。
5.兼容性：
Mini DIN连接器的设计标准化程度高，适用于多种设备和系统，便于与其他设备连接。
6.抗干扰性：
其设计通常能有效抵御电磁干扰（EMI），确保信号传输的稳定性和清晰度。
应用领域
Mini DIN 公头组装式连接器广泛应用于以下领域：
音频设备：例如连接耳机、音频输入输出设备等。
计算机输入设备：如键盘、鼠标和打印机等。
家用电器：包括高级音响系统和娱乐中心。
网络设备：在一些老旧网络设备中，Mini DIN也可以用于数据传输。
机动车辆：在汽车音响和娱乐系统中可找到其身影。
安装与维护建议
安装注意事项：
确保所有组装部件完好，且组装时遵循制造商提供的说明。
连接器插入前，需检查插头和插座的清洁度，以保证连接性能。
维护建议：
定期检查连接器的状态，确保没有老化或腐蚀现象。
在非使用时，尽量避免把连接器暴露在极端温度或潮湿环境中。
总结
Mini DIN 公头组装式连接器以其高可靠性、易于组装和多样的应用场景，成为一款受欢迎的连接器解决方案。它不仅适用于音频和视频设备，还广泛应用于计算机、家用电器以及其他工业与商业设备中。在实际使用中，合理的安装与维护将大大延长其使用寿命并提升性能。如果您有更具体的应用需求或问题，请联系技术员！
Product Name: Mini DIN Male Assembled Connector
1. Materials
1-1. Housing: PBT
1-2. Contact: Brass
1-3. Plastic cover: TPU
1-4. Shell: Brass
1-5. Lid: Brass
2. Complete:
2-1. Contact Information: See Table A
2-2. Shell: Nickel plated 6Ou "
2-3. CAP: Nickel plated 6Ou“
3. Electrical specifications:
3-1. Rated current: 2A
3-2. Rated voltage: 12V
3-3. Insulation resistance: 50 ohms at 250 volts
3-4. Insulation strength: 250AC for 1 minute
4. Environment:
4-1.0 Operating temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Mini DIN male connector is a common small connector widely used in various electronic devices. Unlike wire end molded connectors, assembled connectors allow users to minimize the need for specialized tools on-site, allowing for assembly and disassembly as needed. The following is detailed information about Mini DIN male assembled connectors.
Main features
1. Assembly method:
Modular connectors typically consist of multiple components, including housing, contact pins, insulators, and housing. Users can assemble and disassemble as needed.
2. Multiple pin configurations:
Mini DIN connectors offer multiple pin count options (such as 4-pin, 6-pin, 8-pin, etc.) to meet different electrical connection needs.
3. Reliability:
The connector design follows high reliability standards, with metal or plastic materials making it adaptable to various environments and providing good durability.
4. Easy installation:
The modular design makes the installation and maintenance of connectors more flexible, and users can assemble them on site.
5. Compatibility:
The design standardization of Mini DIN connectors is high, suitable for various devices and systems, and easy to connect with other devices.
6. Anti interference:
Its design usually effectively resists electromagnetic interference (EMI), ensuring the stability and clarity of signal transmission.
application area
Mini DIN male assembled connectors are widely used in the following fields:
Audio devices: such as connecting headphones, audio input/output devices, etc.
Computer input devices such as keyboards, mice, and printers.
Household appliances: including high-end audio systems and entertainment centers.
Network equipment: In some old network devices, Mini DIN can also be used for data transmission.
Motor vehicles: Their presence can be found in car audio and entertainment systems.
Installation and maintenance recommendations
Installation precautions:
Ensure that all assembled components are in good condition and follow the manufacturer's instructions during assembly.
Before inserting the connector, it is necessary to check the cleanliness of the plug and socket to ensure the connection performance.
Maintenance suggestion:
Regularly check the status of the connector to ensure there is no aging or corrosion.
When not in use, try to avoid exposing the connector to extreme temperatures or humid environments.
summary
Mini DIN male assembled connectors have become a popular connector solution due to their high reliability, ease of assembly, and diverse application scenarios. It is not only suitable for audio and video devices, but also widely used in computers, household appliances, and other industrial and commercial equipment. In practical use, proper installation and maintenance will greatly extend its service life and improve performance. If you have more specific application requirements or questions, please contact the technician!
