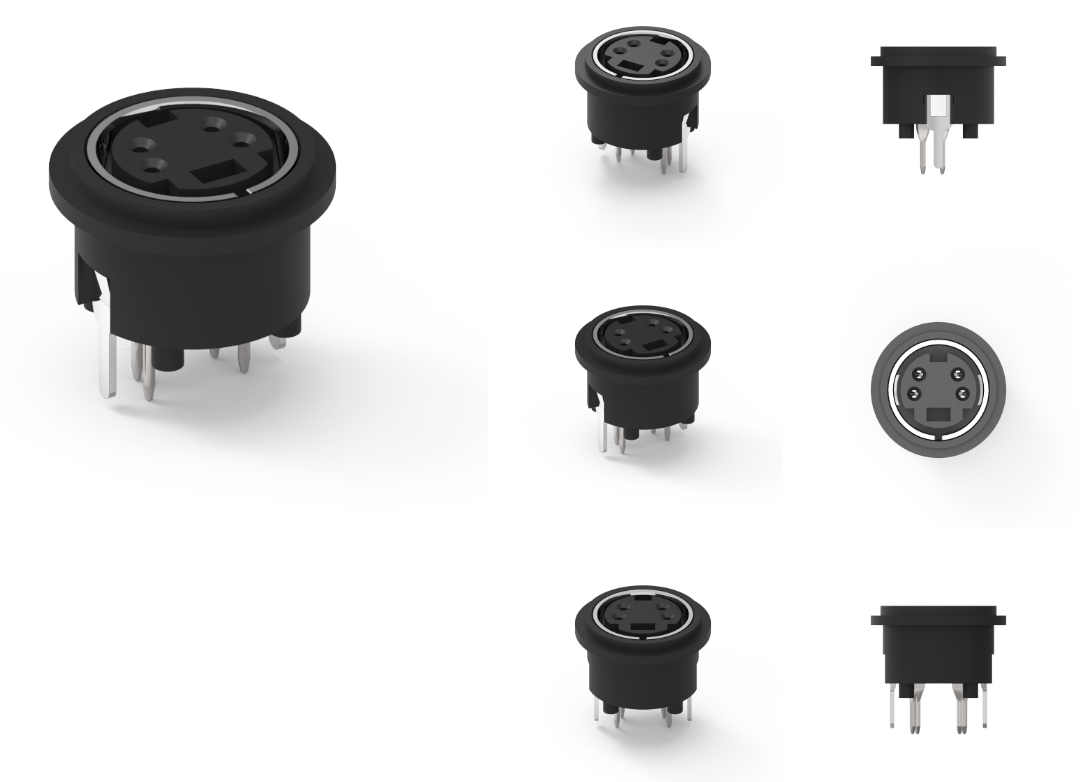

品名：Mini DIN 母头插板式连接器
1.材料
1-1.外壳：PBT UL94V0；颜色：黑色
1-2.触点：磷青铜
1-3.外壳：黄铜
2.完成
2-1.触点：光亮镀锡
2-2.外壳：镀镍
3.电气规格：
3-1，额定电流：2A
3-2.额定电压：12V
4.环境
4-1.0工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
Mini DIN 母头插板式连接器是一种小型、紧凑型的连接器，常用于电子设备和电气应用中。与公头连接器配合使用，母头插板式连接器提供了可靠的电气连接，广泛应用于音频、视频、数据传输以及各种工业设备中。以下是关于Mini DIN 母头插板式连接器的详细信息。
主要特征
1.插板式设计：
母头插板式连接器设计为可以直接插入电路板或设备外壳中，固定安装，便于在设备内部或外部进行连接。
2.多种引脚配置：
Mini DIN母头连接器的引脚数量一般为4针、6针、8针等多种配置，用户可以根据需要选择合适的型号。
3.高可靠性：
采用优质材料制造，通常具备抗干扰性和耐用性，适应不同环境条件，有效降低故障率。
4.便于安装：
安装过程简便，通常通过焊接或插入固定在电路板上，易于在生产或维护过程中进行更换。
5.兼容性：
Mini DIN连接器设计标准化程度高，能够与各种设备和互连标准兼容，提供广泛的应用灵活性。
应用领域
Mini DIN 母头插板式连接器广泛应用于以下领域：
音频设备：用于连接音频输入和输出端口，如音响系统、放大器和音频处理器等。
视频设备：在某些视频传输系统中被使用，如摄像机和显示器之间的连接。
计算机和外围设备：应用于键盘、鼠标、打印机等设备的连接。
网络设备：在一些特定的网络设备中，用于信号传输和数据通信。
工业应用：用于机器的控制和数据采集设备中，确保稳固可靠的连接。
安装与维护建议
安装注意事项：
在安装前，请仔细查看产品说明书，确保选择正确的型号和引脚配置。
确保连接器和电路板上的焊接点清洁，以确保良好的电气接触。
维护建议：
定期检查连接器的接触点以防止氧化和腐蚀，保持良好的电气性能。
在不使用连接器时，采取适当的防护措施，避免环境因素对连接器的损害。
总结
Mini DIN 母头插板式连接器因其良好的插拔性能和高可靠性，成为各类电子设备中常用的连接解决方案。无论在音频、视频还是工业应用中，Mini DIN母头插板式连接器均提供了稳定可靠的连接，助力推动设备的高效运作。合理的安装和维护可以显著提升其使用寿命和连接性能。如果您有更具体的应用需求或问题，请联系技术员！
Product Name: Mini DIN Female Head Plug in Plate Connector
1. Materials
1-1. Shell: PBT UL94V0； Color: Black
1-2. Contact: phosphor bronze
1-3. Shell: Brass
2. Complete
2-1. Contact: Bright Tin Plating
2-2. Shell: Nickel plated
3. Electrical specifications:
3-1, rated current: 2A
3-2. Rated voltage: 12V
4. Environment
4-1.0 Operating temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Mini DIN female plug connector is a small and compact connector commonly used in electronic devices and electrical applications. When used in conjunction with male connectors, female plug-in connectors provide reliable electrical connections and are widely used in audio, video, data transmission, and various industrial equipment. The following is detailed information about Mini DIN female plug-in connectors.
Main features
1. Plug in design:
The female plug type connector is designed to be directly inserted into the circuit board or equipment casing, fixed and installed for easy connection inside or outside the equipment.
2. Multiple pin configurations:
The pin count of Mini DIN female connectors is generally available in various configurations such as 4-pin, 6-pin, 8-pin, etc. Users can choose the appropriate model according to their needs.
3. High reliability:
Made of high-quality materials, it usually has anti-interference and durability, adapts to different environmental conditions, and effectively reduces the failure rate.
4. Easy to install:
The installation process is simple, usually fixed on the circuit board by welding or insertion, and easy to replace during production or maintenance.
5. Compatibility:
The Mini DIN connector design has a high degree of standardization and is compatible with various devices and interconnect standards, providing a wide range of application flexibility.
application area
Mini DIN female plug connectors are widely used in the following fields:
Audio equipment: used to connect audio input and output ports, such as audio systems, amplifiers, and audio processors.
Video equipment: Used in certain video transmission systems, such as the connection between cameras and displays.
Computers and peripherals: Used for connecting devices such as keyboards, mice, printers, etc.
Network equipment: Used for signal transmission and data communication in certain specific network devices.
Industrial applications: used in machine control and data acquisition equipment to ensure stable and reliable connections.
Installation and maintenance recommendations
Installation precautions:
Before installation, please carefully review the product manual to ensure the correct model and pin configuration are selected.
Ensure that the solder joints on the connectors and circuit boards are clean to ensure good electrical contact.
Maintenance suggestion:
Regularly check the contact points of the connector to prevent oxidation and corrosion, and maintain good electrical performance.
Take appropriate protective measures when the connector is not in use to avoid damage to the connector from environmental factors.
summary
Mini DIN female plug-in connectors have become a commonly used connection solution in various electronic devices due to their excellent plug and play performance and high reliability. Whether in audio, video, or industrial applications, Mini DIN female plug connectors provide stable and reliable connections, helping to drive efficient device operation. Reasonable installation and maintenance can significantly improve its service life and connection performance. If you have more specific application requirements or questions, please contact the technician!
