品名：Mini DIN 母头面板安装式连接器
材料
1-1.外壳：PBT UL94V-0；颜色：黑色
1-2.触点：磷青铜
1-3.外壳：黄铜
1-4.弹簧：磷青铜
2.完成：
2-1.触点：镀银
底板：镍
2-2.外壳：镀镍
2-3.弹簧：镀银
3.电气规格：
3-1.额定电流：2A
3-2.额定电压：12V
品牌：科斯达开关KSDKG
产地：中国东莞

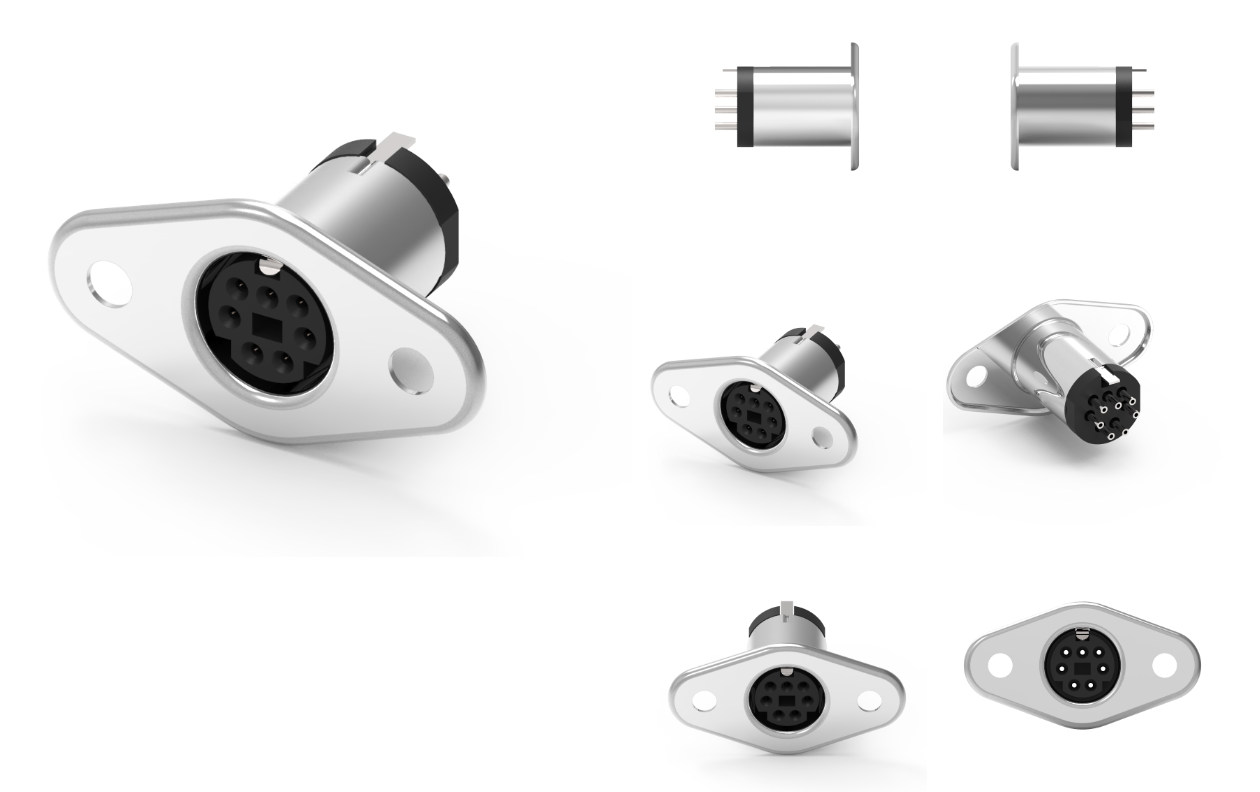

Mini DIN 母头面板安装式连接器是一种专用于面板安装的连接器，广泛应用于电子设备、音频设备、视频设备等领域。它结合了 Mini DIN 连接器的功能性与面板安装的便利性，具有紧凑设计和易于安装的特点。以下是关于 Mini DIN 母头面板安装式连接器的详细介绍。
特点
1.面板安装设计：
专为安装在设备的前面板或后面板设计，便于用户访问和连接，提升了用户体验。
2.多种引脚配置：
提供多种针脚选项（比如4针、6针、8针等），便于根据不同的应用需求选择合适的连接器。
3.优良的机械强度：
连接器设计确保其在面板上具有良好的固定性和抗拉力，能够承受较大的机械应力而不易松动。
4.良好的电气性能：
采用高质量材料，提供良好的电气接触和信号传输性能，适合高频和高带宽应用。
5.装配简单：
面板安装结构使得安装和拆卸都非常方便，与其他连接器相比，减少了对额外工具的需求。
应用领域
Mini DIN 母头面板安装式连接器广泛应用于以下领域：
音频设备：用于音频输入/输出接口，如乐器、专业音频设备等，确保信号的稳定性。
视频设备：适用于摄像机、监视器等视频设备，提供高质量的视频信号连接。
计算机与外部设备：在PC、工作站等设备的面板上，为外部设备提供方便的接口。
网络设备：用于网络设备的前面板，方便快速连接外部设备。
工业控制系统：在自动化或控制面板中提供可靠且易于访问的连接。
安装与维护建议
安装注意事项：
确保面板孔径与连接器尺寸匹配，以便于方便的固定和连接。
在安装过程中，确保连接器的方向正确，并将其牢固地拧紧，以确保稳定性。
维护建议：
定期检查连接器的连接状态，确保未产生松动或接触不良的问题。
对于长期不使用的连接器，建议用防尘盖进行保护，避免灰尘和杂物进入。
总结
Mini DIN 母头面板安装式连接器凭借其便捷的访问性和可靠的性能，广泛应用于各类电子和电气设备中。合理的设计和安装，使其适合多种高频信号传输的场合，可以有效提升设备的整体性能和用户体验。通过保持良好的维护，可以确保连接器在长期使用中的稳定性和可靠性。如果您有特定的技术需求或其他疑问，欢迎联系技术员！
Product Name: Mini DIN Female Head Panel Mounted Connector
Material Science
1-1. Shell: PBT UL94V-0； Color: Black
1-2. Contact: phosphor bronze
1-3. Shell: Brass
1-4. Spring: phosphor bronze
2. Complete:
2-1. Contact: Silver plated
Bottom plate: Nickel
2-2. Shell: Nickel plated
2-3. Spring: Silver plated
3. Electrical specifications:
3-1. Rated current: 2A
3-2. Rated voltage: 12V
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Mini DIN female head panel mounted connector is a type of connector specifically designed for panel installation, widely used in electronic devices, audio devices, video devices, and other fields. It combines the functionality of Mini DIN connectors with the convenience of panel installation, featuring a compact design and easy installation. The following is a detailed introduction to Mini DIN female head panel mounted connectors.
characteristic
1. Panel installation design:
Specially designed for installation on the front or back panel of the device, making it easy for users to access and connect, enhancing the user experience.
2. Multiple pin configurations:
Provide multiple pin options (such as 4-pin, 6-pin, 8-pin, etc.) to facilitate the selection of suitable connectors according to different application requirements.
3. Excellent mechanical strength:
The connector design ensures good fixation and tensile strength on the panel, capable of withstanding large mechanical stresses without easily loosening.
4. Good electrical performance:
Using high-quality materials, providing excellent electrical contact and signal transmission performance, suitable for high-frequency and high bandwidth applications.
5. Simple assembly:
The panel installation structure makes installation and disassembly very convenient, reducing the need for additional tools compared to other connectors.
application area
Mini DIN female head panel mounted connectors are widely used in the following fields:
Audio equipment: used for audio input/output interfaces, such as musical instruments, professional audio equipment, etc., to ensure signal stability.
Video equipment: Suitable for video devices such as cameras and monitors, providing high-quality video signal connections.
Computers and External Devices: Provide convenient interfaces for external devices on the panels of PCs, workstations, and other devices.
Network devices: Used for the front panel of network devices, facilitating quick and easy connection to external devices.
Industrial control systems: Provide reliable and easily accessible connections in automation or control panels.
Installation and maintenance recommendations
Installation precautions:
Ensure that the panel aperture matches the connector size for easy fixation and connection.
During installation, ensure that the connector is oriented correctly and securely tightened to ensure stability.
Maintenance suggestion:
Regularly check the connection status of the connector to ensure that there are no loose or poor contact issues.
For connectors that are not used for a long time, it is recommended to protect them with dust covers to prevent dust and debris from entering.
summary
Mini DIN female head panel mounted connectors are widely used in various electronic and electrical equipment due to their convenient accessibility and reliable performance. Reasonable design and installation can make it suitable for various high-frequency signal transmission scenarios, effectively improving the overall performance and user experience of the equipment. By maintaining good maintenance, the stability and reliability of the connector can be ensured during long-term use. If you have specific technical requirements or other questions, please feel free to contact a technician!
