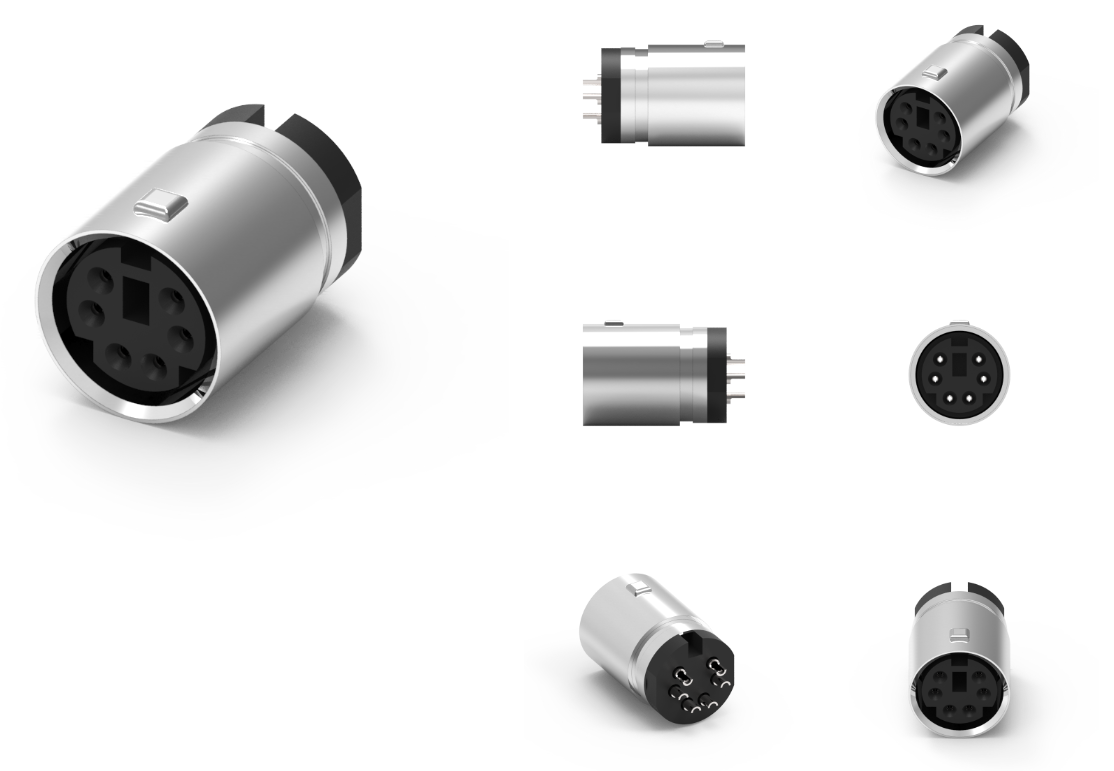

品名：Mini DIN 母头线端成型式连接器
1.材料
1-1.外壳：热塑性UL94V-0；颜色：黑色
1-2.接触磷青铜
1-3.外壳：黄铜
1-4.弹簧磷青铜
2.完成
底板：镍
码头面积：MATTE TIN 50u”
2-1.外壳：镍60u”
2-2.弹簧：最小5u“银色
3.电气规格
3-1.额定电流：2A
3-1.额定电压：12V
4.环境：
4-1.0工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
Mini DIN 母头线端成型式连接器是一种专用的连接器，通常用于实现电气连接，特别适合需要焊接固定的场合。它的设计和构造使其在多种电子应用中广泛使用，特别是在音频、视频和数据传输领域。以下是有关 Mini DIN 母头线端成型式连接器的详细介绍。
特点
1.结构紧凑：
Mini DIN 连接器的体积较小，适合于空间有限的应用，能够在设备内部实现高密度装配。
2.线端成型设计：
连接器的线端成型使得线缆通过连接器直接焊接，提供了牢固的机械和电气连接，无需其他的连接器件。
3.多种针脚配置：
Mini DIN 连接器通常有多种针脚配置（如4针、6针、8针等），可以根据需求选择适合的引脚数量，以满足特定的信号传输需求。
4.优良的电气性能：
采用高导电性材料制造，能够有效传输电信号，减少信号损失。
5.易于安装与维护：
线端成型设计使得安装过程直观简单，焊接完成后，连接可靠且耐用。
应用领域
Mini DIN 母头线端成型式连接器适用于多种应用场合，包括：
音频设备：
常见于音频输入输出接口，如混音器、音响设备等。
视频设备：
可用于摄像机、监视器等视频传输设备，确保信号传输的稳定性。
计算机外围设备：
在老式计算机和外部周边设备（如键盘、鼠标等）中，Mini DIN 连接器被广泛使用。
仪器仪表：
适合用于各类测试和测量设备，提供稳定的信号连接。
工业设备：
在工业自动化和控制系统中，提供可靠的连接解决方案。
安装与使用建议
焊接注意事项：
焊接时，请确保连接器和线缆端子干净，以避免影响焊接质量。
使用适当的焊接温度和时间，以确保焊接牢固且不损坏连接器材料。
维护建议：
定期检查连接器的物理状态，确保没有松动或磨损，尤其是在频繁插拔或振动的应用环境中。
清洁连接器时，使用干燥的软布，避免使用腐蚀性强的化学清洁剂。
总结
Mini DIN 母头线端成型式连接器是一种可靠且方便的连接解决方案，适用于多种电子设备和应用场合。其紧凑设计、良好的电气性能和简单的安装方式使其在音频、视频、计算机以及工业设备中得到广泛应用。通过合理的安装与维护，可以确保连接器的长期稳定运行。如果您有特定的技术需求或其他疑问，欢迎联系技术员！
Product Name: Mini DIN Female End Forming Connector
1. Materials
1-1. Shell: Thermoplastic UL94V-0; Color: Black
1-2. Contact with phosphor bronze
1-3. Shell: Brass
1-4. Spring phosphor bronze
2. Complete
Bottom plate: Nickel
Dock area: MATTE TIN 50u”
2-1. Shell: Nickel 60u "
2-2. Spring: minimum 5u "silver
3. Electrical specifications
3-1. Rated current: 2A
3-1. Rated voltage: 12V
4. Environment:
4-1.0 Operating temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Mini DIN female end molded connector is a specialized connector commonly used for electrical connections, particularly suitable for situations that require soldering and fixation. Its design and construction make it widely used in various electronic applications, especially in the fields of audio, video, and data transmission. The following is a detailed introduction to Mini DIN female end molded connectors.
characteristic
1. Compact structure:
The Mini DIN connector has a small volume and is suitable for applications with limited space, enabling high-density assembly inside the device.
2. End forming design:
The wire end forming of the connector allows the cable to be directly soldered through the connector, providing a strong mechanical and electrical connection without the need for other connecting devices.
3. Multiple pin configurations:
Mini DIN connectors typically have multiple pin configurations (such as 4-pin, 6-pin, 8-pin, etc.), and the appropriate number of pins can be selected according to specific signal transmission requirements.
4. Excellent electrical performance:
Made of highly conductive materials, it can effectively transmit electrical signals and reduce signal loss.
5. Easy to install and maintain:
The wire end forming design makes the installation process intuitive and simple, and after welding is completed, the connection is reliable and durable.
application area
Mini DIN female end molded connectors are suitable for various applications, including:
Audio equipment:
Commonly found in audio input and output interfaces, such as mixers, audio equipment, etc.
Video equipment:
Can be used for video transmission devices such as cameras and monitors to ensure the stability of signal transmission.
Computer peripherals:
Mini DIN connectors are widely used in older computers and external peripherals such as keyboards, mice, etc.
Instruments and Apparatuses:
Suitable for various testing and measuring equipment, providing stable signal connections.
Industrial equipment:
Provide reliable connectivity solutions in industrial automation and control systems.
Installation and usage suggestions
Welding precautions:
When welding, please ensure that the connectors and cable terminals are clean to avoid affecting the welding quality.
Use appropriate welding temperature and time to ensure that the welding is firm and does not damage the connector material.
Maintenance suggestion:
Regularly check the physical condition of the connector to ensure that it is not loose or worn, especially in applications with frequent plugging or vibration.
When cleaning the connector, use a dry soft cloth and avoid using highly corrosive chemical cleaners.
summary
The Mini DIN female end molded connector is a reliable and convenient connection solution suitable for a variety of electronic devices and applications. Its compact design, excellent electrical performance, and simple installation method make it widely used in audio, video, computer, and industrial equipment. By proper installation and maintenance, the long-term stable operation of the connector can be ensured. If you have specific technical requirements or other questions, please feel free to contact a technician!
