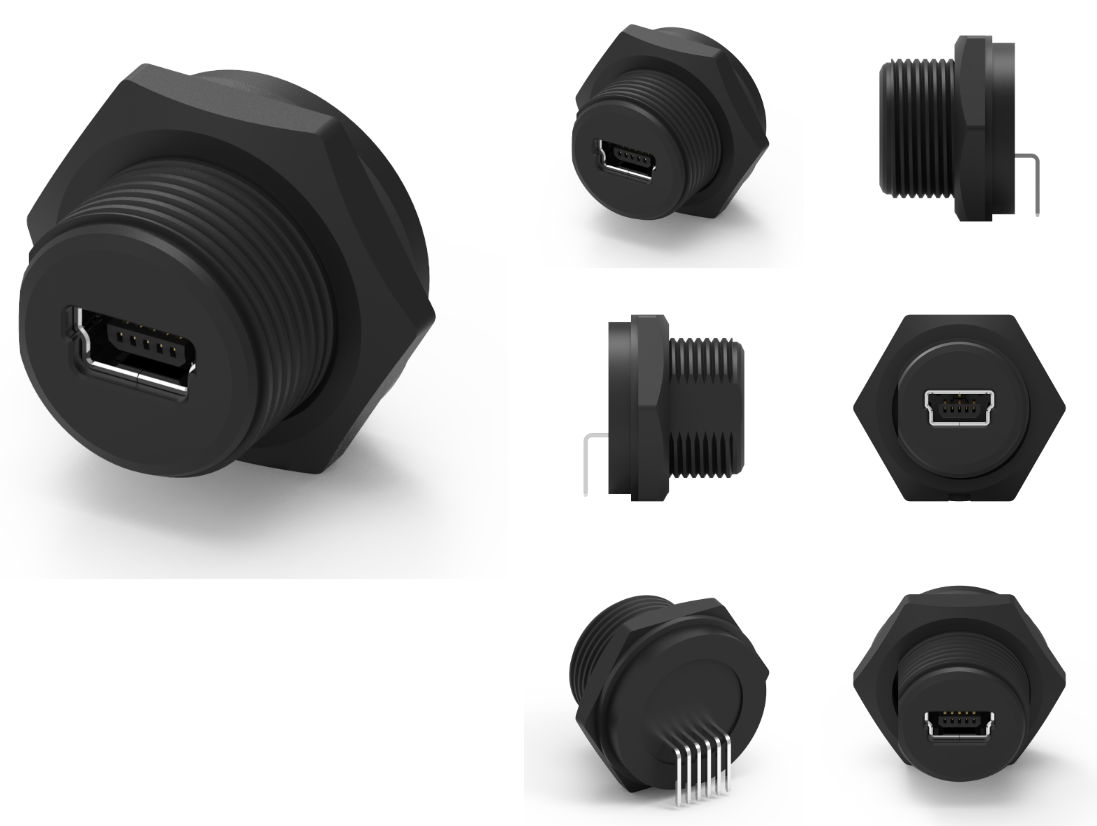

品名：Mini USB 母头5PIN防水连接器
1.材料：
1-1.外壳：PBTUL94V0；颜色：黑色
1-2.触点：磷青铜
1-3.外壳：黄铜
1-4.圆形：SUS 301
1-5.O型圈：硅胶；颜色：黑色
1-6编号：PA66
2.完成：
2-1.触点：金色闪光
2-3.外壳：镀镍
2-3.外壳：镀镍
3.电气规格：
3-1.额定电流：1.5A
3-2.额定电压：125V
3-3.防水等级：IPX7
4.环境：
4-1.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
Mini USB 母头 5PIN 防水连接器概述
Mini USB 母头 5PIN 防水连接器是一种设计用于数据传输和电力供应的连接器，具有防水特性，适合在潮湿或恶劣环境中使用。该连接器广泛应用于各类电子设备，尤其是需要良好密封和防护的设备中。
主要特点
1.防水设计：
防护等级：通常达到 IP67 或 IP68 等级，有效防止水和灰尘进入连接器，适合户外和工业环境。
密封结构：配有防水密封圈或防水膜，确保在插入后保持良好的密封性，防止任何液体或颗粒物影响连接性。
2.小巧与高效：
紧凑设计：Mini USB 尺寸小，适合各种便携设备，节省空间。
兼容性：支持 USB 2.0 标准，兼容范围广，适用于多种电子设备。
3.稳定性与耐用性：
高质量材料：使用优质塑料和金属材料，耐磨耐腐蚀，确保长时间使用而不影响性能。
耐插拔设计：设计上考虑到多次插拔的使用场景，具备较好的耐久性。
4.安装便利：
简单连接：用户友好的设计，安装和拆卸均方便快捷，减少了潜在的连接问题。
应用领域
1.消费电子：智能手机、数码相机、音频设备等。
2.工业自动化：用于传感器、控制器和工控机等设备的数据和电源连接。
3.汽车电子：用于车载音响、导航系统或其他与车辆电气系统相关的设备。
4.医疗设备：医疗仪器和设备中，由于其防水特性，适合用于需要清洗或接触液体的环境。
使用注意事项
1.保持密封性：每次使用前，检查密封圈是否完好，连接后确保连接器完全插入以维持防水性能。
2.遵循额定参数：确保在规定的电流和电压范围内使用，避免对设备造成损坏。
3.清洁维护：定期清洁连接器，防止污垢和残留物影响连接性能。
4.避免非正常使用：切勿用力过猛插拔连接器，避免造成物理损坏。
总结
Mini USB 母头 5PIN 防水连接器凭借其防水性能、良好的兼容性和耐用性，成为在各类电子设备中重要的连接解决方案。若您有兴趣或需要更多信息，欢迎联系技术员！
Product Name: Mini USB Female 5PIN Waterproof Connector
1. Materials:
1-1. Shell: PBTUL94V0； Color: Black
1-2. Contact: phosphor bronze
1-3. Shell: Brass
1-4. Circular: SUS 301
1-5. O-ring: Silicone; Color: Black
1-6 Number: PA66
2. Complete:
2-1. Contact: Gold Flash
2-3. Shell: Nickel plated
2-3. Shell: Nickel plated
3. Electrical specifications:
3-1. Rated current: 1.5A
3-2. Rated voltage: 125V
3-3. Waterproof grade: IPX7
4. Environment:
4-1. Working temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Overview of Mini USB Female 5PIN Waterproof Connector
Mini USB female 5PIN waterproof connector is a connector designed for data transmission and power supply, with waterproof characteristics, suitable for use in humid or harsh environments. This connector is widely used in various electronic devices, especially those that require good sealing and protection.
main features
1. Waterproof design:
Protection level: usually up to IP67 or IP68, effectively preventing water and dust from entering the connector, suitable for outdoor and industrial environments.
Sealing structure: equipped with waterproof sealing rings or waterproof membranes to ensure good sealing after insertion, preventing any liquids or particles from affecting connectivity.
2. Compact and efficient:
Compact design: Mini USB has a small size, suitable for various portable devices, saving space.
Compatibility: Supports USB 2.0 standard, has a wide range of compatibility, and is suitable for various electronic devices.
3. Stability and durability:
High quality materials: using high-quality plastic and metal materials, wear-resistant and corrosion-resistant, ensuring long-term use without affecting performance.
Durable plug and unplug design: The design takes into account multiple plug and unplug usage scenarios and has good durability.
4. Easy installation:
Simple Connection: User friendly design, easy and fast installation and removal, reducing potential connection issues.
application area
1. Consumer electronics: smartphones, digital cameras, audio devices, etc.
2. Industrial automation: used for data and power connections of devices such as sensors, controllers, and industrial computers.
3. Automotive electronics: Used for in car audio systems, navigation systems, or other equipment related to vehicle electrical systems.
4. Medical equipment: Due to its waterproof properties, medical instruments and equipment are suitable for use in environments that require cleaning or contact with liquids.
Precautions for use
1. Maintain sealing: Before each use, check if the sealing ring is intact and ensure that the connector is fully inserted after connection to maintain waterproof performance.
2. Follow the rated parameters: Ensure use within the specified current and voltage range to avoid damage to the equipment.
3. Cleaning and maintenance: Regularly clean the connector to prevent dirt and residue from affecting the connection performance.
4. Avoid abnormal use: Do not forcefully plug or unplug the connector to avoid physical damage.
summary
The Mini USB female 5PIN waterproof connector has become an important connection solution in various electronic devices due to its waterproof performance, good compatibility, and durability. If you are interested or need more information, please feel free to contact the technician!
