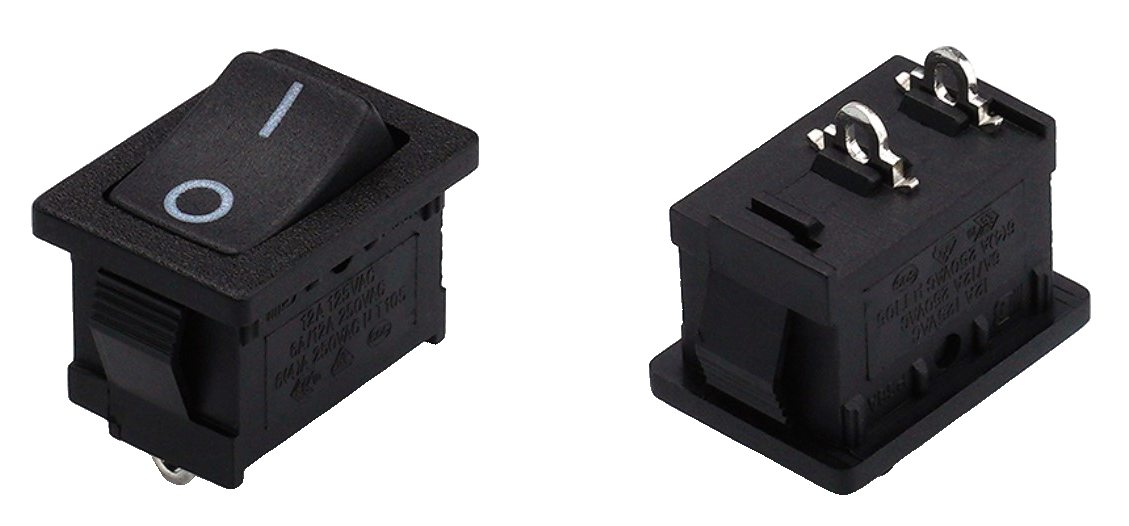

KSD-PS8A-2-B1B3-1S-02

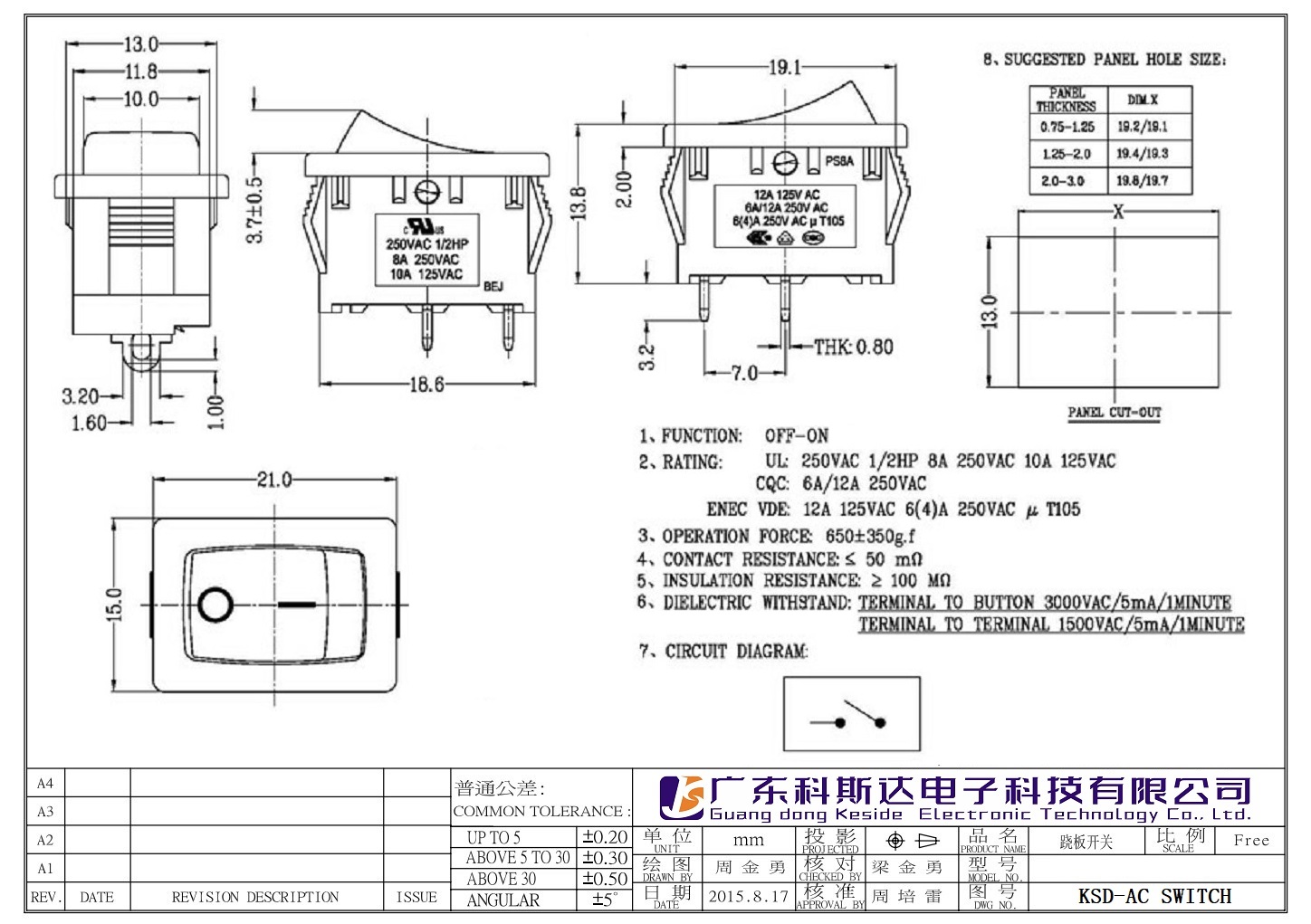

产品图纸（PDF）：KSD-PS8A-2-B1B3-1S-02 下载

• 产品特性

• 应用范围

船型开关 技术参数
1、功能：开-关
2、额定值：UL:250VAC 1/2HP 8A 250VAC 10A 125VAC
cQc:6A/12A 250VAC
ENEC VDE:12A125VAC 6(4)A 250VAC p. T105
3、操作力：650士350g.f
4、接触电阻：≤50 mh5、绝缘电阻：≥100 Mn
6、DIEL.ECTRIC：端子到按钮 3000VAC/5mA/1MINUTE
TERMINALTOTERMINAL1500VAC/5mA/1MINUTE


ROCKER SWITCH TECHNICAL PARAMETERS
1、FUNCTION: oFF-ON
2、RATING:UL:250VAC 1/2HP 8A 250VAC 10A 125VAC
cQc:6A/12A 250VAC
ENEC VDE:12A125VAC 6(4)A 250VAC p. T105
3、OPERATION FORCE:650士350g.f
4、CONTACT RESISTANCE:≤50 mh5、INSUI.ATION RESISTANCE:≥100 Mn
6、DIEL.ECTRIC WITHSTAND:TERMINAL TO BUTTON 3000VAC/5mA/1MINUTE
TERMINALTOTERMINAL1500VAC/5mA/1MINUTE
