船型开关 技术参数
1、功能：关-开
2、额定值：U10A 125VAC T85
质量控制：6/12A 250VAC T105
ENEC VDE6(4)A250VAC T105/55
TUV/C:8/12BA 250VAC T105
3、操作力：650士350g.f
4、接触电阻：≤50Mn5、绝缘电阻：≥100Mn
6、绝缘耐压：端子到按钮_3000VAC/5mA/1MINUTE
端子 端子1500VAC/5mA/1MINUTE

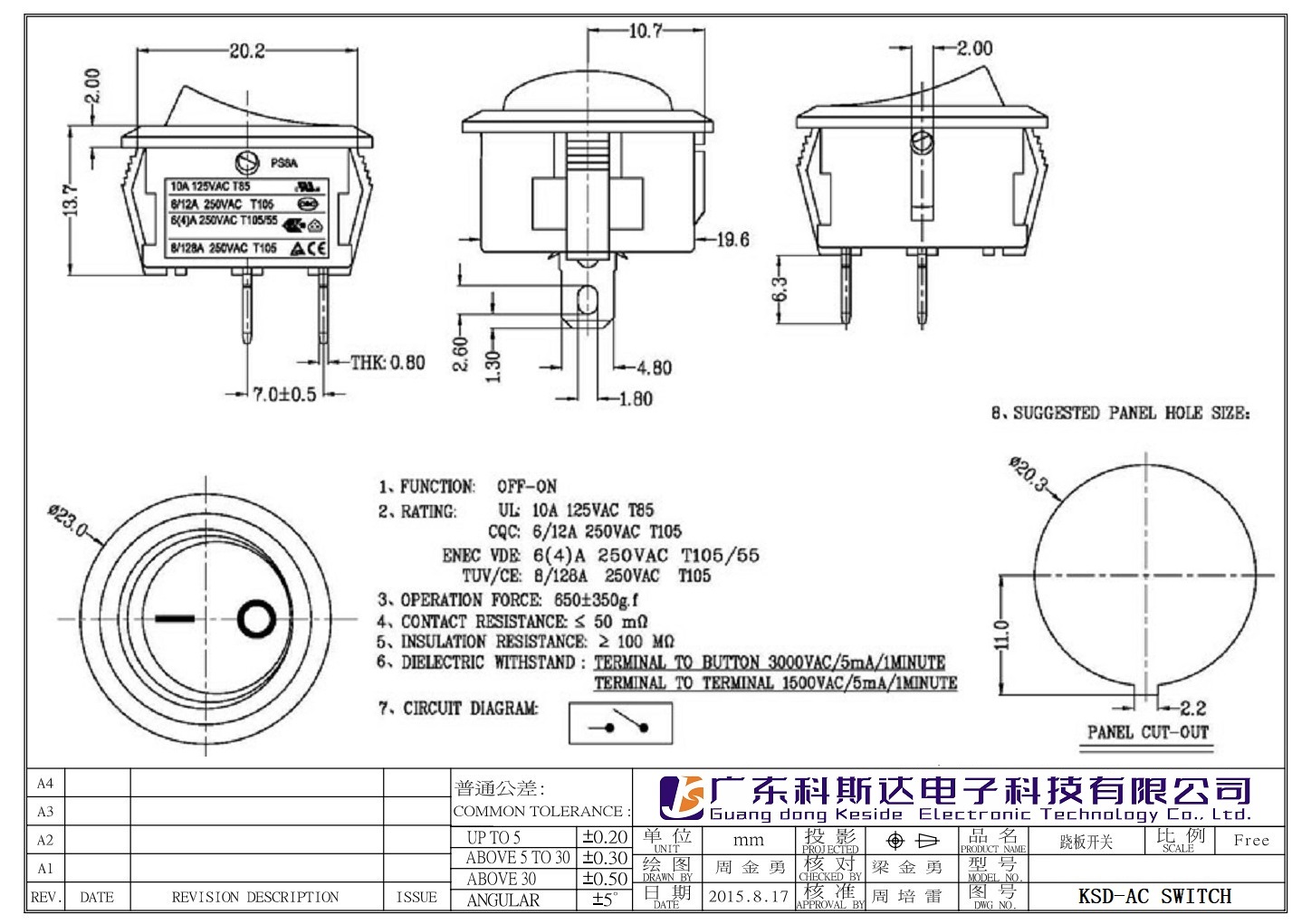

ROCKER SWITCH TECHNICAL PARAMETERS
1、FUNCTION: OFF-ON
2、RATING:U10A 125VAC T85
cQc: 6/12A 250VAC T105
ENEC VDE6(4)A250VAC T105/55
TUV/C:8/12BA 250VAC T105
3、OPERATION FORCE:650士350g.f
4、CONTACT RESISTANCE: ≤50mn5、INSUL.ATION RESISTANCE:≥100 Mn
6、DIELECTRIC WITHSTAND:TERMINAL TO BUTTON _3000VAC/5mA/1MINUTE
TERMINALTO TERMINAL1500VAC/5mA/1MINUTE
