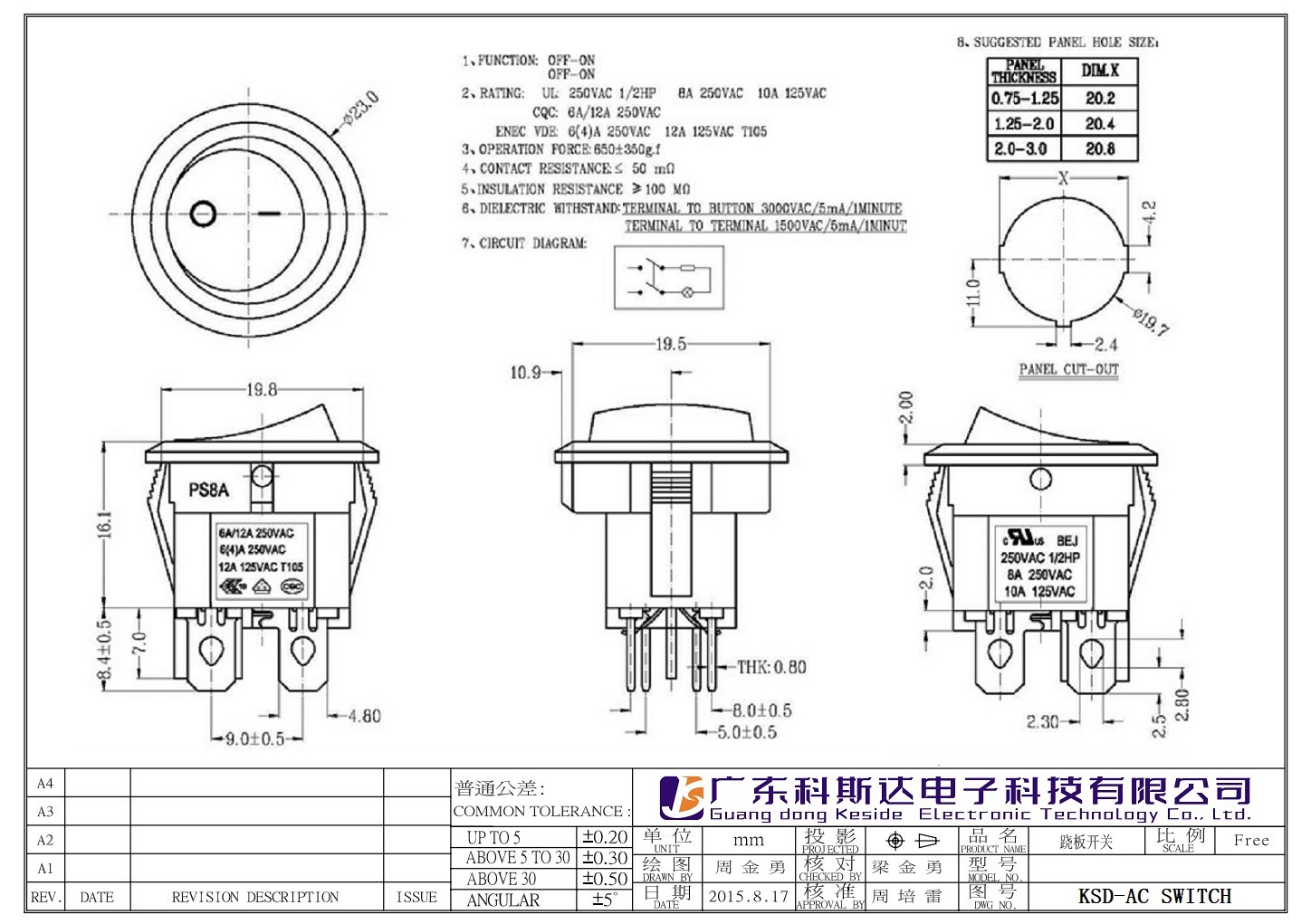

船型开关 技术参数
1、PUNCTION：关-开 关-开
2、RATlNG：
UL:10A 125VAC
质量控制：8A/12A 250VAC
ENEC VDE6(4)A250VAC 比 T105
3、操作力：650士350g.f
4、接触电阻≤50mn5、绝缘电阻：≥100 MQ6、介电负载：
端子至按钮 3000VAC/5mA/1MINUTETERMINALTOTERNINAL1500VAC/5mA/1MINUTE

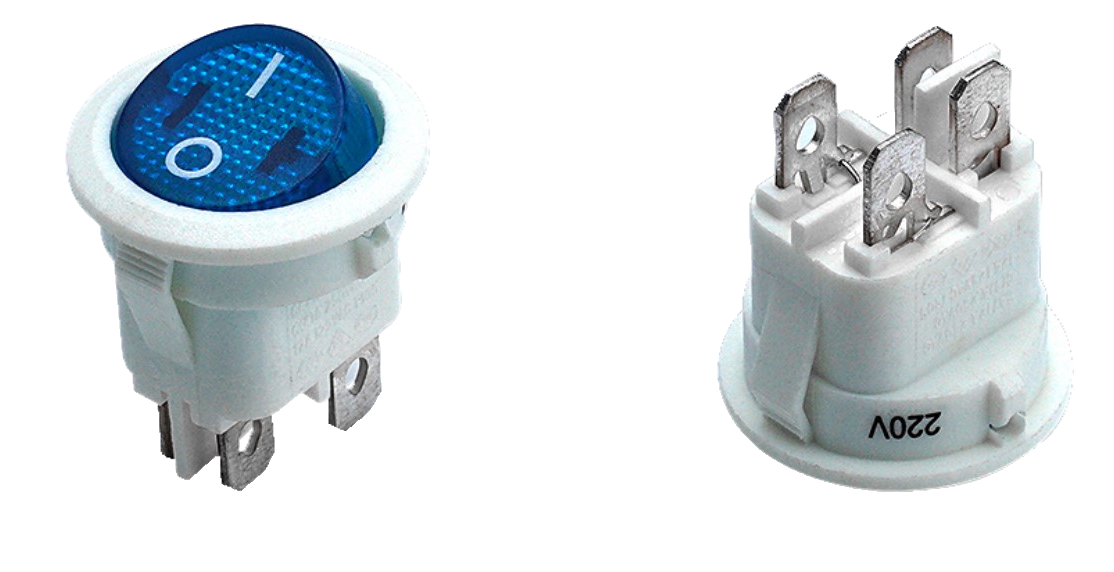

ROCKER SWITCH TECHNICAL PARAMETERS
1、PUNCTION: OFF-ON
OFF-ON
2、RATlNG:
UL:10A 125VAC
cQc: 8A/12A 250VAC
ENEC VDE6(4)A250VAC 比 T105
3、OPERATION FORCE:650士350g.f
4、CONTACT RESISTANCE ≤50mn5、INSULATION RESISTANCE: ≥100 MQ6、DIELECTRIC WTTHSTAND:
TERMINAL TO BUTTON 3000VAC/5mA/1MINUTETERMINALTOTERNINAL1500VAC/5mA/1MINUTE
