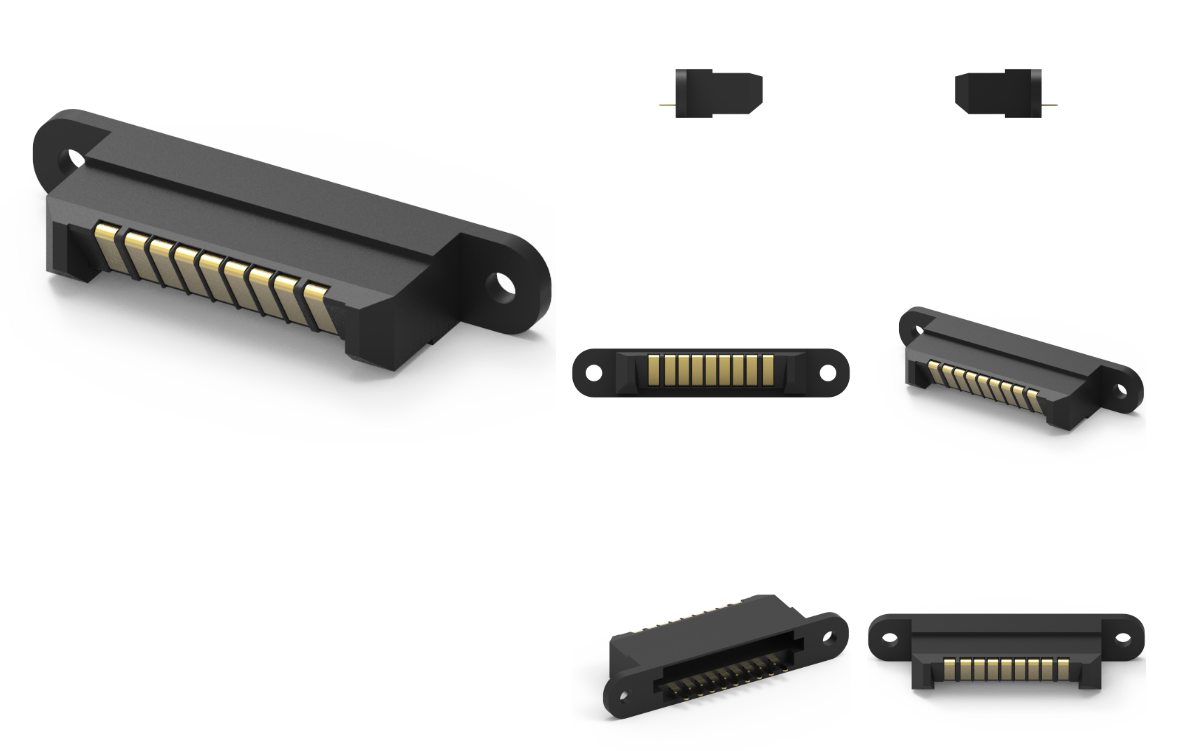

品名：Pogo Pin 公头9PIN 防水连接器
1.材料：
1-1.外壳：PBT UL94V0；颜色：黑色
1-2.触点：黄铜
2.完成：
2-1.触点：最小15微英寸镀金
底板：镍
3.电气规格：
3-1.额定电流：3A
3-2.额定电压：12V
3-3.防水等级：IP66
4.环境：
4-1.工作温度：-20℃~105℃
品牌：科斯达开关KSDKG
产地：中国东莞
Pogo Pin 公头 9PIN 防水连接器概述
Pogo Pin 公头 9PIN 防水连接器是一种采用弹性接触技术（Pogo Pin）设计的连接器，具备防水特性，适用于多种应用，包括消费电子、工业设备和医疗器械等。这种连接器能够提供高可靠性的电气连接，尤其适合需要频繁插拔和在恶劣环境中工作的设备。
主要特点
1.防水设计：
高防护等级：通常具有 IP67 或更高的防护等级，可以在潮湿或多水的环境中使用，防止水和灰尘的侵入。
密封结构：使用防水密封圈、 O 型圈等确保连接器连接后的密封性能，保持良好的密封效果。
2.Pogo Pin 技术：
弹性接触：Pogo Pin 采用弹簧结构，提供自适应的接触力，确保在不同的插入深度和方向上都能保持良好的电气接触。
高耐用性：耐插拔次数较高，适合频繁使用且降低磨损的风险。
3.9PIN 配置：
设计灵活性：9PIN 的设计允许更高的数据传输速率和更多的功能扩展，适合多种应用需求。
信号稳定性：使用合理的排列和金属材料，能够有效减少信号损失和电磁干扰。
4.紧凑高效：
空间节省：小型化的设计使得其在各种设备中的集成更为方便，适合空间有限的应用。
易于安装：设计使得连接器的插拔非常方便，用户可以快速连接和断开。
应用领域
1.消费电子：智能手机、平板电脑、可穿戴设备等。
2.工业设备：传感器、控制模块、机器人等自动化设备。
3.医疗设备：医疗监测仪器、便携式医疗设备等，对防水性要求高的场合。
4.汽车电子：在车载系统、导航仪、音响设备中应用。
使用注意事项
1.密封性检查：每次使用前检查密封圈的完好性，确保连接器能够正常防水。
2.电气规格：遵循连接器的额定电流和电压，避免超负荷使用。
3.维护清洁：保持连接器的干燥与清洁，避免污垢影响电接触的性能。
4.避免过度冲击：在安装和拆卸时要小心，避免对连接器造成机械冲击。
总结
Pogo Pin 公头 9PIN 防水连接器凭借其优越的防水性能、弹性接触技术和高可靠性，适用于多种复杂和严苛的应用场合。如果您需要更多详细信息或有其他问题，欢迎联系技术员！
Product Name: Pogo Pin Male 9-PIN Waterproof Connector
1. Materials:
1-1. Shell: PBT UL94V0； Color: Black
1-2. Contact: Brass
2. Complete:
2-1. Contact: Minimum 15 microinches gold-plated
Bottom plate: Nickel
3. Electrical specifications:
3-1. Rated current: 3A
3-2. Rated voltage: 12V
3-3. Waterproof grade: IP66
4. Environment:
4-1. Working temperature:- 20℃~105℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Overview of Pogo Pin Male 9-PIN Waterproof Connector
The Pogo Pin male 9-pin waterproof connector is a connector designed using Pogo Pin technology, which has waterproof properties and is suitable for various applications, including consumer electronics, industrial equipment, and medical devices. This type of connector can provide high reliability electrical connections, especially suitable for devices that require frequent plugging and working in harsh environments.
main features
1. Waterproof design:
High protection level: typically with an IP67 or higher protection level, it can be used in damp or water rich environments to prevent the intrusion of water and dust.
Sealing structure: using waterproof sealing rings O-rings and other components ensure the sealing performance of the connector after connection, maintaining a good sealing effect.
2. Pogo Pin technology:
Elastic contact: Pogo Pin adopts a spring structure to provide adaptive contact force, ensuring good electrical contact at different insertion depths and directions.
High durability: resistant to multiple insertions and removals, suitable for frequent use and reducing the risk of wear and tear.
3.9PIN configuration:
Design flexibility: The 9PIN design allows for higher data transfer rates and more functional extensions, making it suitable for various application needs.
Signal stability: Using reasonable arrangement and metal materials can effectively reduce signal loss and electromagnetic interference.
4. Compact and efficient:
Space saving: The miniaturized design makes integration in various devices more convenient and suitable for applications with limited space.
Easy to install: The design makes the connector easy to plug and unplug, allowing users to quickly connect and disconnect.
application area
1. Consumer electronics: smartphones, tablets, wearable devices, etc.
2. Industrial equipment: automation equipment such as sensors, control modules, robots, etc.
3. Medical equipment: medical monitoring instruments, portable medical devices, etc., which require high waterproof performance.
4. Automotive electronics: applied in car systems, navigation systems, and audio equipment.
Precautions for use
1. Sealing inspection: Check the integrity of the sealing ring before each use to ensure that the connector can be waterproofed normally.
2. Electrical specifications: Follow the rated current and voltage of the connector to avoid overloading.
3. Maintain cleanliness: Keep the connector dry and clean to avoid dirt affecting the performance of electrical contact.
4. Avoid excessive impact: Be careful during installation and disassembly to avoid mechanical impact on the connector.
summary
The Pogo Pin male 9-pin waterproof connector is suitable for a variety of complex and demanding applications due to its superior waterproof performance, elastic contact technology, and high reliability. If you need more detailed information or have any other questions, please feel free to contact the technician!
