KSD-PD-04M2-05

KSD-PD-04M2-05

  • 产品特性
  • 应用范围

图纸下载 样品申请

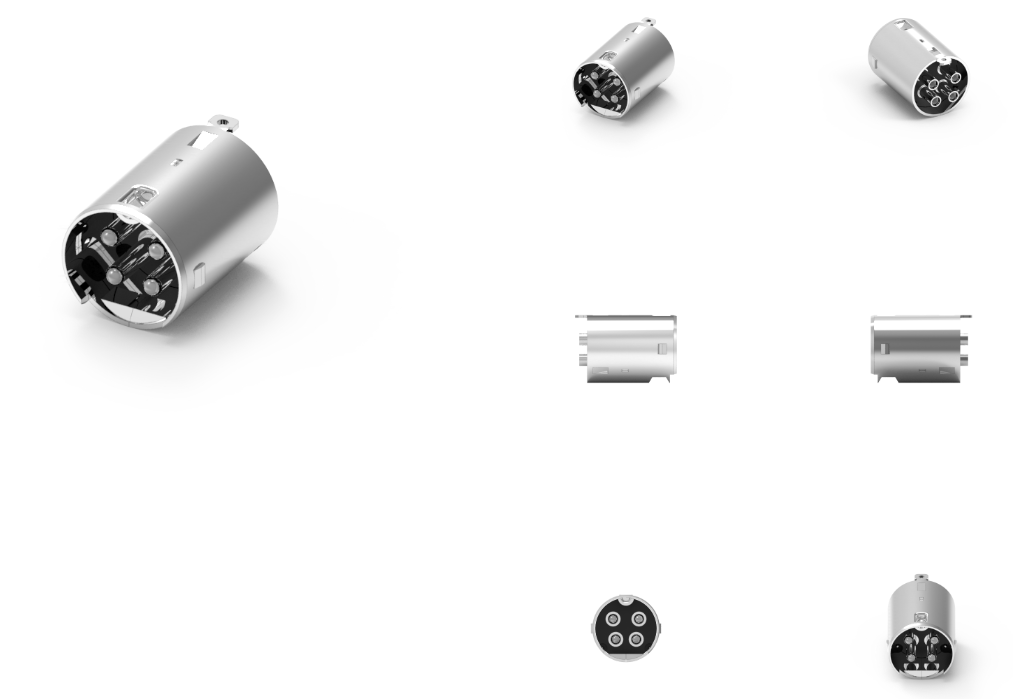

品名：Power DIN 公头线端成型式连接器
1.材料
1-1.外壳：PBT UL94V0；颜色：黑色
1-2.触点：黄铜
1-3.外壳：黄铜
2.完成：
2-1.触点：最小镀银50微英寸
底板：镍
2-2.外壳：整体镀镍50u“
3.电气规格：
3-1.额定电流：7.5A
3-2.额定电压：25V
4.环境：
4-1.0工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


Power DIN 公头线端成型式连接器是一种专门设计用于电源和信号连接的连接器，通常用于提供设备间的电力供应和信号传输。以下是关于 Power DIN 公头线端成型式连接器的详细介绍。

特点
1.线端成型设计：
该连接器的线端成型结构使焊接固定更加简便，提供了更为牢固和可靠的连接，适合在紧凑空间中使用。

2.多种针脚配置：
Power DIN 连接器通常提供多种引脚数量（如3针、5针、7针等），可根据具体应用选择合适的针脚配置，以满足不同电源和信号传输需求。

3.高功率处理能力：
设计上可以承受较高的电流，适用于需要大功率供电的设备，确保电气性能的稳定性。

4.优质材料：
通常采用高导电性金属及绝缘材料制造，确保连接的安全性和耐用性。

5.坚固耐用：
连接器的构造设计使其具备较强的抗压、抗震性能，适合工业应用以及恶劣环境下使用。

应用领域

Power DIN 公头线端成型式连接器被广泛应用于以下领域：

音频设备：
常用于各类音频设备的供电和信号传输，如音响系统、混音器等。

医疗设备：
适用于需进行电力供给和数据传输的医疗仪器，确保设备的安全运行。

灯光控制系统：
在舞台灯光、灯具控制等系统中作为电源连接器使用。

工业自动化：
用于工业设备和控制系统中的电源连接，提供可靠的电力支持。

通讯设备：
适用于通信基站、路由器等设备的电源和信号连接。

安装与维护建议

焊接注意事项：
确保连接器和线缆的端子处于干燥且清洁状态，以避免影响焊接效果。

使用适当的焊接设备和材料，以确保焊点牢固且电气良好。

定期检查：
定期检查连接器的物理状态，注意是否有磨损、松动或腐蚀现象，保持连接的可靠性。

安装环境：
避免在极端温度或潮湿环境中长时间使用，可根据需要选择带有防水功能的连接器类型。

总结
Power DIN 公头线端成型式连接器是一种高效、可靠且适用于多种应用场景的连接器，广泛应用于音频设备、医疗设备、工业自动化等领域。通过正确的安装与维护，能够确保其在各种环境下稳定工作，提供必要的电源和信号传输功能。如果您有特定的技术需求或其他疑问，欢迎联系技术员！



Product Name: Power DIN Male Wire End Forming Connector
1. Materials
1-1. Shell: PBT UL94V0； Color: Black
1-2. Contact: Brass
1-3. Shell: Brass
2. Complete:
2-1. Contact: Minimum silver plated 50 microinches
Bottom plate: Nickel
2-2. Shell: Overall nickel plated 50u“
3. Electrical specifications:
3-1. Rated current: 7.5A
3-2. Rated voltage: 25V
4. Environment:
4-1.0 Operating temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


The Power DIN male end molded connector is a connector specifically designed for power and signal connections, typically used to provide power supply and signal transmission between devices. The following is a detailed introduction to the Power DIN male end molded connector.

characteristic
1. End forming design:
The wire end forming structure of this connector makes welding and fixing easier, providing a more secure and reliable connection, suitable for use in compact spaces.

2. Multiple pin configurations:
Power DIN connectors typically offer multiple pin numbers (such as 3-pin, 5-pin, 7-pin, etc.), and the appropriate pin configuration can be selected according to specific applications to meet different power and signal transmission requirements.

3. High power processing capability:
Designed to withstand high currents, it is suitable for equipment that requires high-power power supply, ensuring the stability of electrical performance.

4. High quality materials:
It is usually made of highly conductive metals and insulating materials to ensure the safety and durability of the connection.

5. Durable and sturdy:
The structural design of the connector endows it with strong compressive and seismic performance, making it suitable for industrial applications and use in harsh environments.

application area

Power DIN male end molded connectors are widely used in the following fields:
Audio equipment:
Commonly used for power supply and signal transmission of various audio devices, such as sound systems, mixers, etc.

Medical equipment:
Suitable for medical instruments that require power supply and data transmission, ensuring the safe operation of the equipment.

Lighting control system:
Used as a power connector in stage lighting, lighting control and other systems.

Industrial automation:
Used for power connection in industrial equipment and control systems, providing reliable power support.

Communication equipment:
Suitable for power and signal connections of communication base stations, routers, and other equipment.

Installation and maintenance recommendations

Welding precautions:

Ensure that the terminals of connectors and cables are dry and clean to avoid affecting the soldering effect.

Use appropriate welding equipment and materials to ensure that the welding points are firm and in good electrical condition.

Regular inspection:
Regularly check the physical condition of the connector, paying attention to whether there is wear, looseness, or corrosion, and maintain the reliability of the connection.

Installation environment:
Avoid prolonged use in extreme temperature or humid environments, and choose connector types with waterproof function as needed.

summary
The Power DIN male end molded connector is an efficient, reliable, and versatile connector suitable for various application scenarios, widely used in audio equipment, medical equipment, industrial automation, and other fields. By proper installation and maintenance, it can ensure stable operation in various environments and provide necessary power and signal transmission functions. If you have specific technical requirements or other questions, please feel free to contact a technician!
