KSD-PD-03F3-01-01

KSD-PD-03F3-01-01

  • 产品特性
  • 应用范围

图纸下载 样品申请

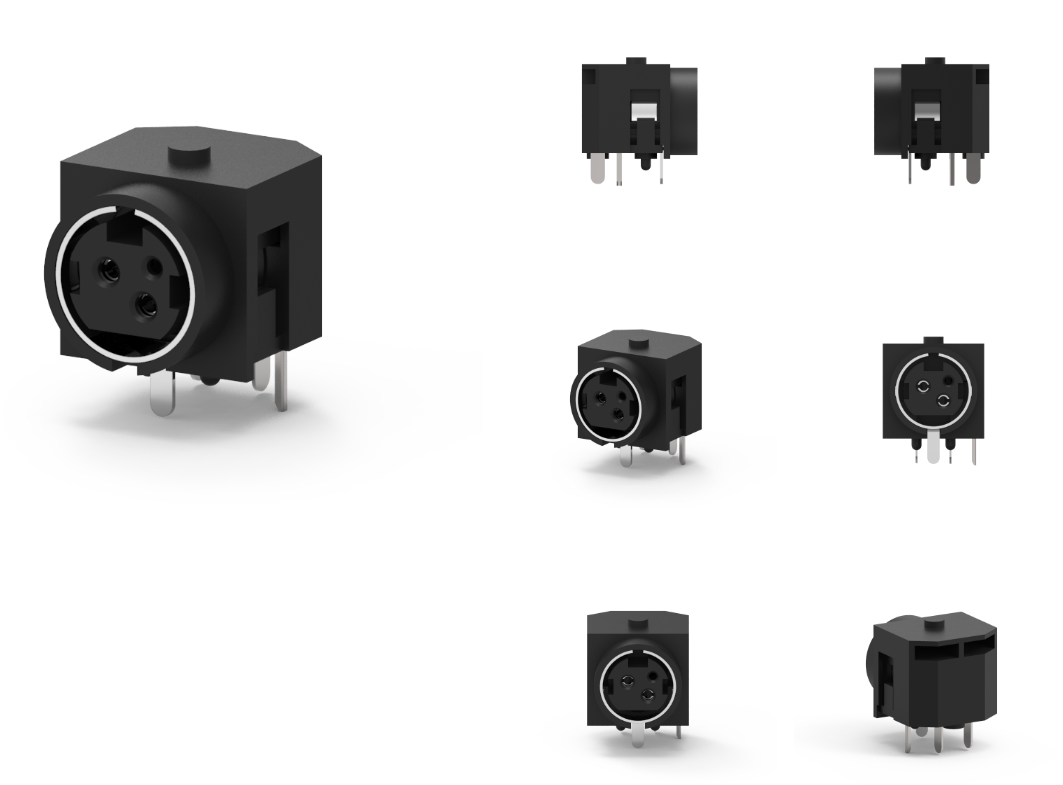

品名：Power DIN 母头90°插板式连接器
1.材料
1-1.外壳：见表A
1-2.触点：磷青铜
1-3.接地：黄铜
1-4.外壳：SPCC
2.完成
2-1.触点：镀镍
2-2. 接地：全部镀镍
2-3.外壳：全部镀锡
3.电气规格：
3-1.额定电流：最大7.5A/DC
3-2.额定电压：最大20V/DC
4.环境：
4-1.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


Power DIN 母头90°插板式连接器是一种特定设计的连接器，广泛用于电力和信号传输应用。这类连接器因其独特的插头设计，适合在空间受限或对高度有要求的应用场景中使用。以下是对 Power DIN 母头90°插板式连接器的详细介绍。

特点
1.90°角设计：
连接器的插头部分呈90°角度，允许在狭小空间中进行安装，方便布线，降低了对设备整体布局的影响。

2.多针脚选项：
通常提供多种针脚配置（如3针、5针、7针等），用户可以根据具体需求选择适合的针脚数量，以满足电力和信号的传输要求。

3.高功率和信号完整性：
设计上可以承载高电流负载，提供稳定的电源连接，同时保持良好的信号传输质量。

4.耐用材料：
通常采用高导电性金属和优质绝缘材料，以确保连接器的耐用性和电气性能。

5.防插反设计：
许多型号具有防插反的特性，避免在安装时产生误连接，增加了使用的安全性。

6.模块化设计：
支持模块化连接，根据需要进行快速、更换与组装，这使得维护更为方便。

应用领域

Power DIN 母头90°插板式连接器在多个行业内的应用非常广泛，包括：

音频和视频设备：
在音频处理设备、混音器等场景中用于信号和电源连接，保持信号的高质量传输。

医疗设备：
用于医疗仪器中的连接，保证设备的供电和数据传输的稳定性。

工业自动化：
在工业设备、控制系统和传感器等中提供稳定的电源和信号连接。

消费电子设备：
在家用电器、音响系统及其他消费电子产品中广泛使用。

通讯设备：
用于基站、网络设备等，确保电力和数据的稳定传输。

安装与维护建议

简单安装：
由于插头设计为90°角，安装时应注意插头与插座的对齐，确保插入顺畅。

定期检查：
定期检查连接器接头，以确保没有松动、腐蚀或氧化，保证电气连接良好。

适用环境：
确保在连接器规格要求的环境中使用，避免高温、高湿度或颗粒物过多的环境，以延长使用寿命。

使用注意：
在插拔连接器时，应避免用力过猛，以免损坏接点和连接器结构。

总结
Power DIN 母头90°插板式连接器是一种功能强大且灵活的连接方案，适用于各种高功率和信号传输的应用。其90°的设计使其在空间有限的环境中表现出色，适合音频、医疗、工业自动化等多个领域。通过正确的安装和定期维护，可以确保其在各种应用中的稳定性和可靠性。如果您有特定的技术需求或其他疑问，欢迎联系技术员！



Product Name: Power DIN Female Head 90 ° Plug in Plate Connector
1. Materials
1-1. Shell: See Table A
1-2. Contact: phosphor bronze
1-3. Grounding: Brass
1-4. Shell: SPCC
2. Complete
2-1. Contact: Nickel plated
2-2.  Grounding: All nickel plated
2-3. Shell: All tin plated
3. Electrical specifications:
3-1. Rated current: Maximum 7.5A/DC
3-2. Rated voltage: Maximum 20V/DC
4. Environment:
4-1. Working temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


The Power DIN female 90 ° plug-in connector is a specially designed connector widely used in power and signal transmission applications. This type of connector is suitable for use in applications with limited space or height requirements due to its unique plug design. The following is a detailed introduction to the Power DIN female 90 ° plug-in connector.

characteristic
1.90 ° angle design:
The plug part of the connector is angled at 90 degrees, allowing installation in narrow spaces, facilitating wiring, and reducing the impact on the overall layout of the equipment.

2. Multi pin options:
Usually, multiple pin configurations are provided (such as 3-pin, 5-pin, 7-pin, etc.), and users can choose the appropriate number of pins according to their specific needs to meet the transmission requirements of power and signals.

3. High power and signal integrity:
Designed to support high current loads, provide stable power connections, and maintain good signal transmission quality.

4. Durable materials:
High conductivity metals and high-quality insulation materials are usually used to ensure the durability and electrical performance of connectors.

5. Anti reverse insertion design:
Many models have the feature of anti reverse insertion, which avoids misconnection during installation and increases the safety of use.

6. Modular design:
Support modular connections for quick replacement and assembly as needed, making maintenance more convenient.

application area

Power DIN female head 90 ° plug-in connectors are widely used in multiple industries, including:

Audio and video equipment:
Used for signal and power connections in audio processing equipment, mixers, and other scenarios to maintain high-quality signal transmission.

Medical equipment:
Used for connection in medical instruments to ensure the stability of equipment power supply and data transmission.

Industrial automation:
Provide stable power and signal connections in industrial equipment, control systems, and sensors.

Consumer electronic devices:
Widely used in household appliances, audio systems, and other consumer electronics products.

Communication equipment:
Used for base stations, network equipment, etc., to ensure stable transmission of power and data.

Installation and maintenance recommendations

Simple installation:
Due to the 90 ° angle design of the plug, attention should be paid to aligning the plug with the socket during installation to ensure smooth insertion.

Regular inspection:
Regularly inspect connector joints to ensure they are not loose, corroded, or oxidized, and to ensure good electrical connections.

Applicable environment:
Ensure that it is used in the environment required by the connector specifications, avoiding environments with high temperature, high humidity, or excessive particulate matter to extend its service life.

Usage precautions:
When plugging or unplugging connectors, excessive force should be avoided to avoid damaging the contacts and connector structure.

summary
The Power DIN female 90 ° plug-in connector is a powerful and flexible connection solution suitable for various high-power and signal transmission applications. Its 90 ° design allows it to perform well in environments with limited space, making it suitable for multiple fields such as audio, medical, and industrial automation. By proper installation and regular maintenance, its stability and reliability can be ensured in various applications. If you have specific technical requirements or other questions, please feel free to contact a technician!
