KSD-PD-04F2-26-11

KSD-PD-04F2-26-11

  • 产品特性
  • 应用范围

图纸下载 样品申请

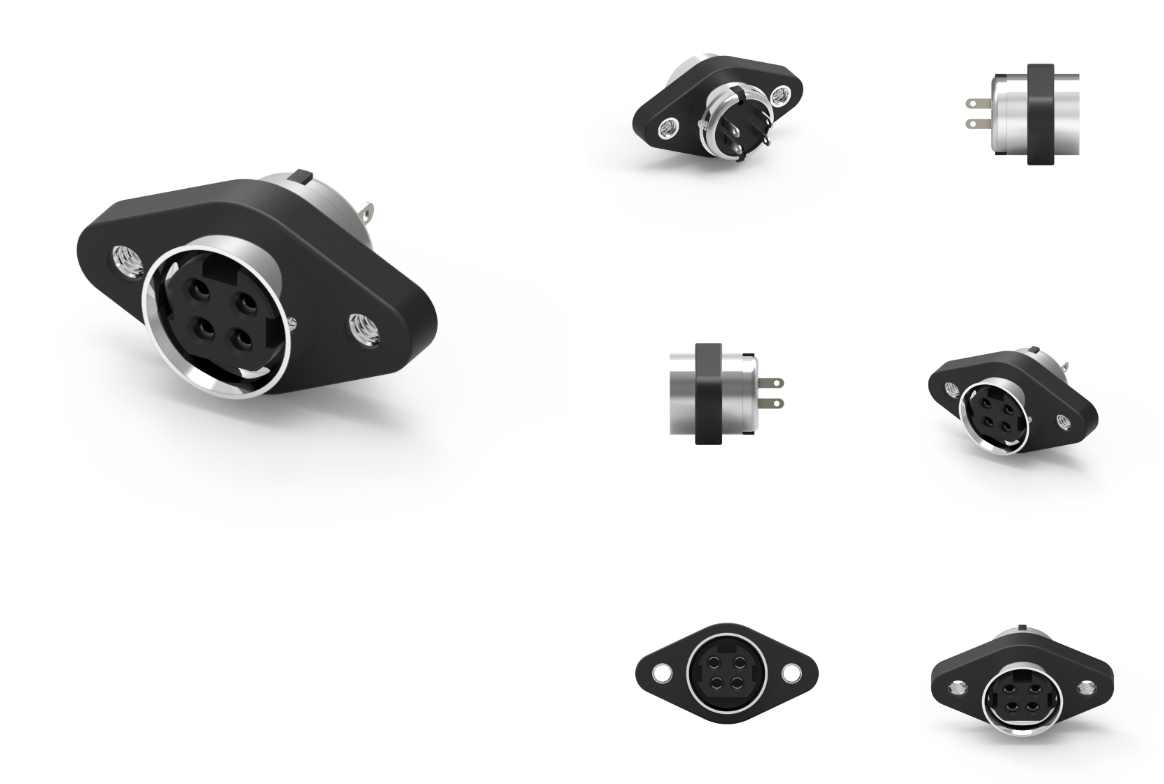

品名：Power DIN 母头面板安装焊线式连接器
注：
1.材料：
1-1. 外壳：PBT UL94V-0；颜色：黑色
1-2.触点：磷青铜
1-3.外壳：黄铜
1-4.后盖：PBT UL94V-0；颜色：黑色
1-5.垫圈：黄铜
2.电镀：
2-1.联系方式：镀镍60u“
2-2.外壳：整体镀镍60u“~100u”
3.电气规格：
3-1.额定电流：P1~2-7.5A/P3-1A
3-2. 额定电压最大20v/DC
4.环境：
4-1.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


Power DIN 母头面板安装焊线式连接器是一种常见的电源和信号连接解决方案，通常用于将连接器稳固地固定在设备面板上，并通过焊接方式与电缆连接。这种连接器在电子设备、通信、音频设备和工业自动化等领域有广泛应用。以下是对其特点、应用及安装维护的详细介绍。

特点
1.面板安装设计：
该连接器可以方便地安装在设备的面板上，通常使用螺丝或卡扣固定，确保稳固的安装，提供良好的机械支持。

2.焊线式连接：
焊接连接方式确保了高导电性和稳定性，焊线过程要求将电缆的导线焊接到连接器的引脚上，提供坚固可靠的连接。

3.多针脚配置：
Power DIN 连接器通常提供多种针脚配置（如3针、5针、7针等），可以根据具体设备的电源和信号需求进行选择。

4.耐用性和可靠性：
一般采用优质材料（如镀金或镀银的金属接点），具有良好的耐腐蚀性和导电性能，确保在长期使用中的稳定性和可靠性。

5.兼容性和标准化：
Power DIN 连接器通常符合国际标准，使其具有良好的互换性，适用于多种设备。

应用领域

Power DIN 母头面板安装焊线式连接器在各个行业中有着广泛的应用，包括：

音频设备：
用于调音台、音频播放器、乐器等设备，确保高质量的音频信号传输和可靠的电源连接。

工业设备：
在自动化系统、传感器、执行器等应用中，用于电源和信号控制，提供稳健的连接解决方案。

通信设备：
适用于网络设备和通信系统中，支持数据和电源的传输。

医疗器械：
用于医疗设备，确保稳定的电源和信号供应，保障医疗操作的安全和准确性。

安装与维护建议

焊接注意事项：
在焊接时要确保温度和时间控制得当，避免过高的热量损坏连接器或导线。确保焊接质量良好，避免冷焊或虚焊现象。

固定安装：
在固定连接器时，确保螺栓或锁扣紧固，避免因设备振动导致连接器松动。

选择合适线材：
根据连接器类型和应用需求选择合适的电缆和导线，以确保最佳连接性能。

定期检查：
定期进行检查，确保连接器及其焊点没有腐蚀、损坏或松动。保持连接器的清洁，避免灰尘和污染物进入。

环境适应性：
确保连接器在推荐的环境条件下使用，避免极端温度、湿度和污染物对连接器性能的影响。

总结
Power DIN 母头面板安装焊线式连接器以其可靠的电气性能和稳固的结构，广泛应用于各种设备和系统中。通过适当的安装和维护，可以确保连接器在电源和信号传输中的高效运行，满足多种工业和商业需求。如果您有特定的技术需求或其他疑问，欢迎联系技术员！



Product Name: Power DIN Female Head Panel Installation Solder Wire Connector
Note:
1. Materials:
1-1.  Shell: PBT UL94V-0; Color: Black
1-2. Contact: phosphor bronze
1-3. Shell: Brass
1-4. Rear cover: PBT UL94V-0; Color: Black
1-5. Gasket: Brass
2. Electroplating:
2-1. Contact information: Nickel plated 60u“
2-2. Shell: Whole nickel plated 60u "~100u"
3. Electrical specifications:
3-1. Rated current: P1~2-7.5A/P3-1A
3-2.  Maximum rated voltage 20v/DC
4. Environment:
4-1. Working temperature: -20 ℃~85 ℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


Power DIN female head panel mounted wire connectors are a common solution for power and signal connection, typically used to securely fix the connectors to equipment panels and connect them to cables through welding. This type of connector is widely used in fields such as electronic devices, communication, audio equipment, and industrial automation. The following is a detailed introduction to its characteristics, applications, and installation and maintenance.

characteristic
1. Panel installation design:
This connector can be easily installed on the panel of the device, usually fixed with screws or buckles to ensure a stable installation and provide good mechanical support.

2. Solder wire connection:
The welding connection method ensures high conductivity and stability, and the welding process requires the wires of the cable to be welded to the pins of the connector to provide a sturdy and reliable connection.

3. Multi pin configuration:
Power DIN connectors typically offer multiple pin configurations (such as 3-pin, 5-pin, 7-pin, etc.), which can be selected based on the specific power and signal requirements of the device.

4. Durability and reliability:
Generally, high-quality materials (such as gold-plated or silver plated metal contacts) are used, which have good corrosion resistance and conductivity, ensuring stability and reliability in long-term use.

5. Compatibility and standardization:
Power DIN connectors typically comply with international standards, making them highly interchangeable and suitable for a variety of devices.

application area

Power DIN female head panel mounted wire connectors have a wide range of applications in various industries, including:

Audio equipment:
Used for mixing consoles, audio players, musical instruments, and other equipment to ensure high-quality audio signal transmission and reliable power connections.

Industrial equipment:
Used for power and signal control in automation systems, sensors, actuators, and other applications, providing robust connectivity solutions.

Communication equipment:
Suitable for network devices and communication systems, supporting the transmission of data and power.

medical apparatus and instruments:
Used for medical equipment to ensure stable power and signal supply, ensuring the safety and accuracy of medical operations.

Installation and maintenance recommendations

Welding precautions:
Ensure proper temperature and time control during welding to avoid excessive heat damaging connectors or wires. Ensure good welding quality and avoid cold welding or virtual welding.

Fixed installation:
When fixing the connector, ensure that the bolts or locks are tightened to avoid loosening the connector due to equipment vibration.

Choose the appropriate wire:
Select appropriate cables and wires based on connector type and application requirements to ensure optimal connection performance.

Regular inspection:
Regularly inspect to ensure that the connectors and their solder joints are not corroded, damaged, or loose. Keep the connector clean to prevent dust and contaminants from entering.

Environmental adaptability:
Ensure that the connector is used under recommended environmental conditions, avoiding the impact of extreme temperature, humidity, and pollutants on connector performance.

summary
Power DIN female head panel mounted wire connectors are widely used in various equipment and systems due to their reliable electrical performance and stable structure. By proper installation and maintenance, connectors can ensure efficient operation in power and signal transmission, meeting various industrial and commercial needs. If you have specific technical requirements or other questions, please feel free to contact a technician!
