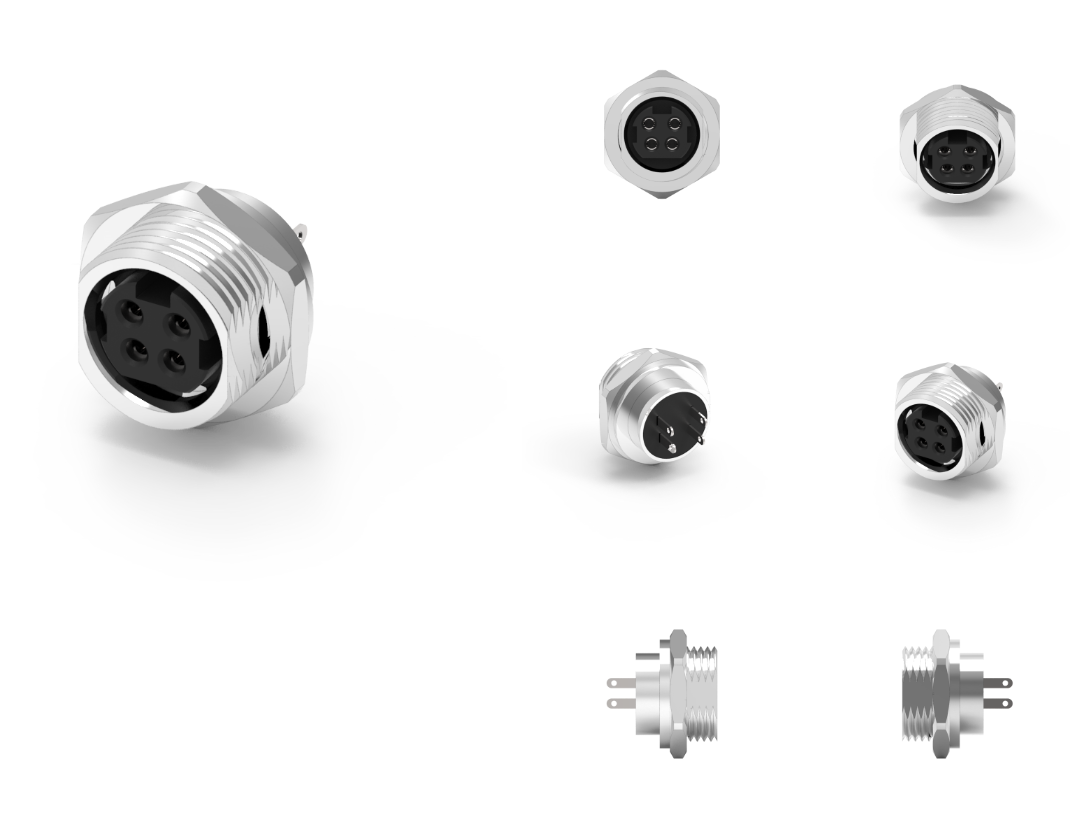

品名：Power DIN 母头前锁焊线式连接器
1.材料
1-1.外壳：PBT UL94V-0；颜色：黑色
1-2.触点：磷青铜
1-3.外壳：黄铜
1-4.螺钉：黄铜
2.完成：
2-1.触点：镀锡或镀镍
2-2.外壳：整体镀镍60u“~100u”
2-3.螺钉：整体镀镍60u“~100u”
3.电气规格：
3-1.额定电流：3针7.5A&1A（引脚3）；4针7.5A
3-2.额定电压：最大20V/DC
4.环境：
4-1.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


Power DIN 母头前锁焊线式连接器是一种连接器，通常应用于电力连接和信号传输，特别是在音频、通信和工业设备中。这种连接器的设计特点是前锁结构，能够提供额外的机械固定和安全性，同时采用焊线的方式与电缆连接。

特点
1.前锁设计：
前锁结构可以增强连接器在使用中的稳定性，防止连接器因振动或外力而松动。这种设计使得连接器在插入后能够更牢固地固定住，降低脱落的风险。

2.焊线连接：
采用焊线的连接方式，提供可靠的电气接触。焊接可以确保电缆与连接器引脚之间的低接触电阻，提高连接的稳定性和耐用性。

3.多样的针脚配置：
Power DIN 母头连接器通常依据不同应用提供多样的针脚配置（如3针、5针、7针等），可以灵活应对各种电源和信号需求。

4.耐用材料：
通常使用高质量的金属和塑料材料，具有良好的耐腐蚀性、耐磨损性，并可承受工业环境的恶劣条件。

5.标准化和兼容性：
遵循国际标准，使得此类连接器具有广泛的互换性，便于与其他设备和连接器搭配使用。

应用领域

Power DIN 母头前锁焊线式连接器常见于以下应用领域：

音频设备：
用于调音台、专业音响设备和乐器，确保高质量的音频信号传输和稳定的电源供应。

工业自动化：
在控制系统、传感器、和执行器等应用中，提供可靠的信号和电源连接。

通信设备：
用于网络设备和通信模块，确保数据和电源的高效传输。

医疗设备：
用于各种医疗器械，确保信号传输的准确性和电源供给的安全性。

安装与维护建议

焊接质量：
在焊接过程中，确保温度控制适当，避免过高的温度造成连接器或导线受损。保证焊接点清洁，确保良好的电气接触。

前锁固定：
在连接器安装时，确保前锁机制完全锁定，以提高连接的稳定性。安装后，检查连接器是否牢固。

定期检查：
定期对连接器进行检查，确保没有腐蚀、磨损或物理损坏，并保持连接器的清洁。

电缆选择：
根据连接器的规格选择合适的电缆，确保电缆能够承受所需的电流和电压，并与连接器兼容。

环境适应性：
避免在超过连接器额定参数的极端环境下使用，确保连接器能够在预期的环境条件下正常工作。

总结
Power DIN 母头前锁焊线式连接器以其可靠性、稳定性以及广泛的应用范围而受到青睐。通过适当的安装和日常维护，可以确保连接器在电源和信号传输中的最佳性能，满足工业和商业设备的需求。如果您有特定的技术需求或其他疑问，欢迎联系技术员！



Product Name: Power DIN Female Head Front Lock Solder Wire Connector
1. Materials
1-1. Shell: PBT UL94V-0； Color: Black
1-2. Contact: phosphor bronze
1-3. Shell: Brass
1-4. Screw: brass
2. Complete:
2-1. Contact: Tin plated or nickel plated
2-2. Shell: Whole nickel plated 60u "~100u"
2-3. Screw: Whole nickel plated 60u "~100u"
3. Electrical specifications:
3-1. Rated current: 3-pin 7.5A&1A (pin 3); 4-pin 7.5A
3-2. Rated voltage: Maximum 20V/DC
4. Environment:
4-1. Working temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


Power DIN female head front locking wire connector is a type of connector commonly used for power connection and signal transmission, especially in audio, communication, and industrial equipment. The design feature of this connector is the front lock structure, which can provide additional mechanical fixation and safety, and is connected to the cable by soldering.

characteristic
1. Front lock design:
The front lock structure can enhance the stability of the connector during use, preventing the connector from loosening due to vibration or external forces. This design enables the connector to be more securely fixed after insertion, reducing the risk of detachment.

2. Solder wire connection:
Using wire bonding connection method to provide reliable electrical contact. Welding can ensure low contact resistance between cables and connector pins, improving the stability and durability of the connection.

3. Diverse pin configurations:
Power DIN female connectors typically offer a variety of pin configurations (such as 3-pin, 5-pin, 7-pin, etc.) based on different applications, which can flexibly meet various power and signal requirements.

4. Durable materials:
High quality metal and plastic materials are usually used, which have good corrosion resistance, wear resistance, and can withstand harsh conditions in industrial environments.

5. Standardization and compatibility:
Following international standards, this type of connector has wide interchangeability, making it easy to use with other devices and connectors.

application area

Power DIN female head front locking wire connectors are commonly used in the following application areas:

Audio equipment:
Used for mixing consoles, professional audio equipment, and musical instruments to ensure high-quality audio signal transmission and stable power supply.

Industrial automation:
Provide reliable signal and power connections in applications such as control systems, sensors, and actuators.

Communication equipment:
Used for network devices and communication modules to ensure efficient transmission of data and power.

Medical equipment:
Used for various medical devices to ensure the accuracy of signal transmission and the safety of power supply.

Installation and maintenance recommendations

Welding quality:
During the welding process, ensure proper temperature control to avoid damage to connectors or wires caused by excessively high temperatures. Ensure the cleanliness of welding points and ensure good electrical contact.

Front lock fixation:
When installing the connector, ensure that the front locking mechanism is fully locked to improve the stability of the connection. After installation, check if the connector is secure.

Regular inspection:
Regularly inspect the connectors to ensure there is no corrosion, wear, or physical damage, and maintain the cleanliness of the connectors.

Cable selection:
Select the appropriate cable according to the specifications of the connector, ensuring that the cable can withstand the required current and voltage, and is compatible with the connector.

Environmental adaptability:
Avoid using the connector in extreme environments that exceed its rated parameters, ensuring that the connector can function properly under expected environmental conditions.

summary
The Power DIN female head front locking wire connector is favored for its reliability, stability, and wide range of applications. By proper installation and daily maintenance, the optimal performance of connectors in power and signal transmission can be ensured, meeting the needs of industrial and commercial equipment. If you have specific technical requirements or other questions, please feel free to contact a technician!
