KSD-SPD-04M3-01

KSD-SPD-04M3-01

  • 产品特性
  • 应用范围

图纸下载 样品申请

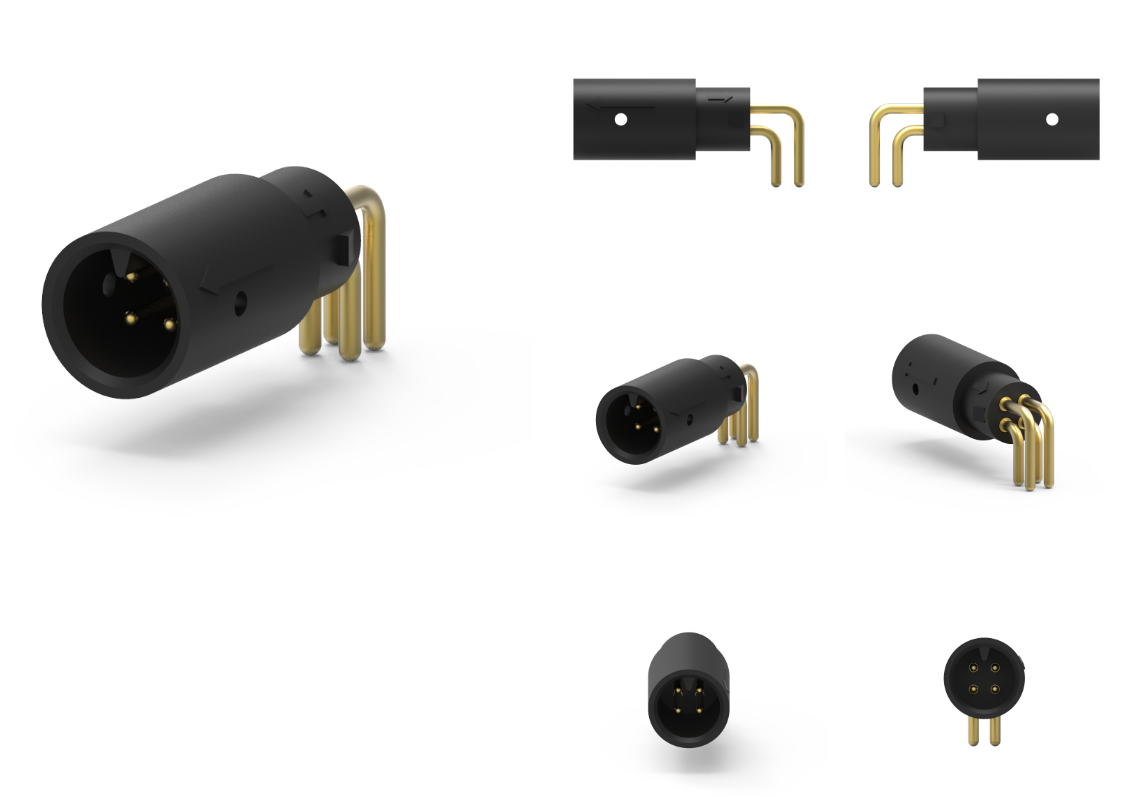

品名：Special Power DIN 公头90°插板式连接器
1.材料
1-1. 外壳：PBT UL94V-0；颜色：黑色
1-2.触点：黄铜
2完成：
2-1.触点：金色闪光
3环境：
3-1.0工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞



Special Power DIN 公头90°插板式连接器是一种设计独特的连接器，常用于需要紧凑布局的电气和电子设备中。这种连接器的特点是直角插入设计，使得在空间有限的情况下仍能实现可靠的电气连接。以下是关于这种连接器的详细信息。

特点
1.90°插头设计：
90°的插头设计允许连接器在有限空间内使用，减少了线缆的弯曲和拉力，同时优化了布线布局。

2.高电流承载能力：
根据设计配备合适的针脚和材料，能够承载高电流，通常适合用于电源和高功率设备。

3.多种针脚配置：
提供多种针脚配置（如3针、5针、7针等），根据用户的具体需求，方便进行电源和信号的连接。

4.坚固耐用：
通常采用高质量的材料制造，具备良好的耐磨损性和耐腐蚀性，适合在各种工作环境中使用。

5.镀金接触：
通常采用镀金或镀银的接触结构，以减少接触电阻，提高信号传输的质量和稳定性。

应用领域

Special Power DIN 公头90°插板式连接器在多个领域有广泛的应用，包括：

音频设备：
在专业音响、乐器和音频处理设备中，确保电源和音频信号的稳定传输。

工业自动化：
用于连接各种控制设备、传感器和执行器，确保电力和信号的可靠传递。

通信设备：
适用于路由器、交换机和其他通信设备，提供坚固的电源和数据连接。

医疗设备：
在医疗仪器及监测设备中，有助于保证信号的准确性及电源的稳定性。

安装与维护建议

1.确保正确的配置：
在选择连接器时，确保选择合适的针脚配置和电流等级，以适配设备的需求。

2.保持清洁：
确保插头和插座的接触点清洁，避免污垢或氧化物影响信号传输质量。

3.避免过载：
使用时要确保连接器的电流和电压未超过其额定值，以防损坏连接器。

4.检查连接性：
安装后，定期检查连接器的接触性，确保无松动或损坏现象。

5.安全使用：
遵循所有的安全指南和操作说明，以减少在使用过程中的风险。

总结
Special Power DIN 公头90°插板式连接器以其独特的设计和可靠的性能，在众多电子应用领域中发挥着重要作用。选择合适的连接器并定期维护，可以确保系统的高效运行和稳定性能。如果您有特定的技术需求或其他疑问，欢迎联系技术员！



Product Name: Special Power DIN Male 90 ° Plug in Plate Connector
1. Materials
1-1.  Shell: PBT UL94V-0； Color: Black
1-2. Contact: Brass
2 Completed:
2-1. Contact: Gold Flash
3 Environment:
3-1.0 Operating temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China



The Special Power DIN male 90 ° plug-in connector is a uniquely designed connector commonly used in electrical and electronic devices that require a compact layout. The characteristic of this connector is its right angle insertion design, which enables reliable electrical connections even in limited space. The following is detailed information about this type of connector.

characteristic
1.90 ° plug design:
The 90 ° plug design allows the connector to be used in limited space, reducing cable bending and tension while optimizing wiring layout.

2. High current carrying capacity:
Equipped with appropriate pins and materials according to the design, capable of carrying high currents, usually suitable for power supplies and high-power devices.

3. Multiple pin configurations:
Provide multiple pin configurations (such as 3-pin, 5-pin, 7-pin, etc.) to facilitate power and signal connections according to specific user needs.

4. Durable and sturdy:
Usually made of high-quality materials with good wear resistance and corrosion resistance, suitable for use in various working environments.

5. Gold plated contact:
Usually, gold or silver plated contact structures are used to reduce contact resistance and improve the quality and stability of signal transmission.

application area

Special Power DIN male 90 ° plug-in connectors have a wide range of applications in multiple fields, including:

Audio equipment:
Ensure stable transmission of power and audio signals in professional audio, musical instruments, and audio processing equipment.

Industrial automation:
Used to connect various control devices, sensors, and actuators to ensure reliable transmission of power and signals.

Communication equipment:
Suitable for routers, switches, and other communication devices, providing robust power and data connections.

Medical equipment:
In medical instruments and monitoring equipment, it helps to ensure the accuracy of signals and the stability of power supply.

Installation and maintenance recommendations

1. Ensure correct configuration:
When selecting connectors, make sure to choose the appropriate pin configuration and current level to meet the needs of the device.

2. Keep clean:
Ensure that the contact points of the plug and socket are clean to avoid dirt or oxides affecting the quality of signal transmission.

3. Avoid overload:
When using, make sure that the current and voltage of the connector do not exceed its rated value to prevent damage to the connector.

4. Check connectivity:
After installation, regularly check the contact of the connector to ensure there is no looseness or damage.

5. Safe use:
Follow all safety guidelines and operating instructions to reduce risks during use.

summary
Special Power DIN male 90 ° plug-in connectors play an important role in numerous electronic applications due to their unique design and reliable performance. Choosing appropriate connectors and maintaining them regularly can ensure the efficient operation and stable performance of the system. If you have specific technical requirements or other questions, please feel free to contact a technician!
