KSD-SPD-04M2-09-01

KSD-SPD-04M2-09-01

  • 产品特性
  • 应用范围

图纸下载 样品申请

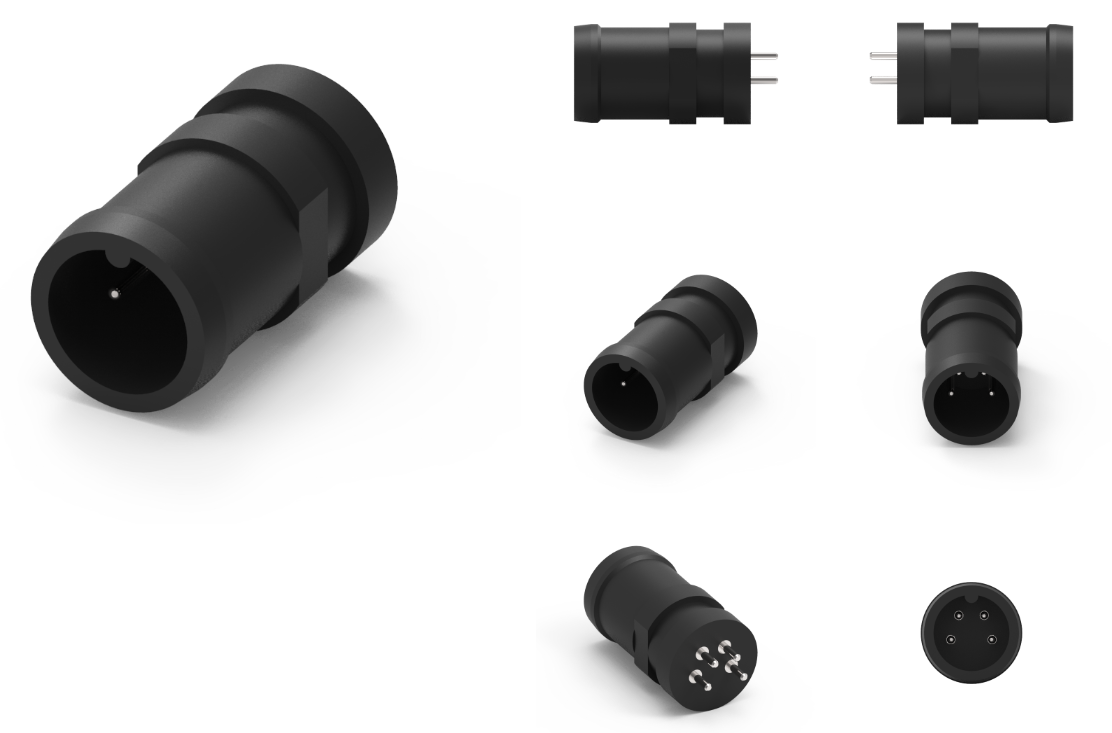

品名：Special Power DIN 公头线端成型式连接器
1.材料：
1-1.外壳：见表A
1-2.触点：黄铜
2.完成：
2-1.联系方式：银色30u”
3.电气规格：
3-1.额定电流：1A
3-2.额定电压：30V
4.环境
4-1.0工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


Special Power DIN 公头线端成型式连接器 是一种特定设计的连接器，广泛用于各种电力传输和信号连接应用中。以下是对这种连接器的详细介绍，包括其特征、应用及相关优势。

特征
1.设计结构：
该连接器的“公头”端设计用于与“母头”端连接，通常具有坚固的机械结构和可靠的电气传输能力。

线端成型式意味着连接器设计允许直接在电缆末端进行焊接或固定，形成稳固的连接。

2.多样性：
有多种针脚配置可供选择（如3针、5针、7针等），可根据具体应用需求进行定制。

3.高导电性：
通常使用高质量的金属材料（如镀金、镀银等）以提高导电性和耐腐蚀性，确保长期稳定的电气连接。

4.耐用性：
制造材料具备很强的机械强度和耐磨性，使得连接器能够承受各种外部环境影响，包括高温、低温和湿气。

应用领域

1.工业设备：
经常用于工业自动化设备中的电力传输和信号连接，如传感器、控制器和执行器。

2.音频设备：
在音频设备（如调音台、扩音器等）中用作音频信号的连接，保证信号传输的清晰度和稳定性。

3.医疗设备：
用于各种医疗仪器和设备，确保安全和可靠的电力供应及信号连接。

4.通信设备：
在网络设备和通信基站中使用，保证信息传递的快捷和准确。

安装与维护建议

1.焊接注意事项：
在进行焊接时，确保使用合适的温度和配件，避免焊接过热导致的连接器或电缆损坏。

2.检查极性：
确保连接器的极性在连接时正确，以防止设备的短路或故障。

3.定期维护：
定期检查连接器的接触情况，确保没有灰尘或氧化物积聚，以保持良好的接触性能。

4.避免过载：
注意连接器的额定电流和电压，切勿超出其工作范围，以保障安全和使用寿命。

总结
Special Power DIN 公头线端成型式连接器 是一种高效、可靠的连接解决方案，适用于各类电子设备和系统。适当的安装和维护将有助于延长其使用寿命并确保设备的正常运行。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！



Product Name: Special Power DIN Male End Forming Connector
1. Materials:
1-1. Shell: See Table A
1-2. Contact: Brass
2. Complete:
2-1. Contact Information: Silver 30u
3. Electrical specifications:
3-1. Rated current: 1A
3-2. Rated voltage: 30V
4. Environment
4-1.0 Operating temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


Special Power DIN male end molded connector is a specially designed connector widely used in various power transmission and signal connection applications. The following is a detailed introduction to this connector, including its features, applications, and related advantages.

features
1. Design structure:
The "male" end of the connector is designed to connect with the "female" end and typically has a sturdy mechanical structure and reliable electrical transmission capability.

Wire end molding means that the connector design allows for direct welding or fixing at the end of the cable, forming a stable connection.

2. Diversity:
There are multiple pin configurations to choose from (such as 3-pin, 5-pin, 7-pin, etc.), which can be customized according to specific application needs.

3. High conductivity:
High quality metal materials such as gold plating, silver plating, etc. are usually used to improve conductivity and corrosion resistance, ensuring long-term stable electrical connections.

4. Durability:
Manufacturing materials have strong mechanical strength and wear resistance, allowing connectors to withstand various external environmental influences, including high temperature, low temperature, and moisture.

application area

1. Industrial equipment:
Often used for power transmission and signal connection in industrial automation equipment, such as sensors, controllers, and actuators.

2. Audio equipment:
Used as a connection for audio signals in audio devices such as mixing consoles, amplifiers, etc., to ensure clarity and stability of signal transmission.

3. Medical equipment:
Used for various medical instruments and equipment to ensure safe and reliable power supply and signal connection.

4. Communication equipment:
Used in network devices and communication base stations to ensure fast and accurate information transmission.

Installation and maintenance recommendations

1. Welding precautions:
When welding, make sure to use the appropriate temperature and accessories to avoid connector or cable damage caused by overheating during welding.

2. Check polarity:
Ensure that the polarity of the connector is correct during connection to prevent short circuits or malfunctions of the equipment.

3. Regular maintenance:
Regularly check the contact condition of the connector to ensure that there is no accumulation of dust or oxides, in order to maintain good contact performance.

4. Avoid overload:
Pay attention to the rated current and voltage of the connector, and do not exceed its working range to ensure safety and service life.

summary
The Special Power DIN male end molded connector is an efficient and reliable connection solution suitable for various electronic devices and systems. Proper installation and maintenance will help extend its service life and ensure the normal operation of the equipment. If you have further questions or need specific technical parameters, please feel free to contact the technician!
